Advantages and Features
  • Reinforced heavy-duty mulcher with:

    • Double frame: 5 + 4 mm

    • Side walls: 8 mm

    • Rotor: Ø160 × 10 mm

  • 1200g unbreakable hammers, ideal for grass and branches up to 8 cm

  • Innovative linkage system for extended side shift

  • Italian “Comer” gearbox with overrunning clutch

  • Long-life SKF bearings

  • Double upper housing reinforcement

  • Rear adjustable collecting blades

  • 1 rear door – mechanical or hydraulic (optional)

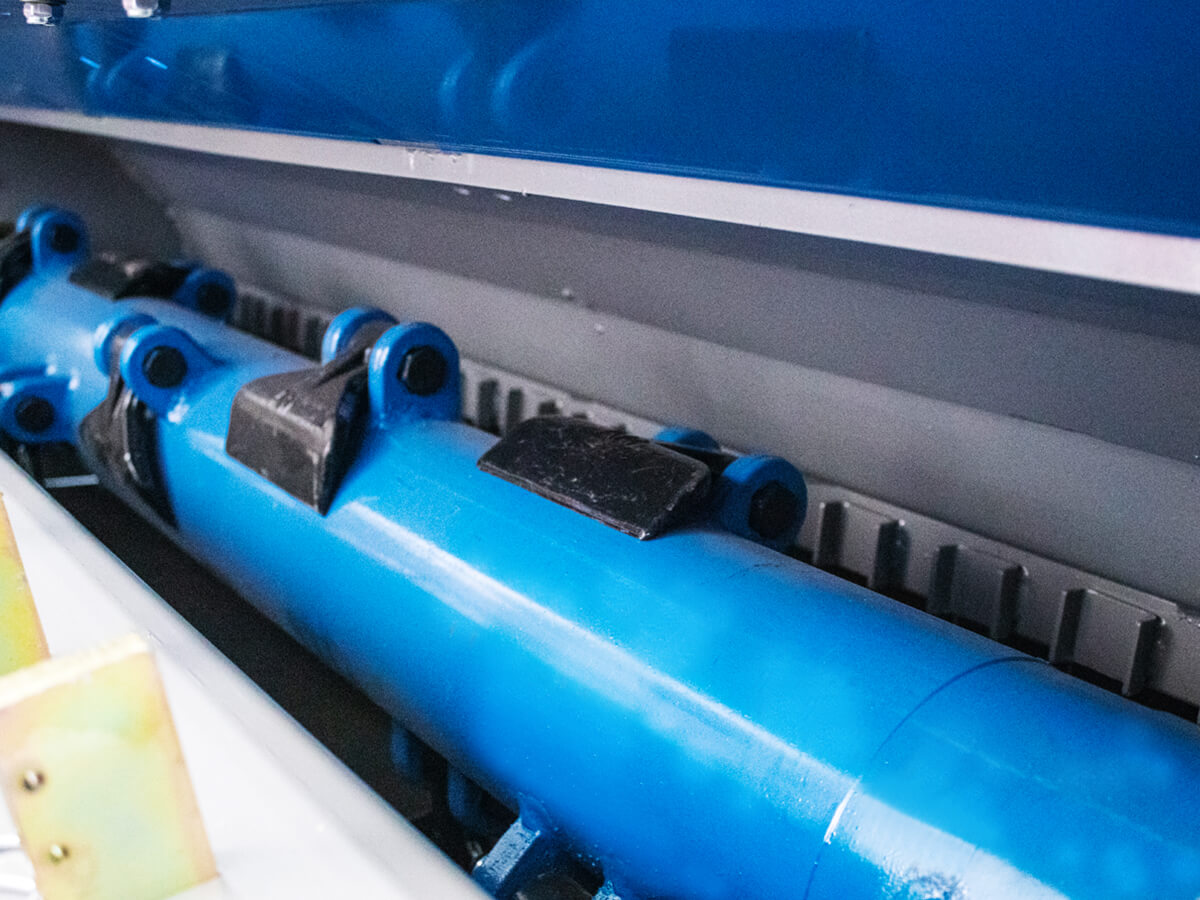

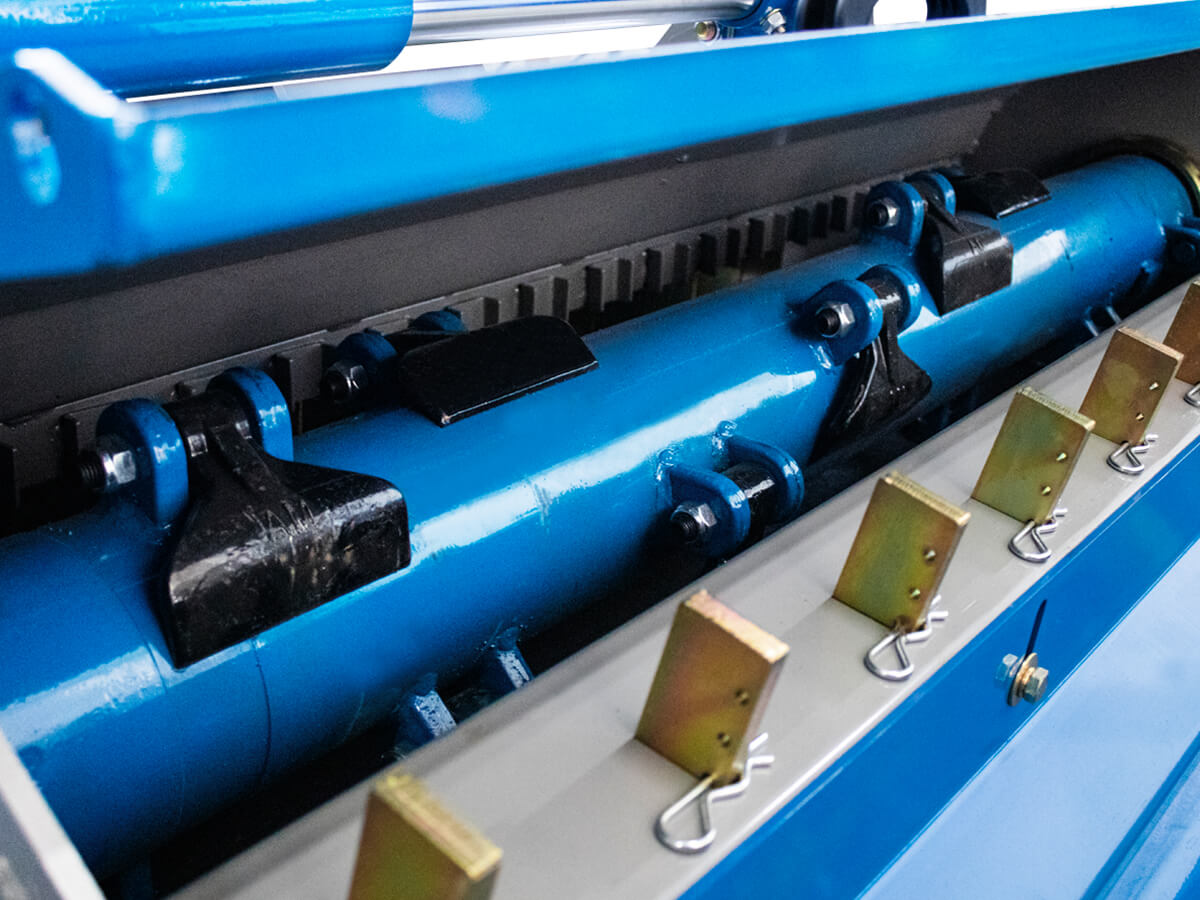

  • Digitally balanced rotor with two helical rows of:

    • Hammers (standard)

    • Knives (optional)

  • Front metal protection flaps

  • Internal toothed counter-blade for finer shredding

  • Adjustable working height via side skids

  • Rear adjustable roller with scraper

  • Power transmission via 5 toothed belts with external tensioner

  • Integrated parking stand

  • Three-point hitch, category I–II (ø 25.0–22.0 mm / 28.0 mm)

  • European CE safety certification

???? PTO shaft T5-100 with plastic guard included in the price

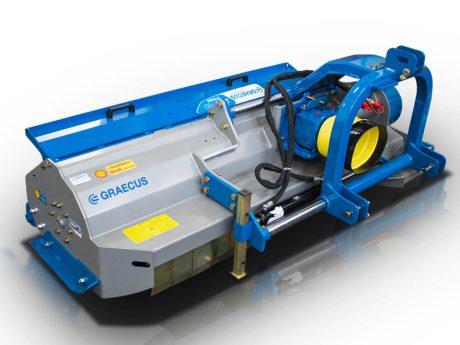

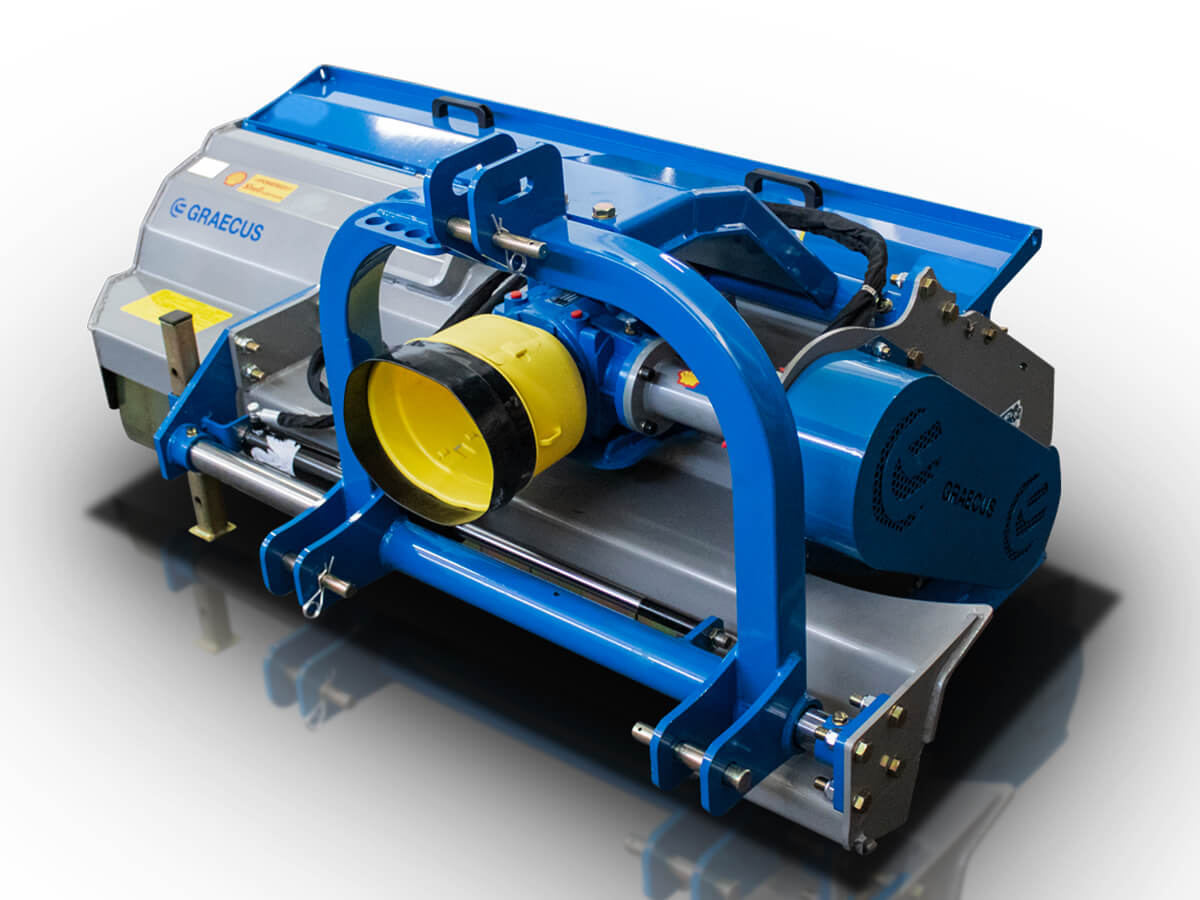

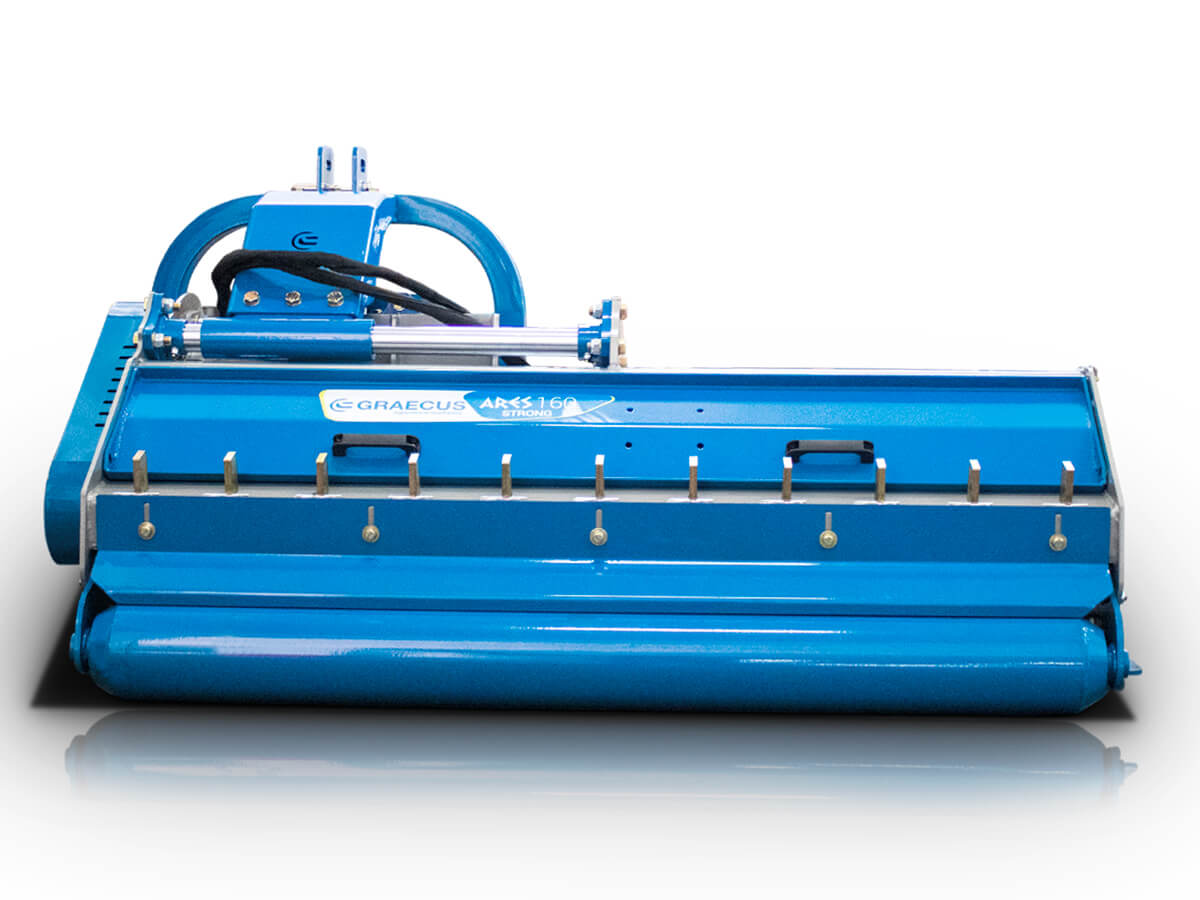

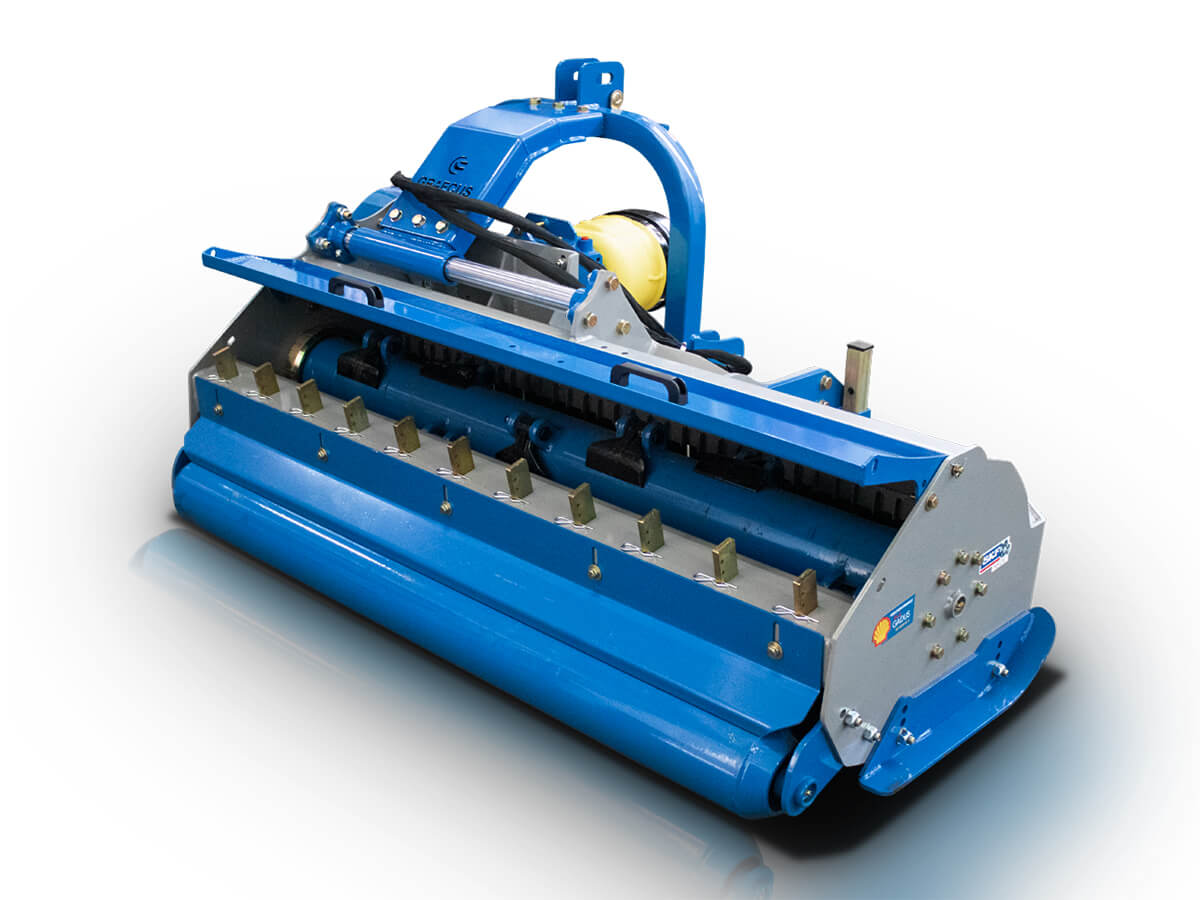

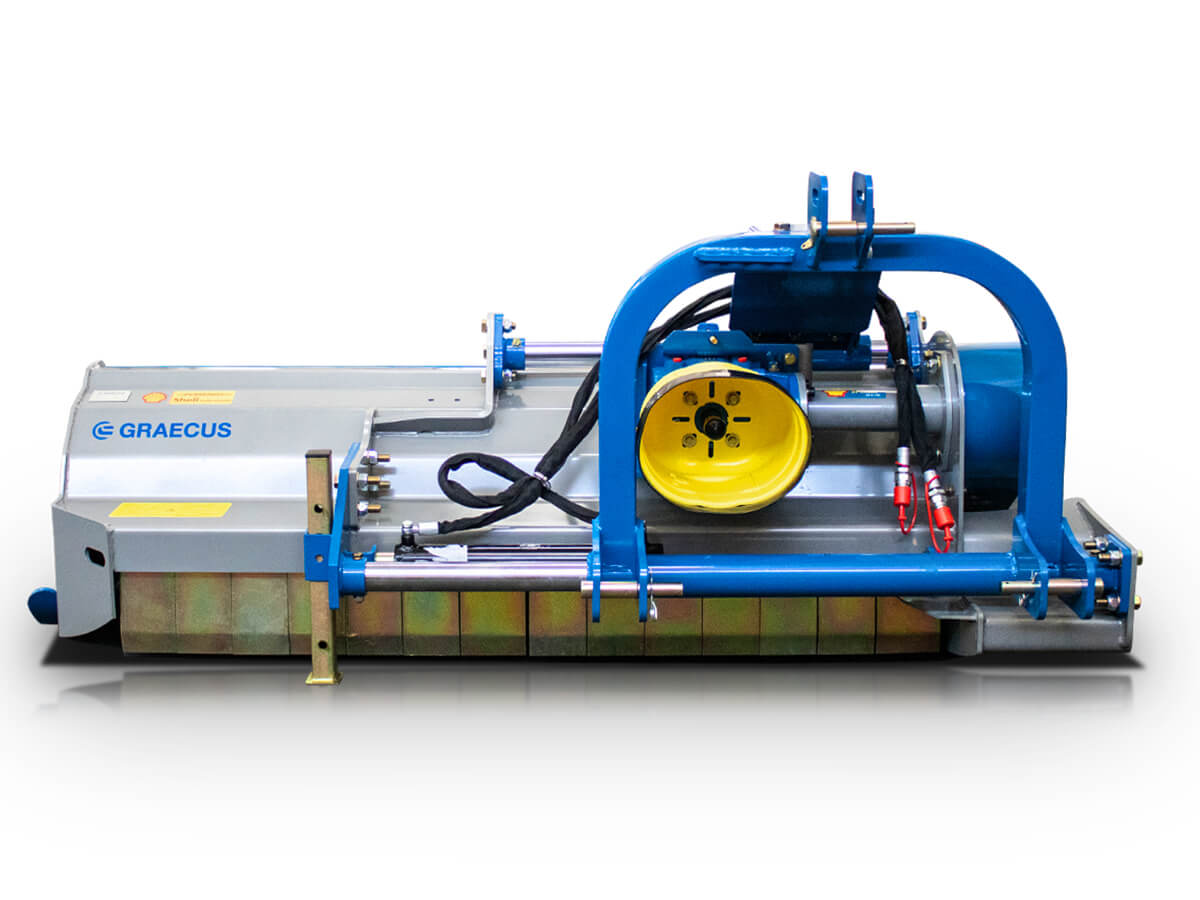

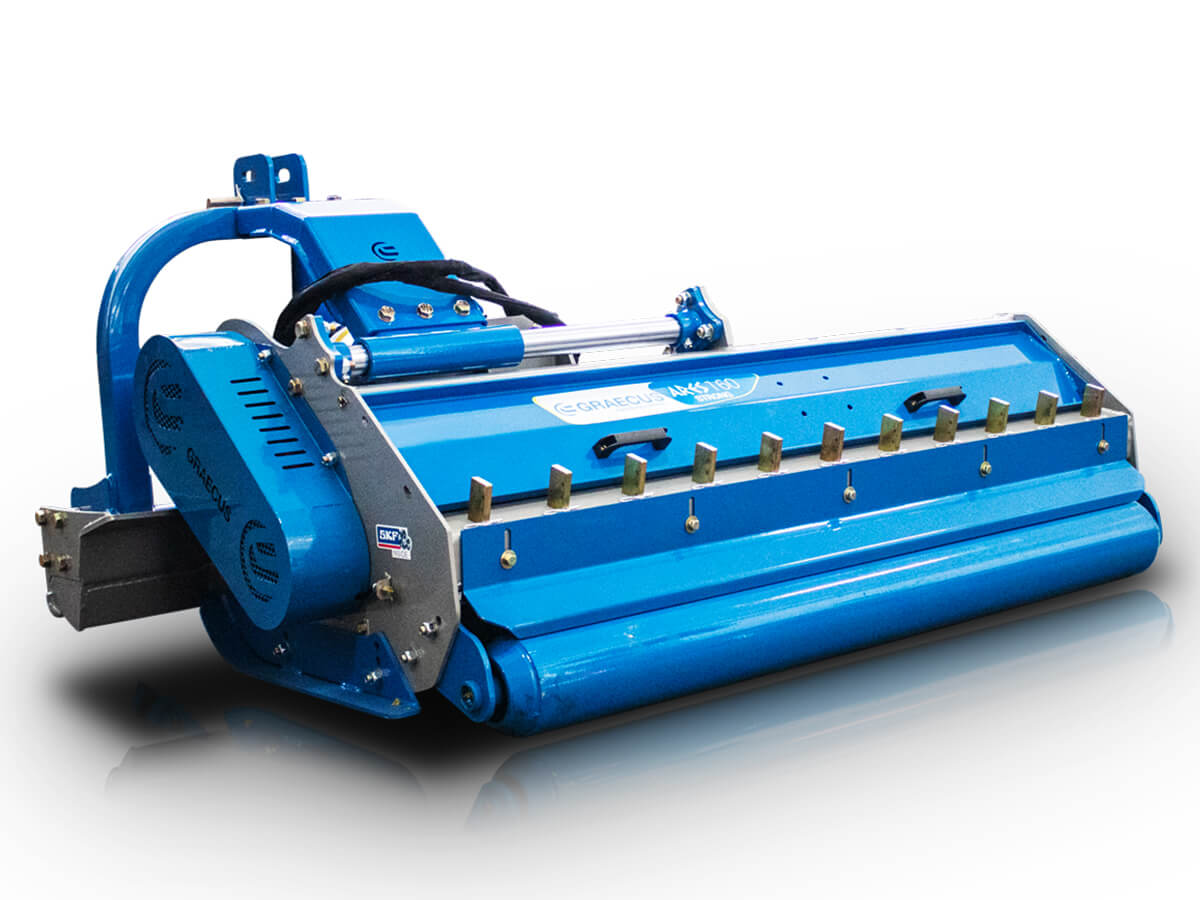

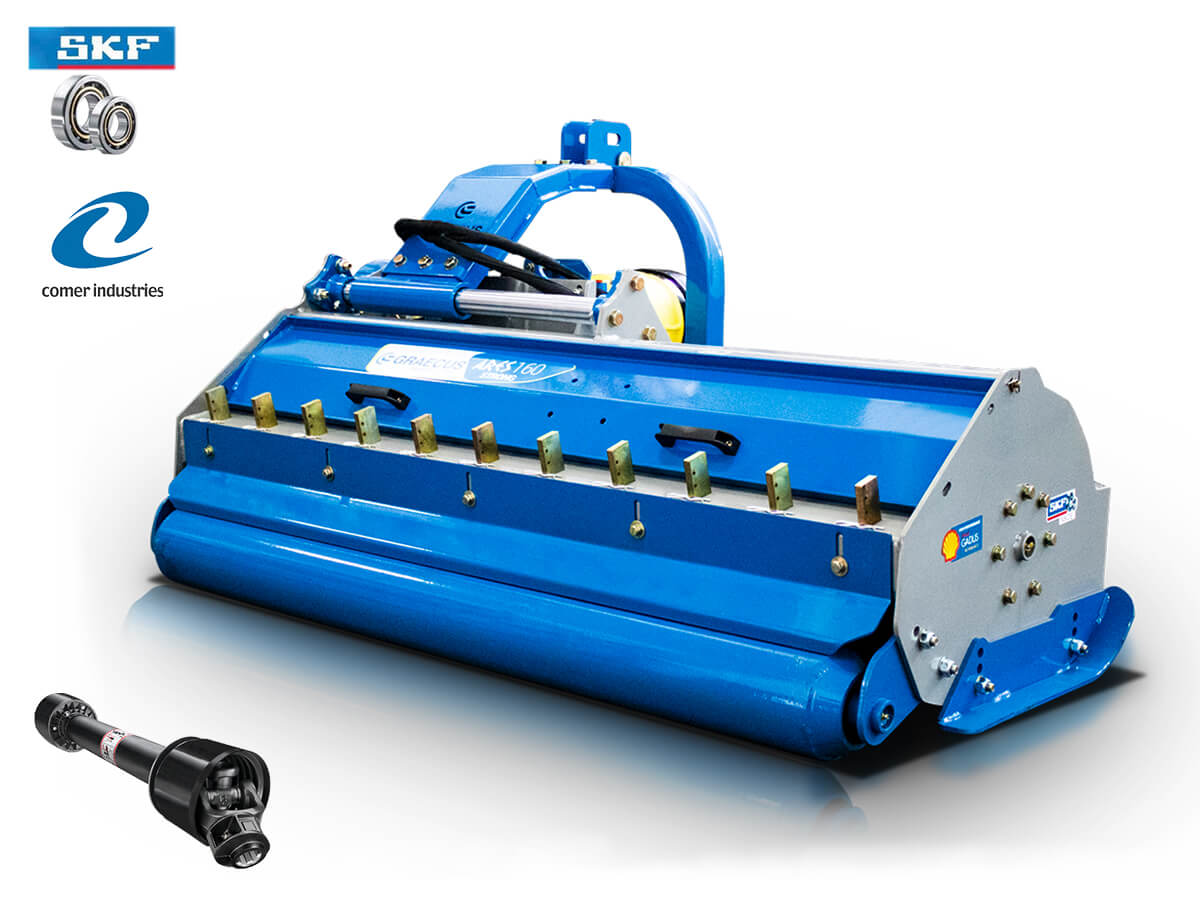

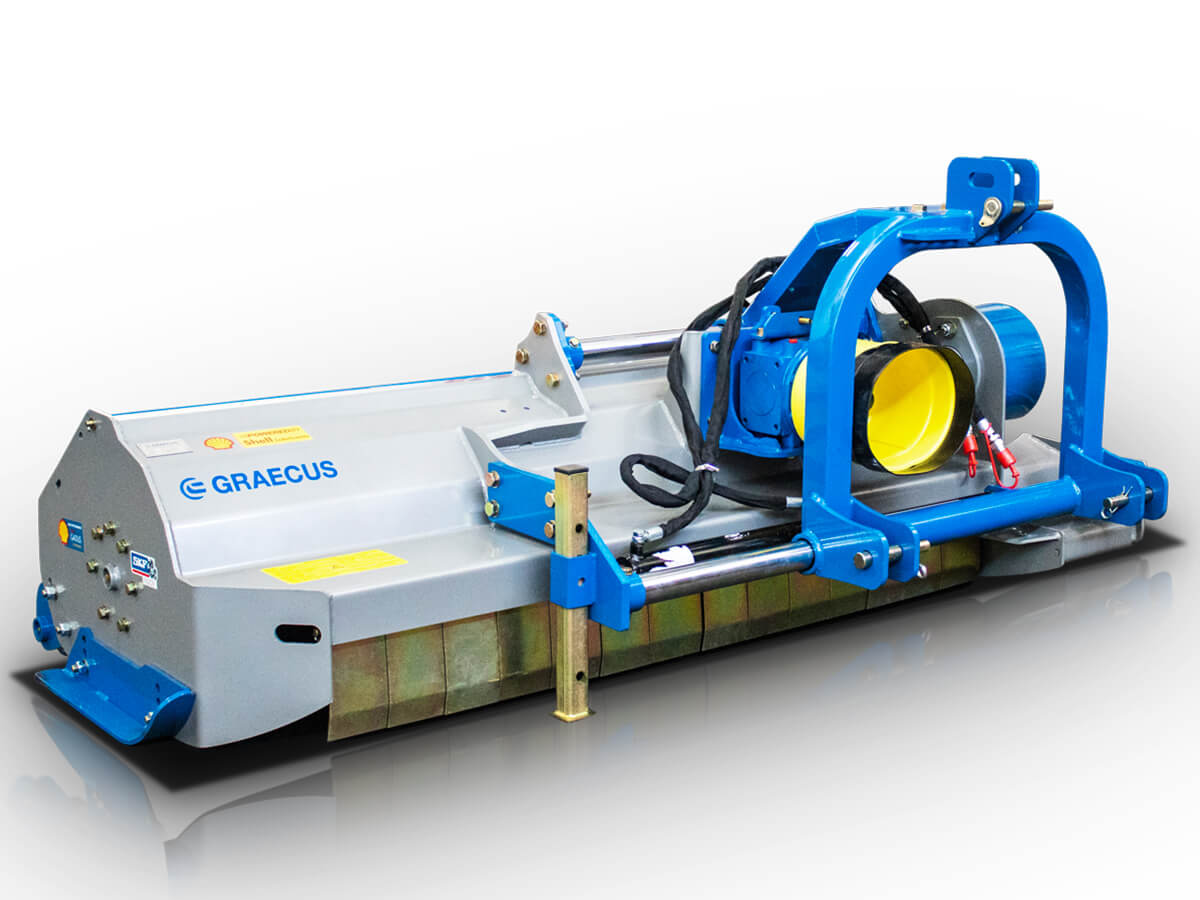

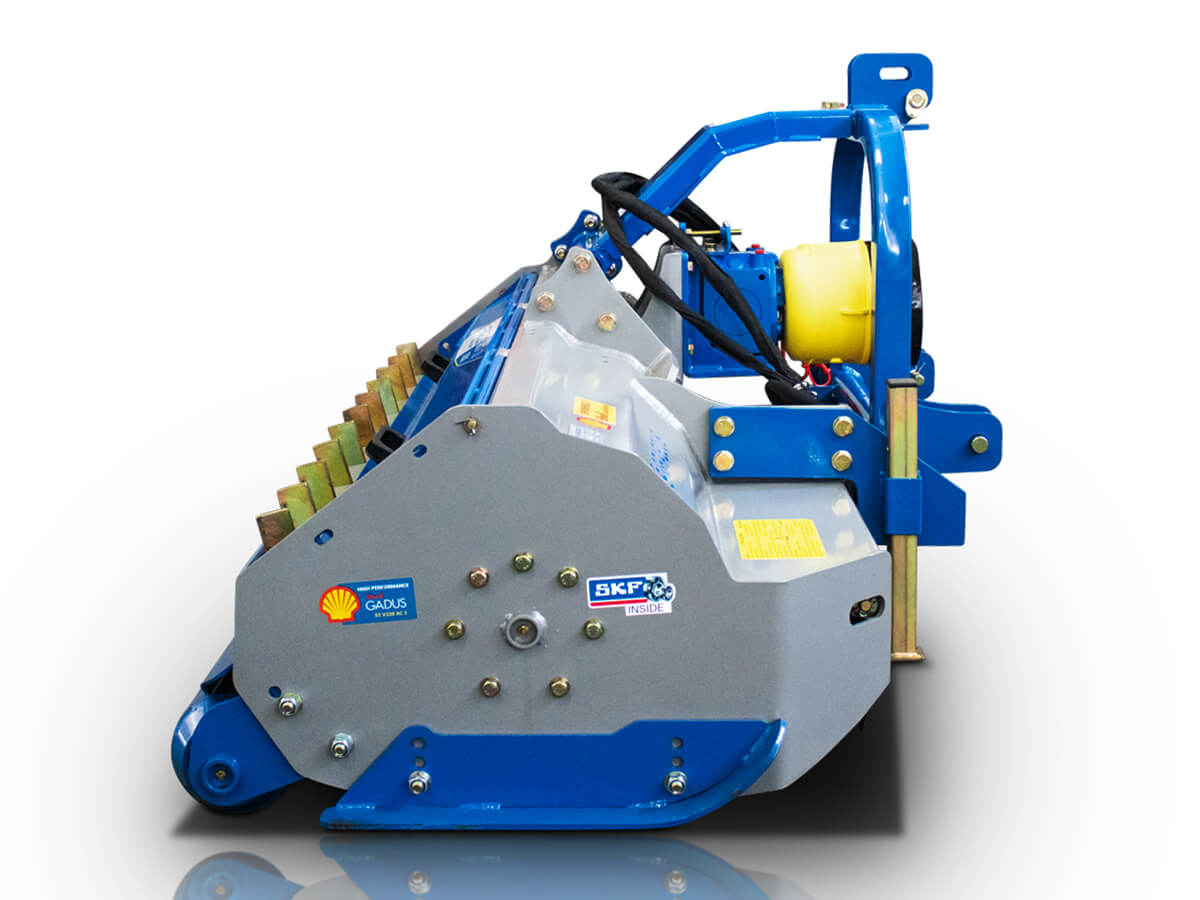

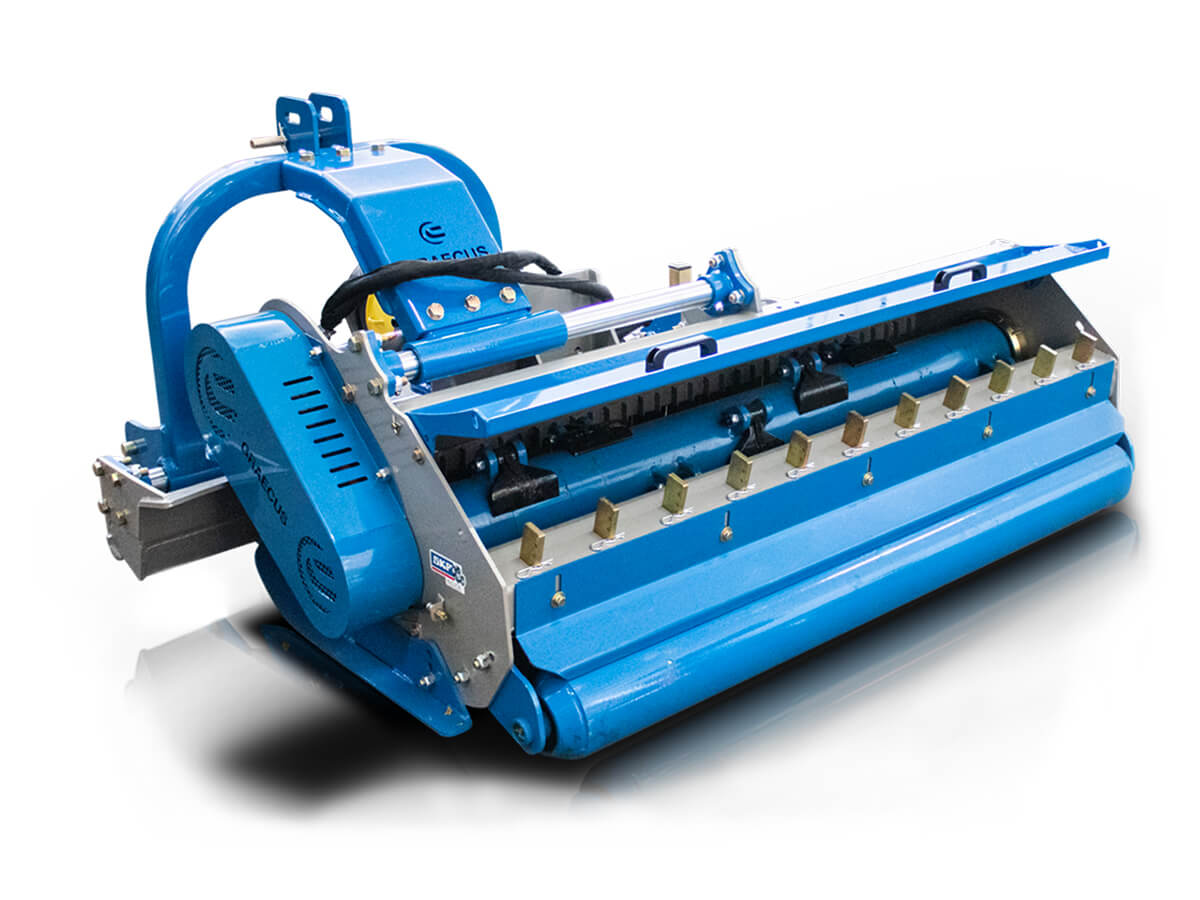

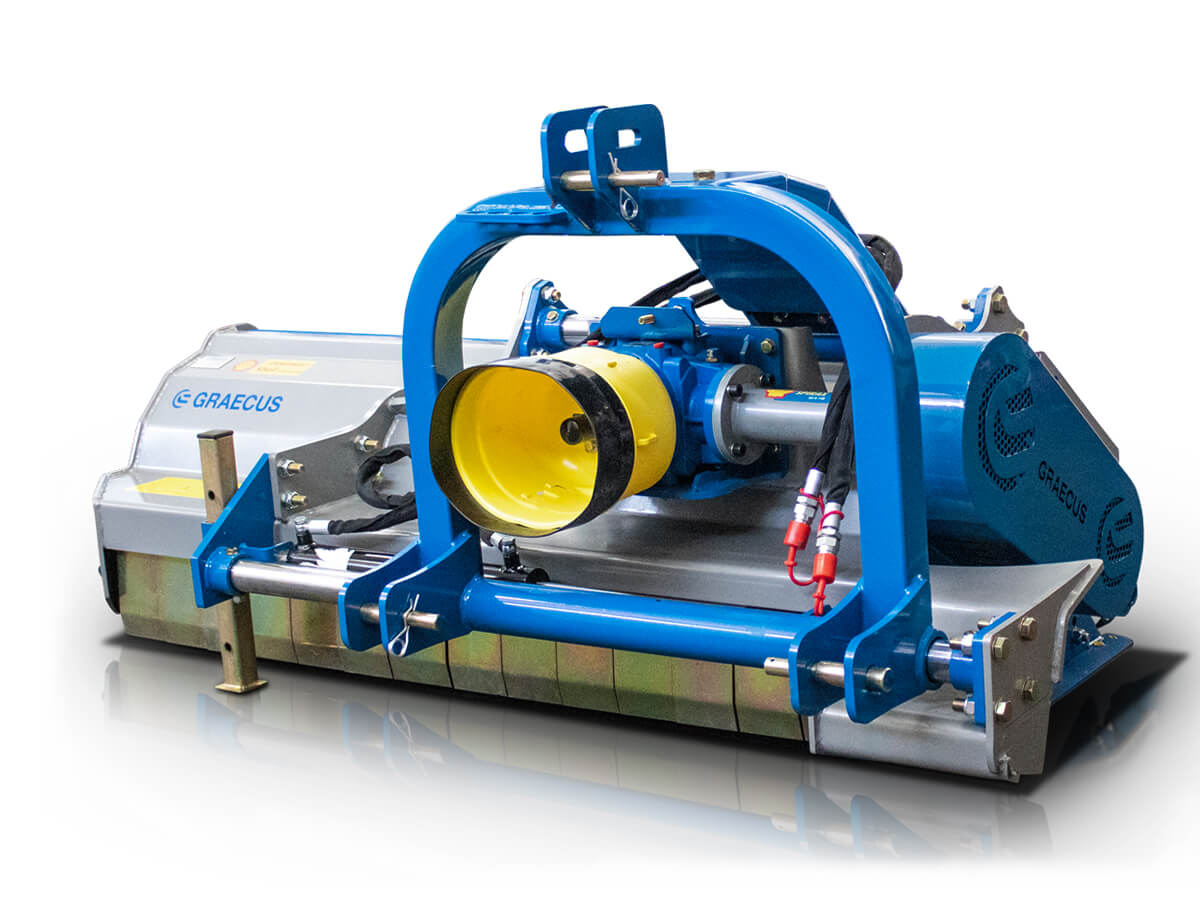

ARES STRONG160 Heavy-duty mulcher

???? Technical Specifications

  • Weight: 540 kg

  • Power requirement: 45 – 100 HP

  • Overall width: 1900 mm

  • Length: 1162 mm

  • Height: 968 mm

  • Working width: 1600 mm

  • Side shift range:

    • Left: 598 / 1028 mm

    • Right: 250 / 1376 mm

  • Number of hammers: 14

  • Number of knives (optional): 28

  • Rotor dimensions: Ø160 × 10 mm

  • Rear roller diameter: Ø152 × 6 mm

  • Drive belts: 5



Available upon request-Get in touch with us for pricing details.
