Advantages and Features
  • Special hardened 720g hammers, suitable for grass and branches up to 5 cm in diameter

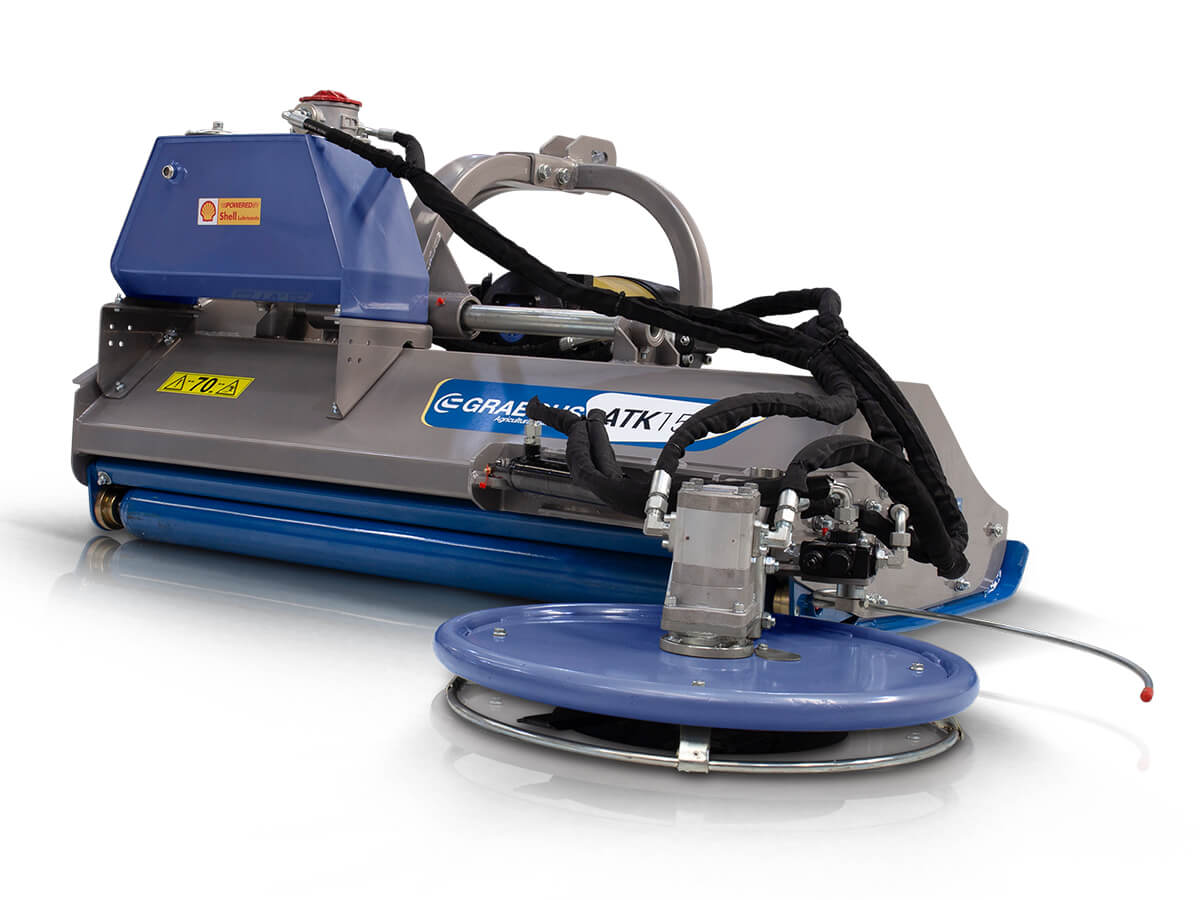

  • Side grass-cutting disc (Ø 60 cm) with hydraulic offset and spring-loaded arm

  • Fast and smooth return of the disc without damaging the crop

  • No hydraulic connection to the tractor required for the side disc

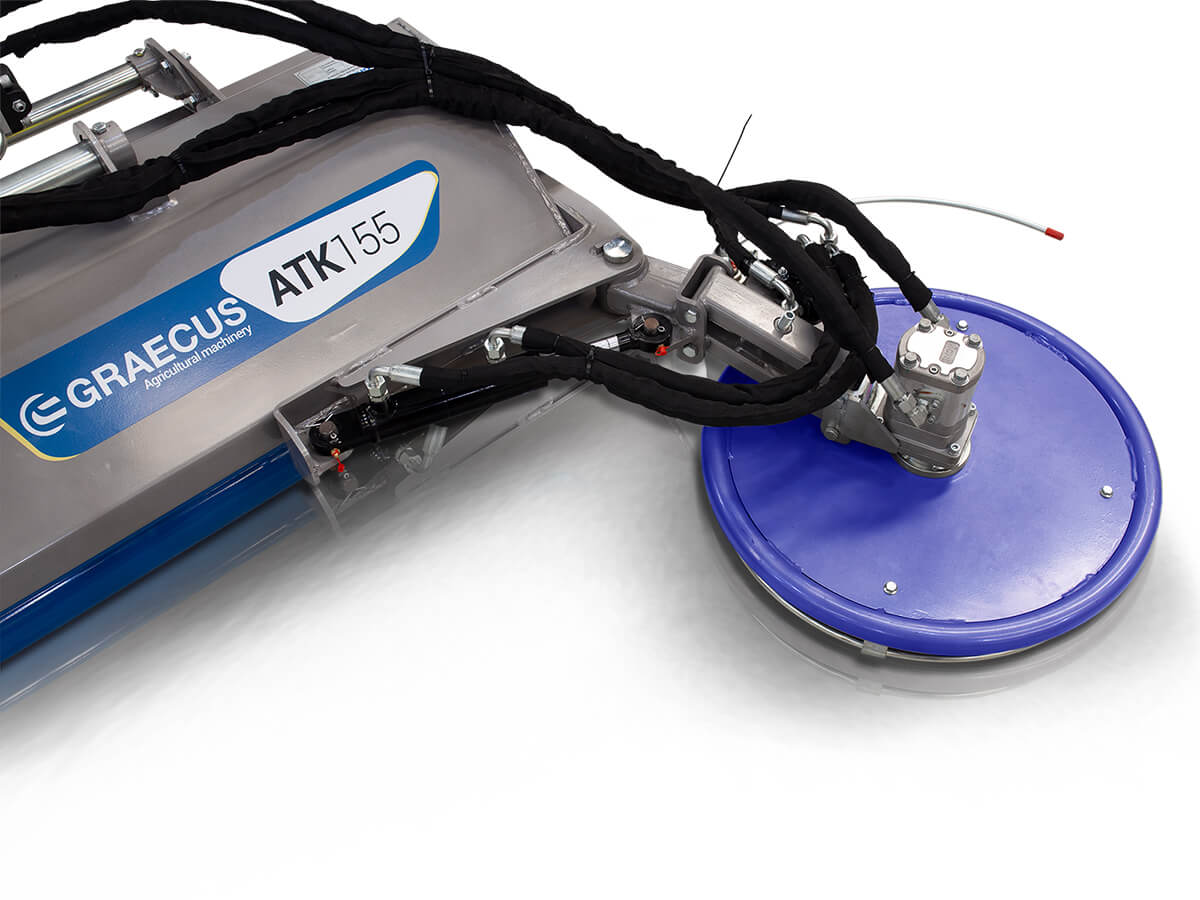

  • Side disc powered by an integrated hydraulic motor with two floating knives

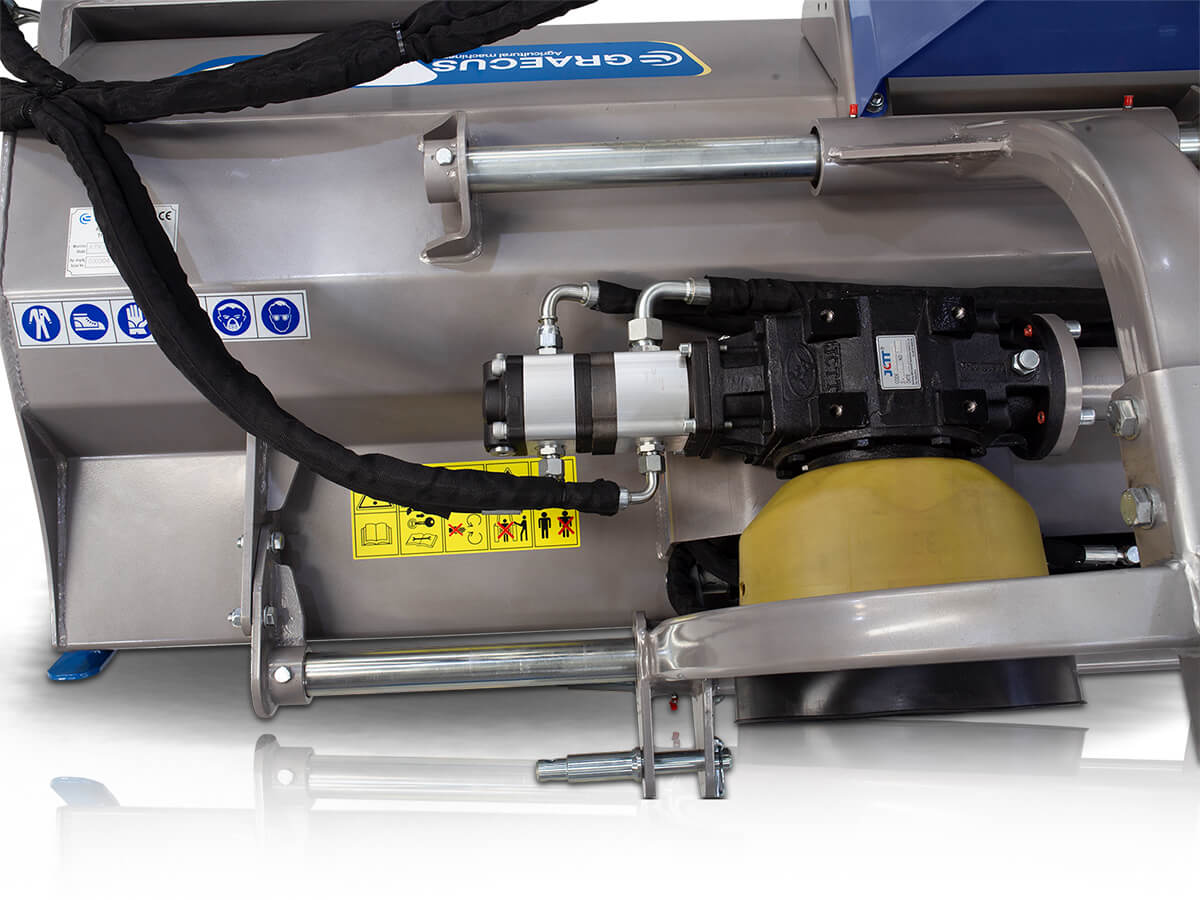

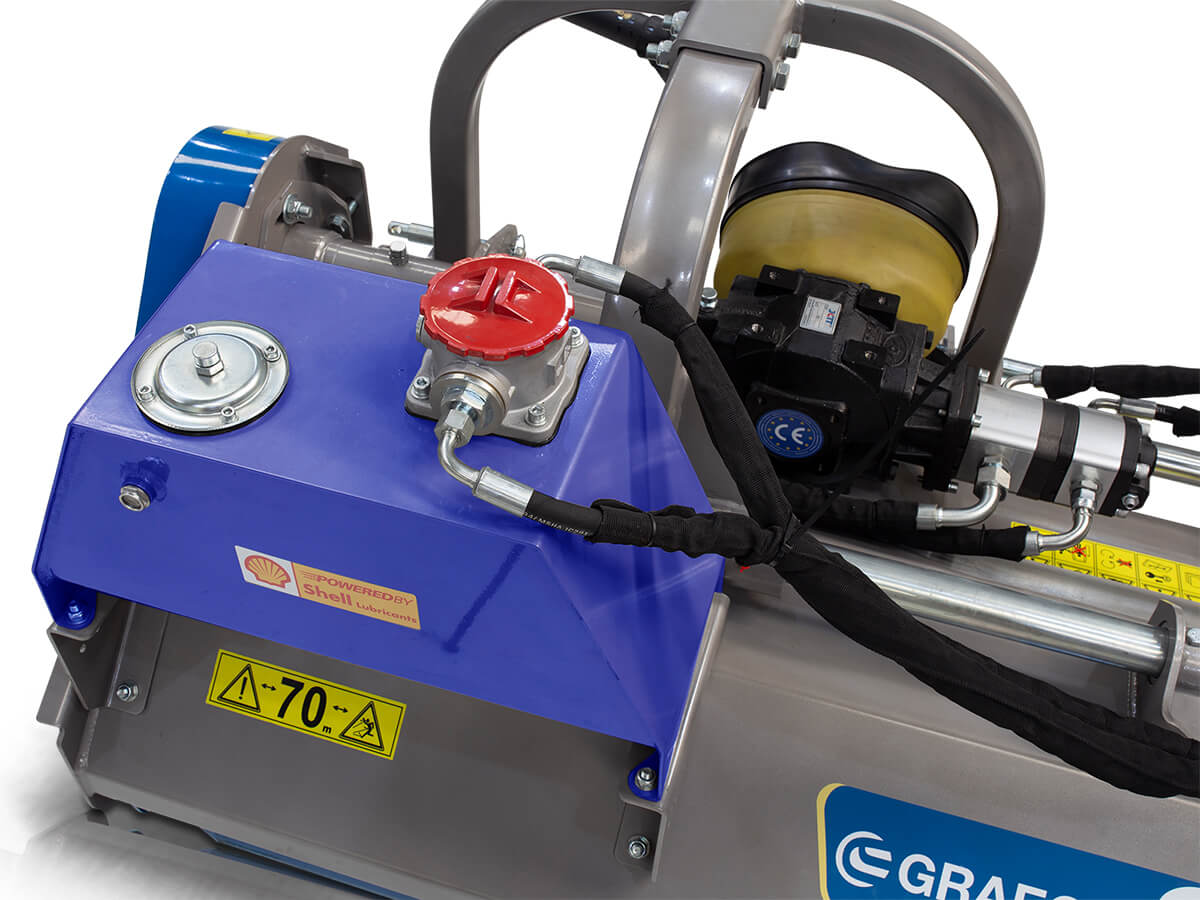

  • Independent hydraulic pump with oil tank mounted on the mulcher frame

  • Hydraulic offset via double-acting cylinder

  • Gearbox (540 rpm) with reinforced bevel gear and overrunning clutch

  • Long-life bearings

  • Digitally balanced rotor with hammers or knives

  • Front protective metal flaps

  • Internal toothed counter-blade for improved shredding performance

  • Working height adjustable via skids/slides

  • Rear adjustable roller with scraper

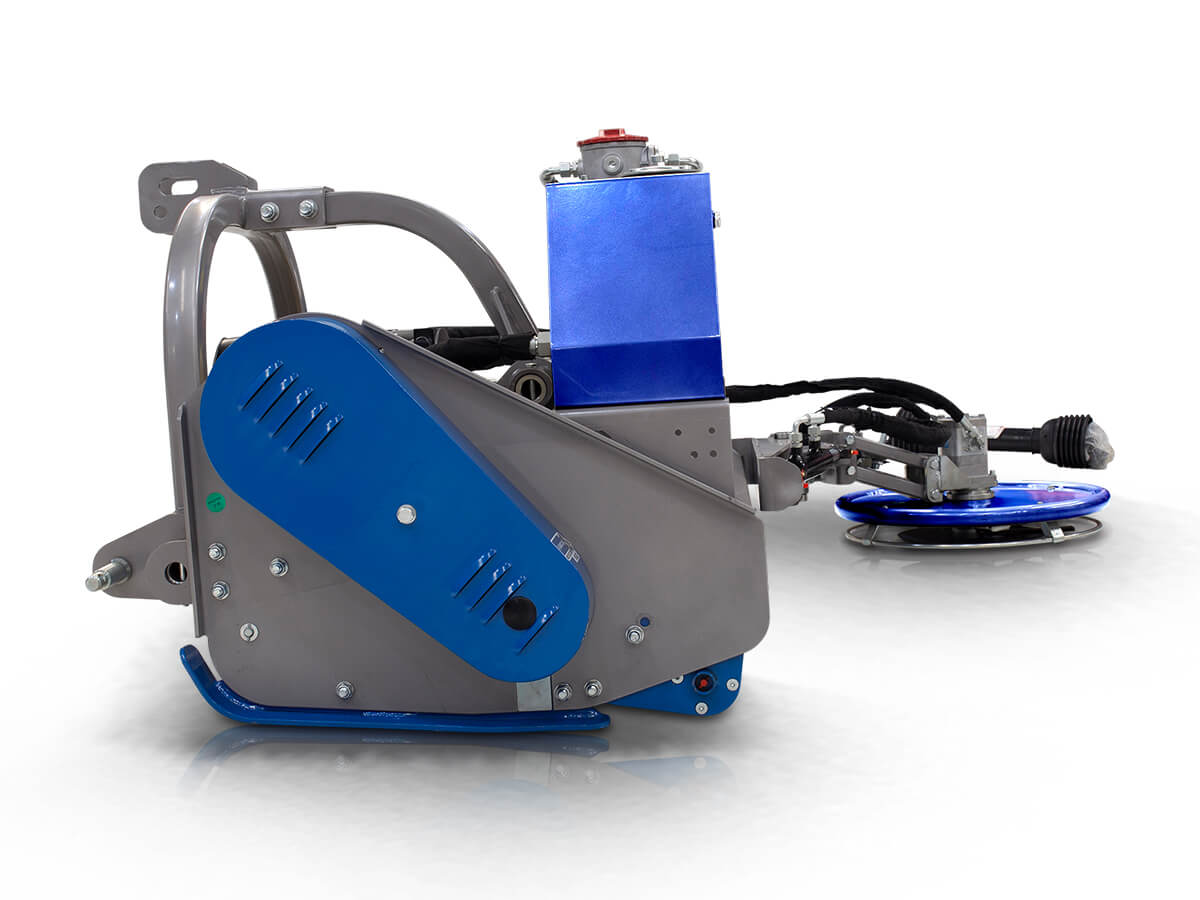

  • Power transmission via 3 toothed belts with external belt tensioner

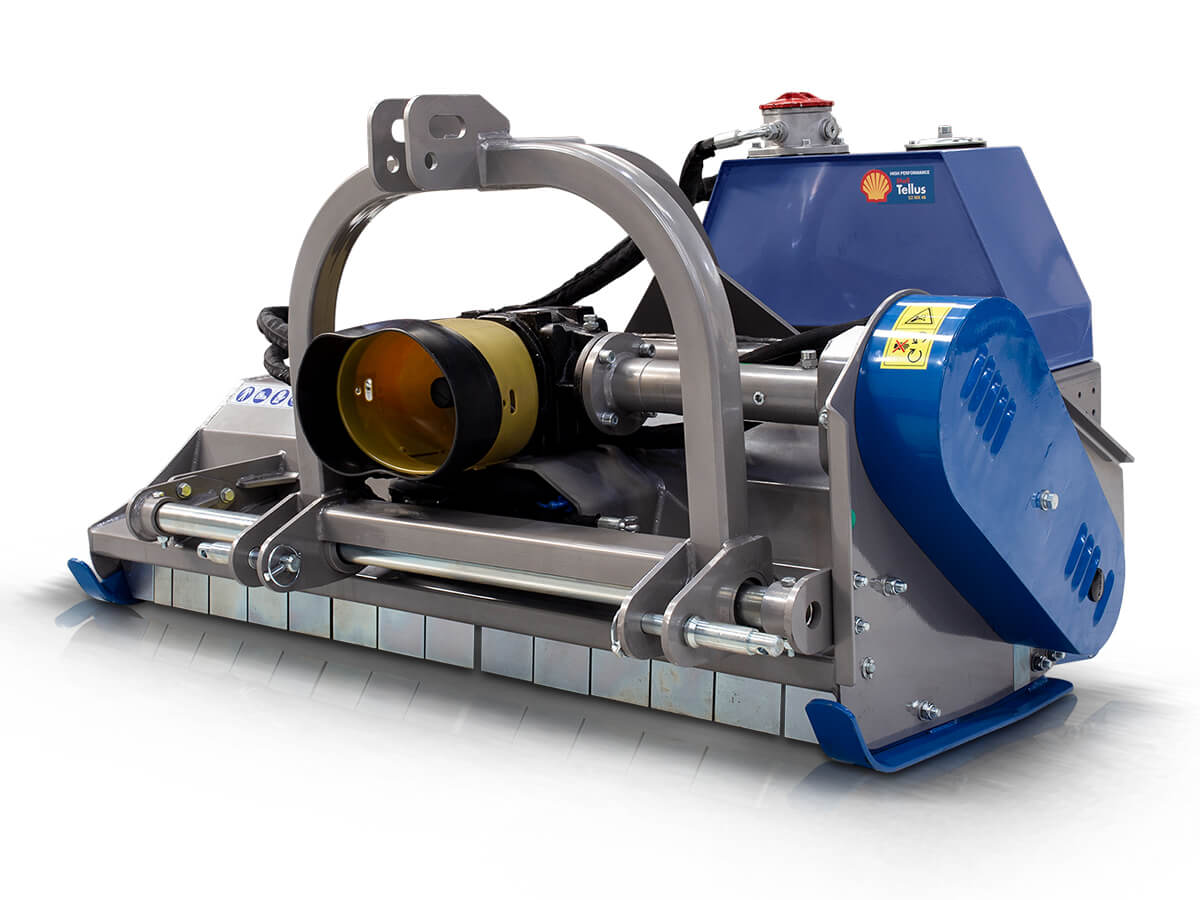

  • Three-point hitch – Category I–II (ø 19.0–22.0 mm / 25.0–28.0 mm)

  • European CE safety certification

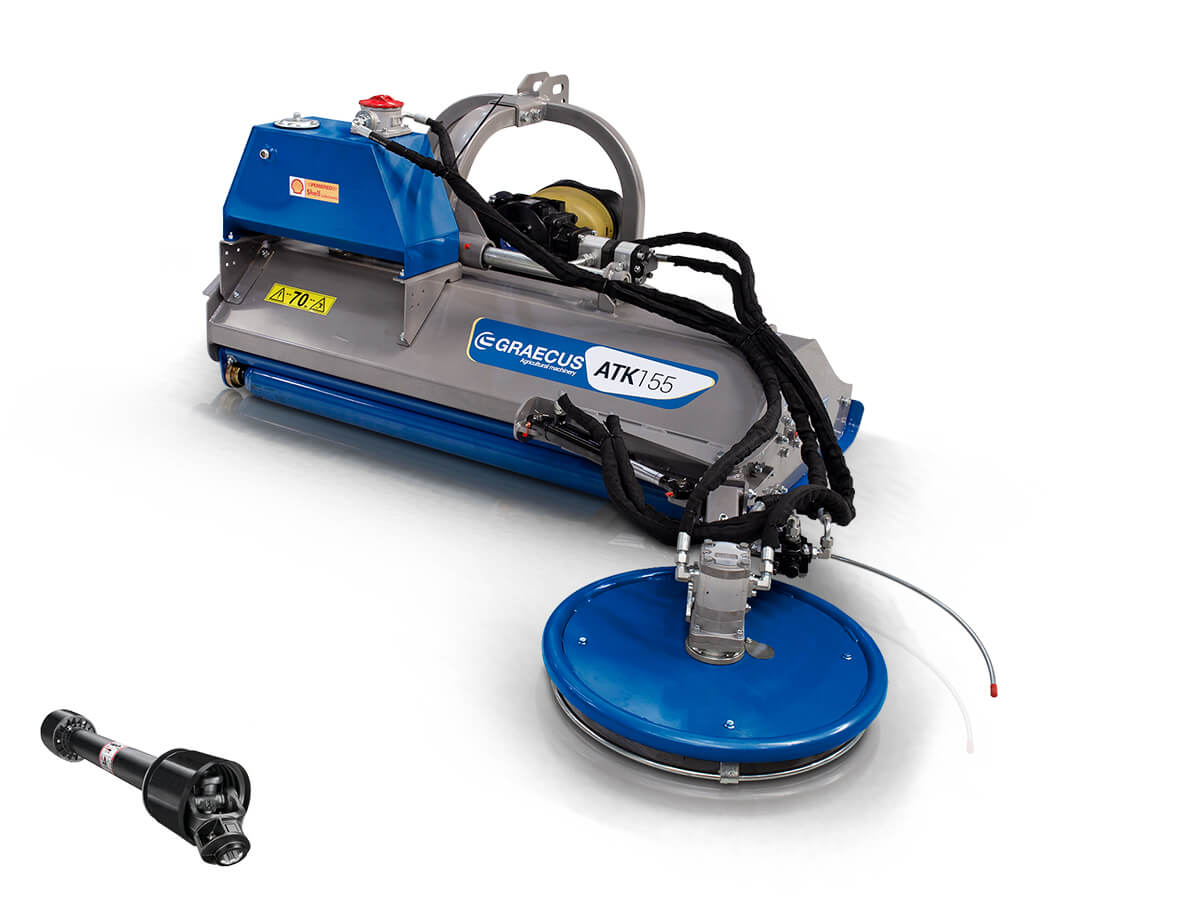

???? PTO shaft T5-70 with plastic cover included in the price

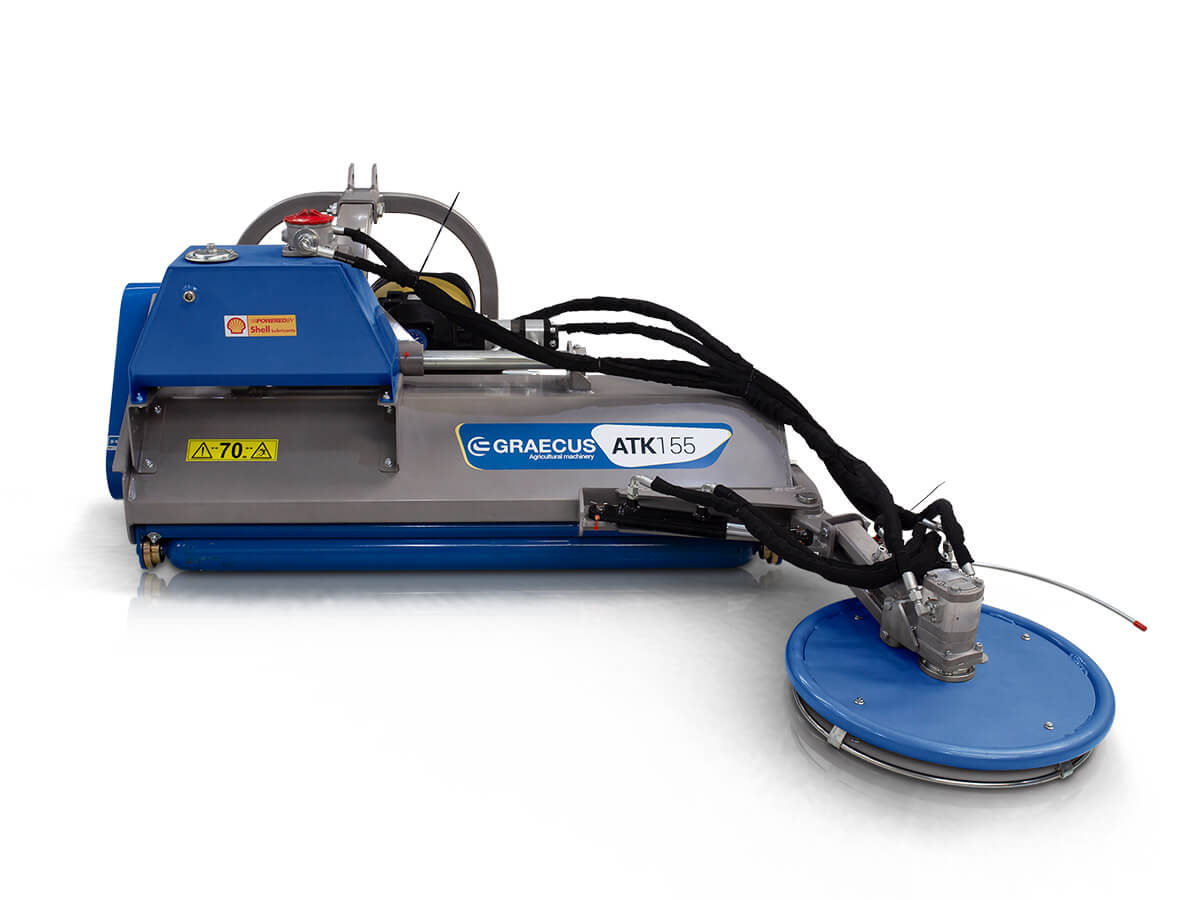

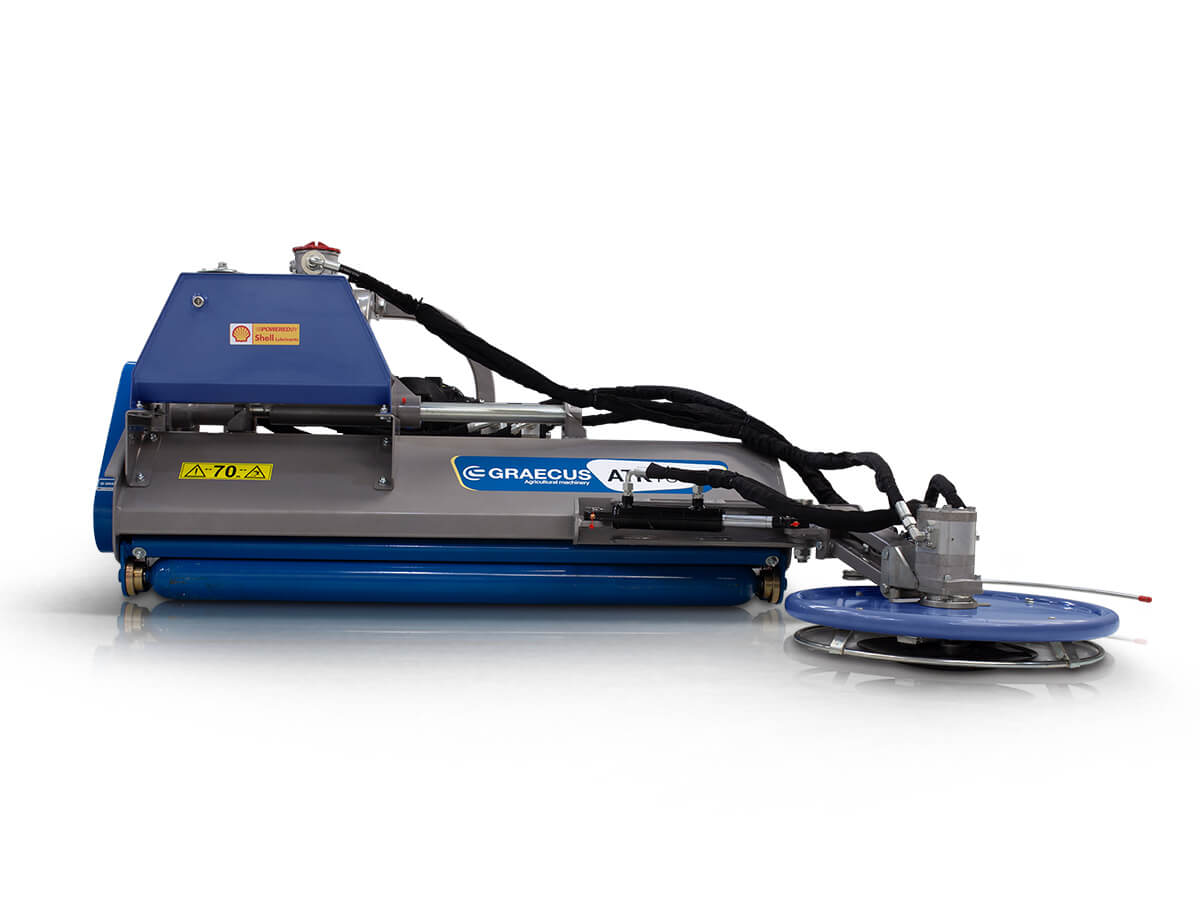

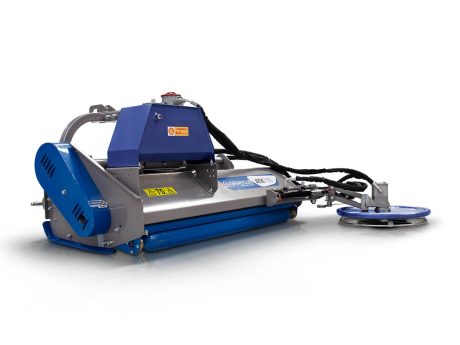

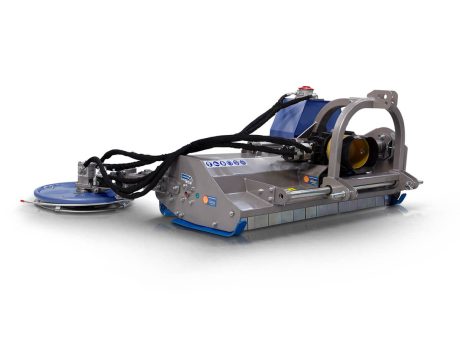

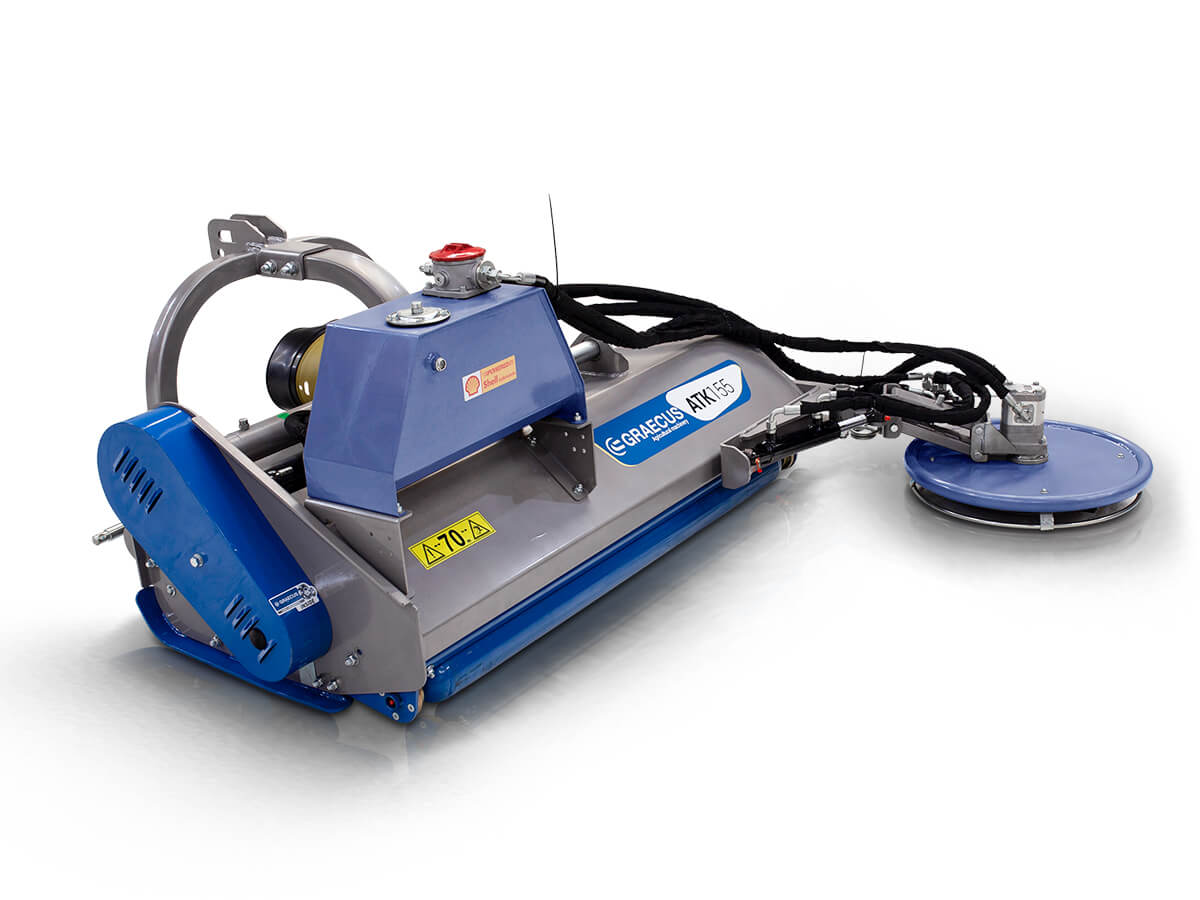

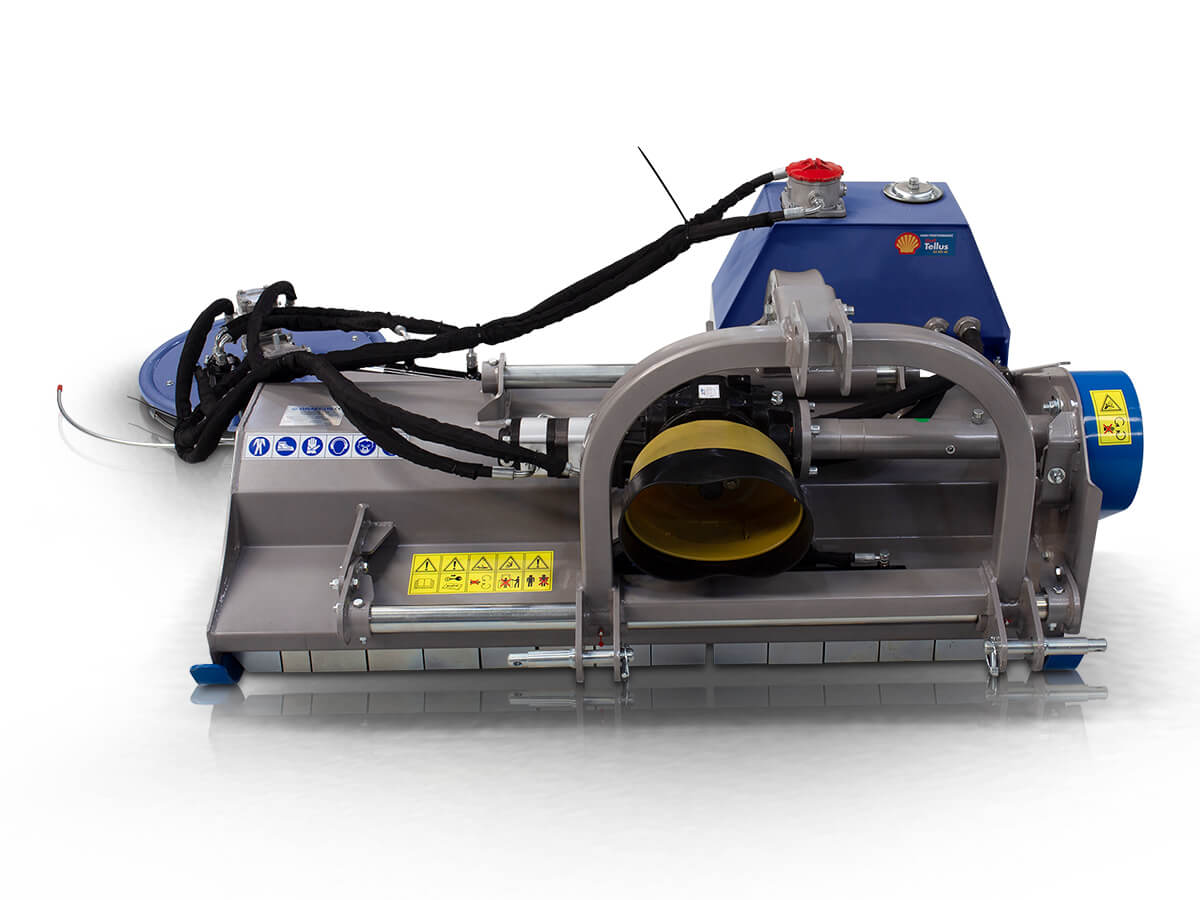

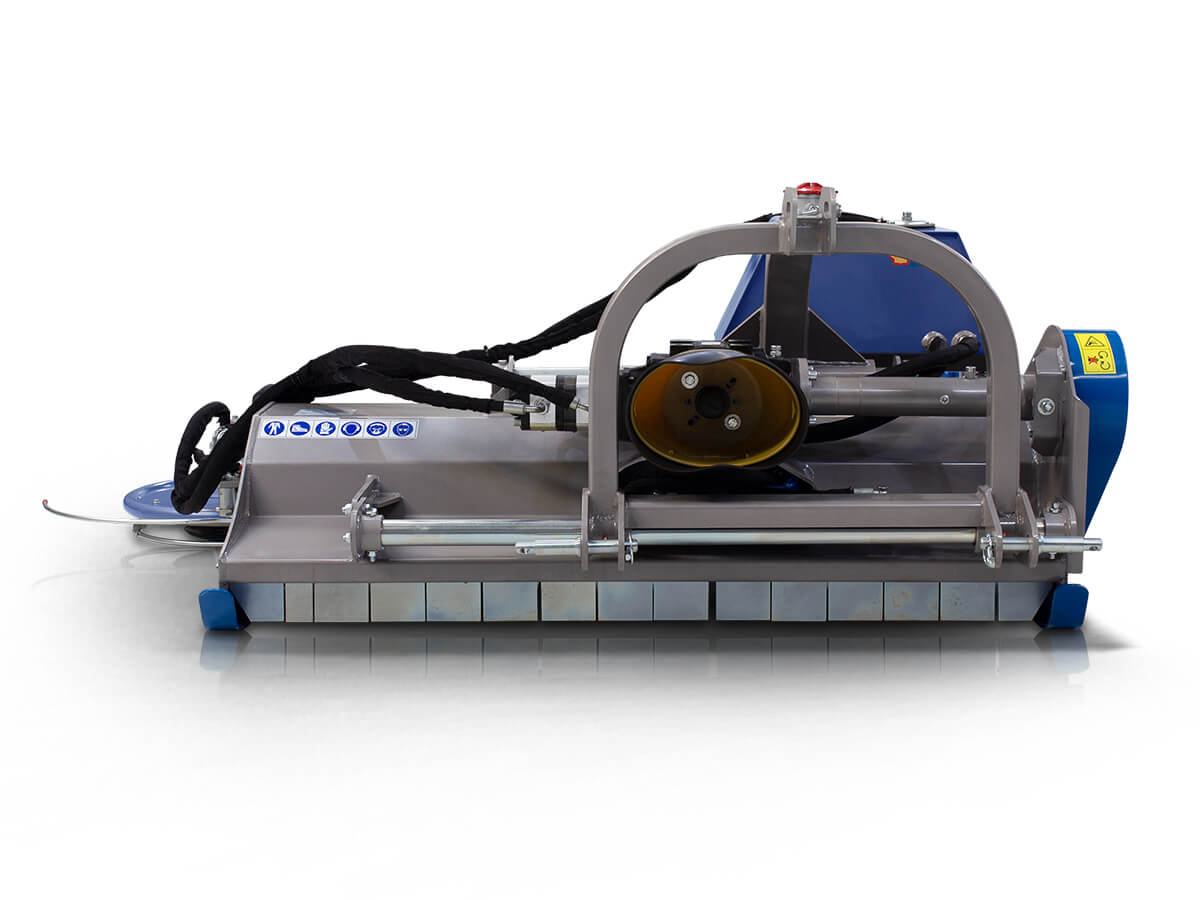

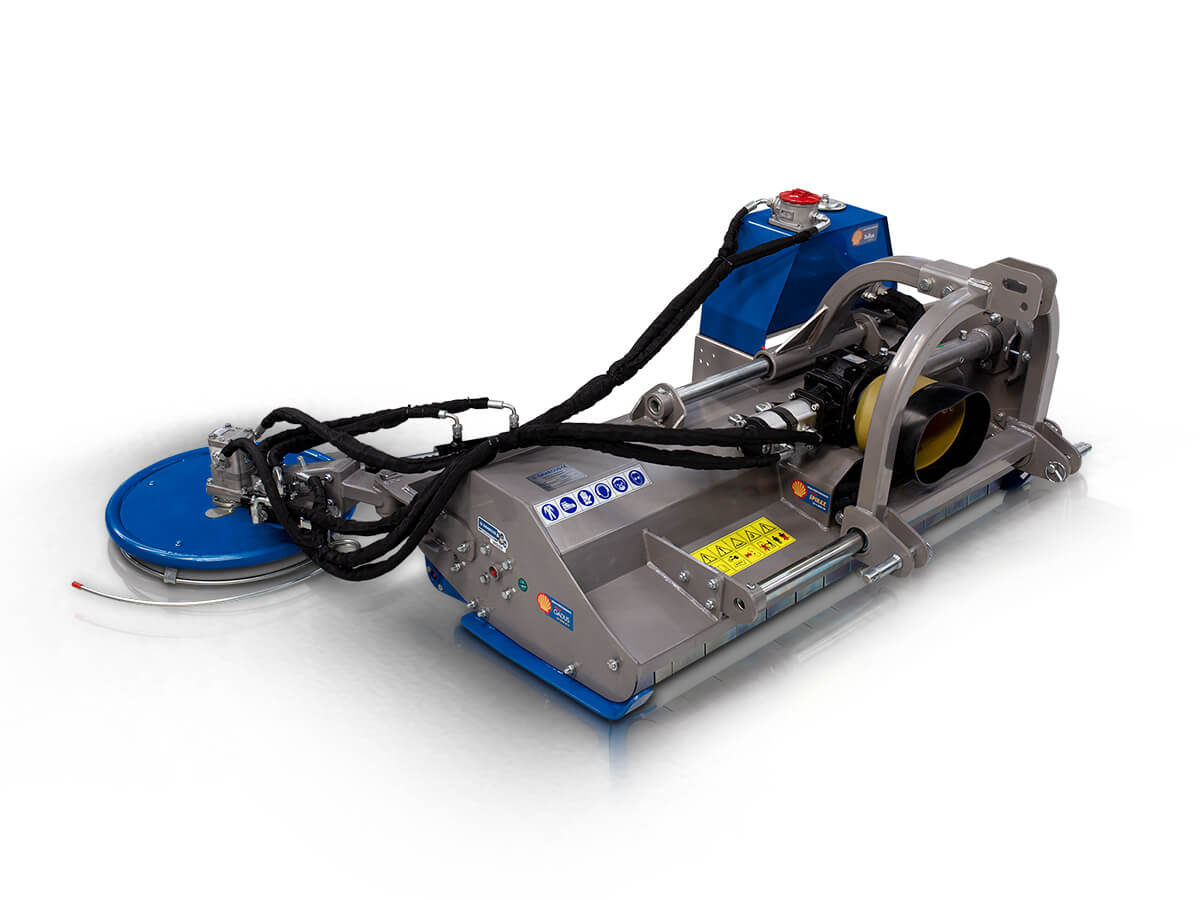

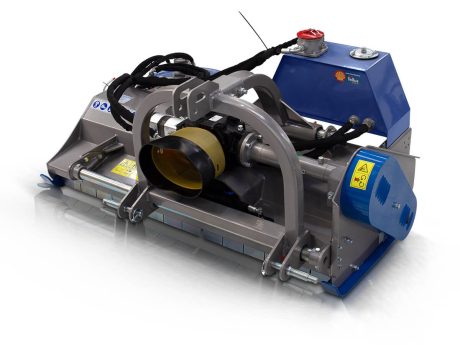

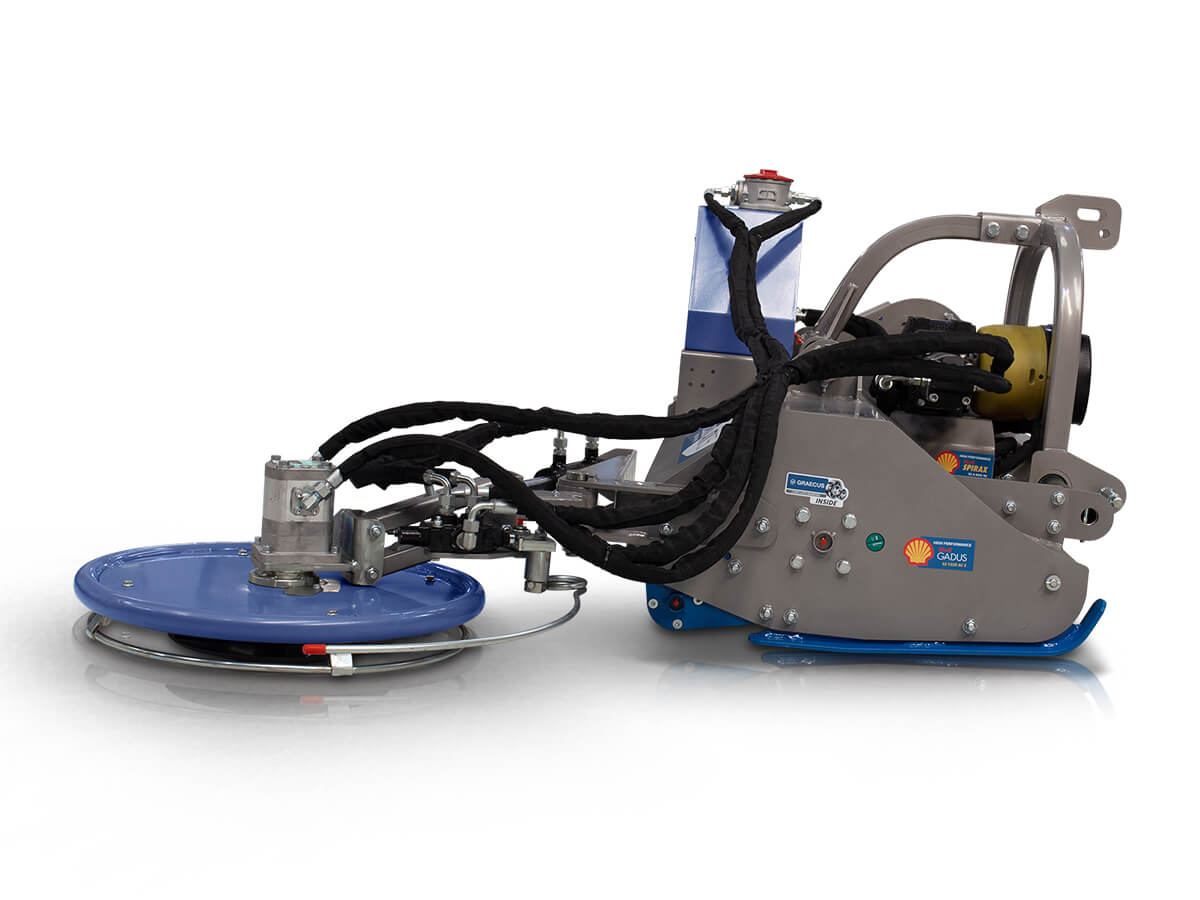

ATK155-H – Offset Flail Mower with Side Rotary Brush

???? Technical Specifications

  • Weight: 363 kg

  • Power requirement: 35 – 60 HP

  • Total width: 1670 + 500 mm

  • Length: 1650 mm

  • Height: 830 mm

  • Working width: 1550 + 500 mm

  • Offset range:

    • Left: 800 / 750 mm

    • Right: 450 / 1150 mm

  • Number of hammers: 24 pcs

  • Number of knives: 48 pcs

  • Rotor dimensions: Ø108 × 8 mm

  • Drive belts: 3 pcs

Available Upon Order , Contact Us for Pricing!
