Advantages and Features
  • BTK150 – Heavy-duty flail mower with hydraulic telescopic arm

  • Designed for work on slopes, embankments, roadsides, ditches, parks, gardens, and green spaces

  • Ideal for professional contractors and high-volume clearing operations

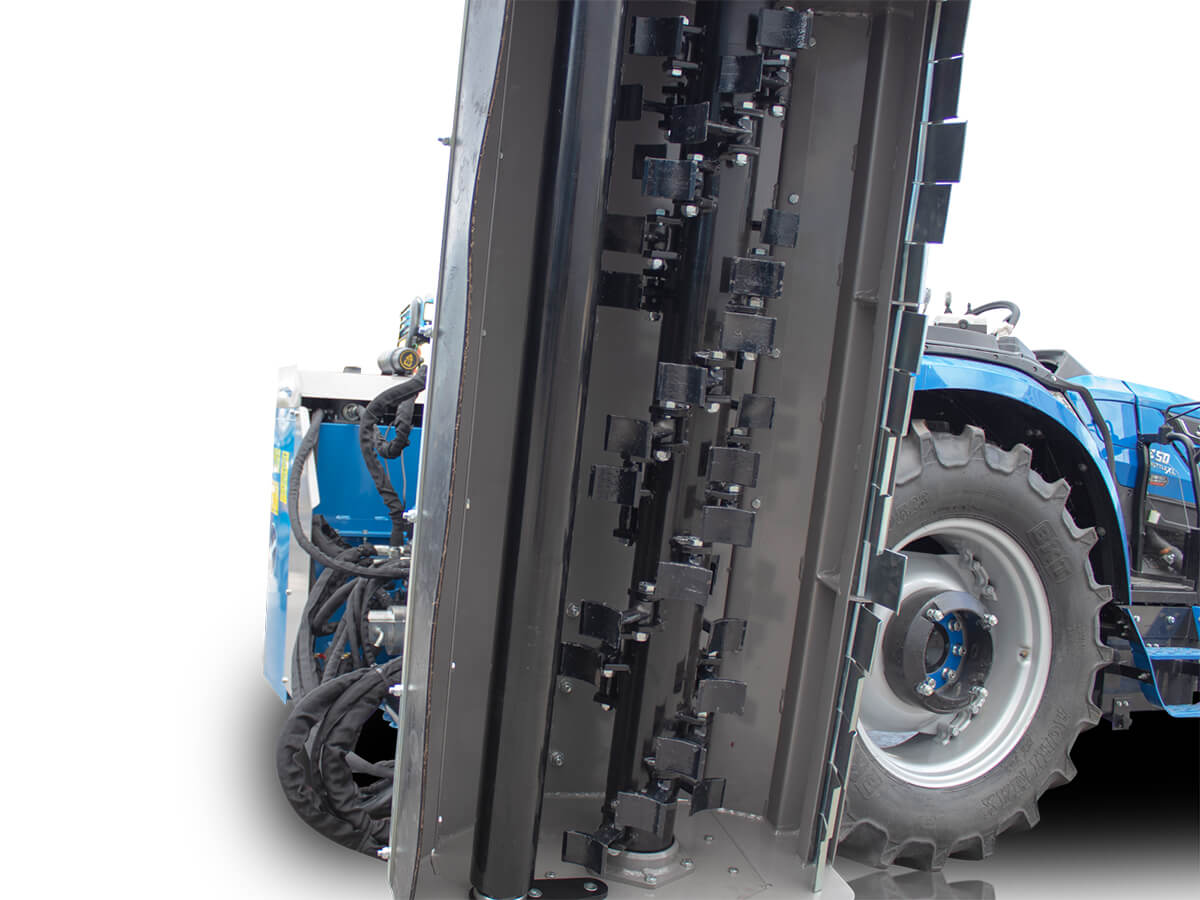

  • Reinforced 740g double-edge hammers, suitable for grass and branches up to 5 cm

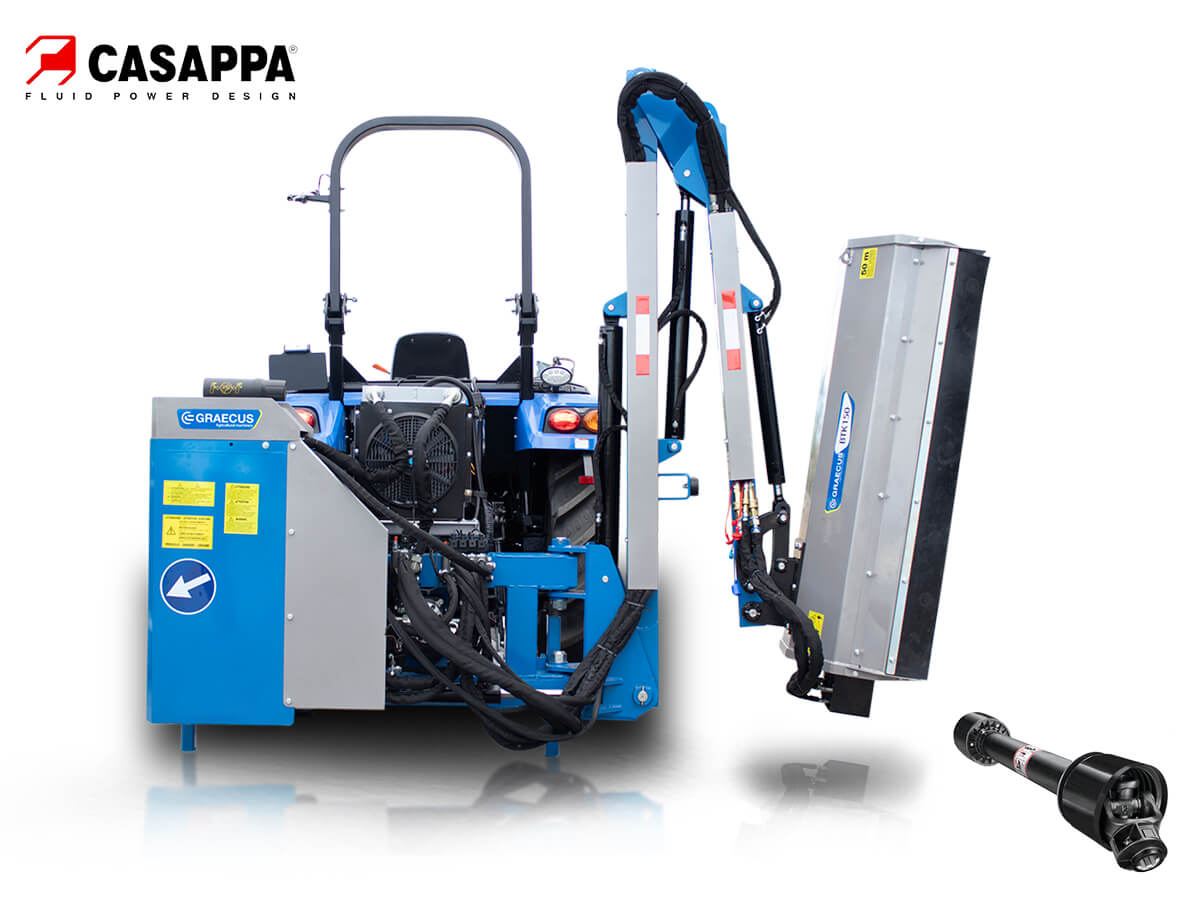

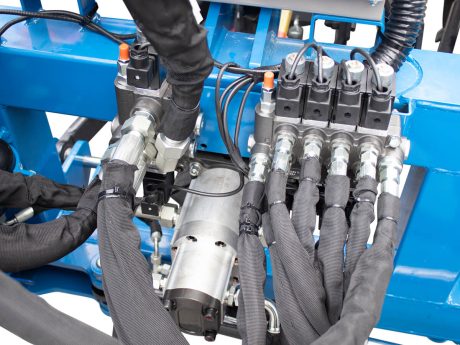

  • Fully independent hydraulic system with dual hydraulic pump (CASAPPA, made in Italy) driven by PTO shaft

  • CASAPPA hydraulic motor powers the flail head directly

  • Durable, long-life bearings

  • 150L oil tank with integrated cooling system for extended operation without overheating

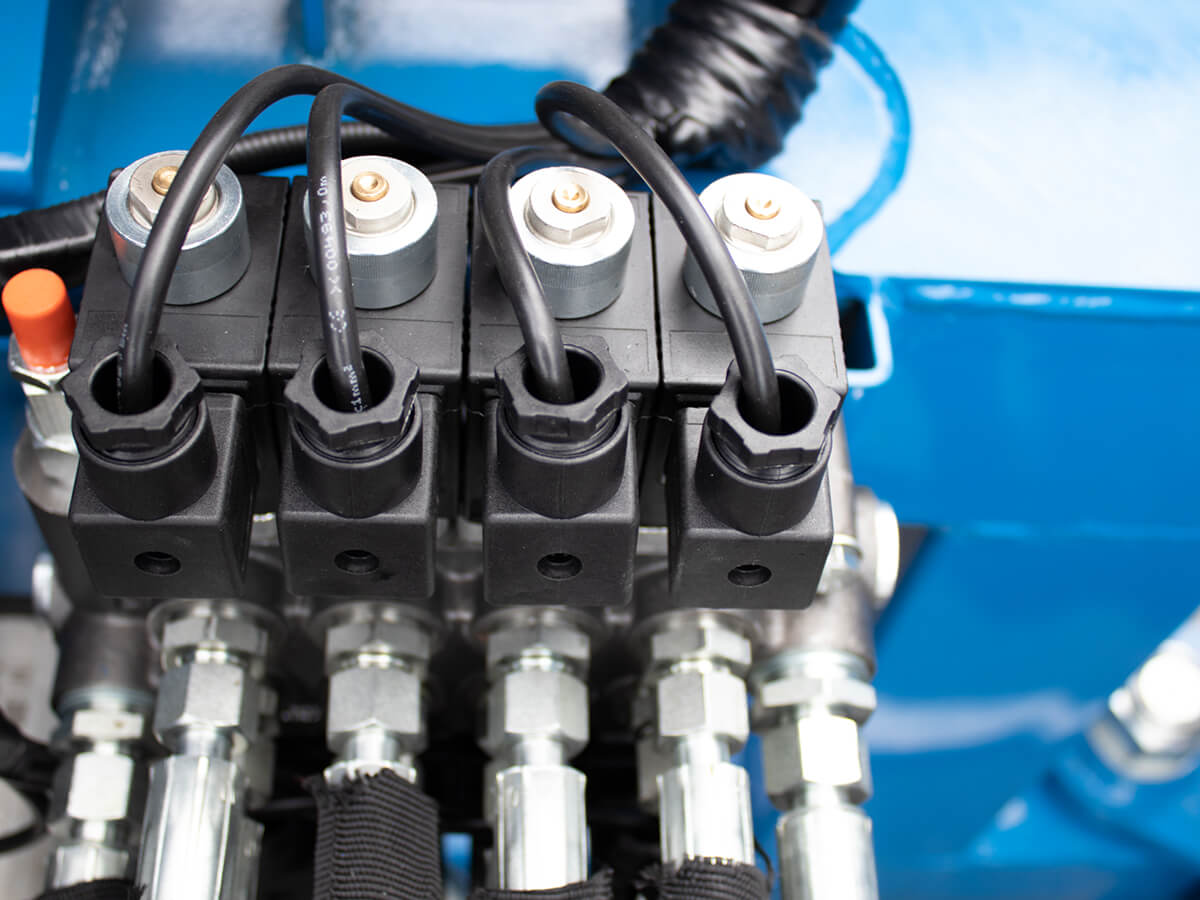

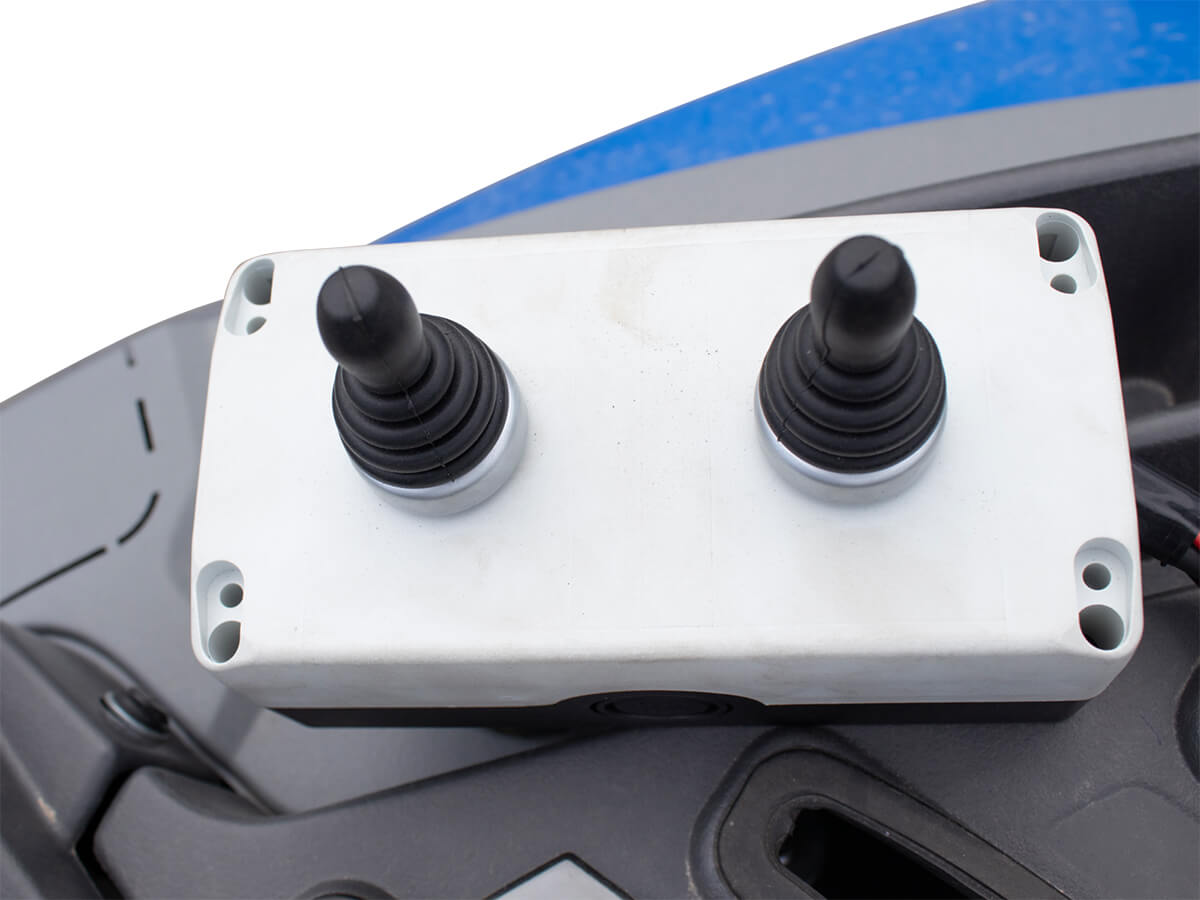

  • Remote control system with flexible cables

  • Pressure relief valve for professional use

  • Flail head equipped with floating system for obstacle avoidance during operation

  • Digitally balanced rotor, capable of clockwise and counterclockwise rotation

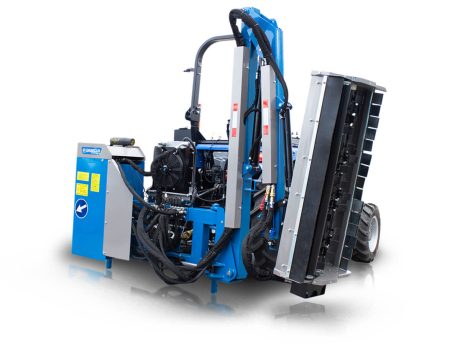

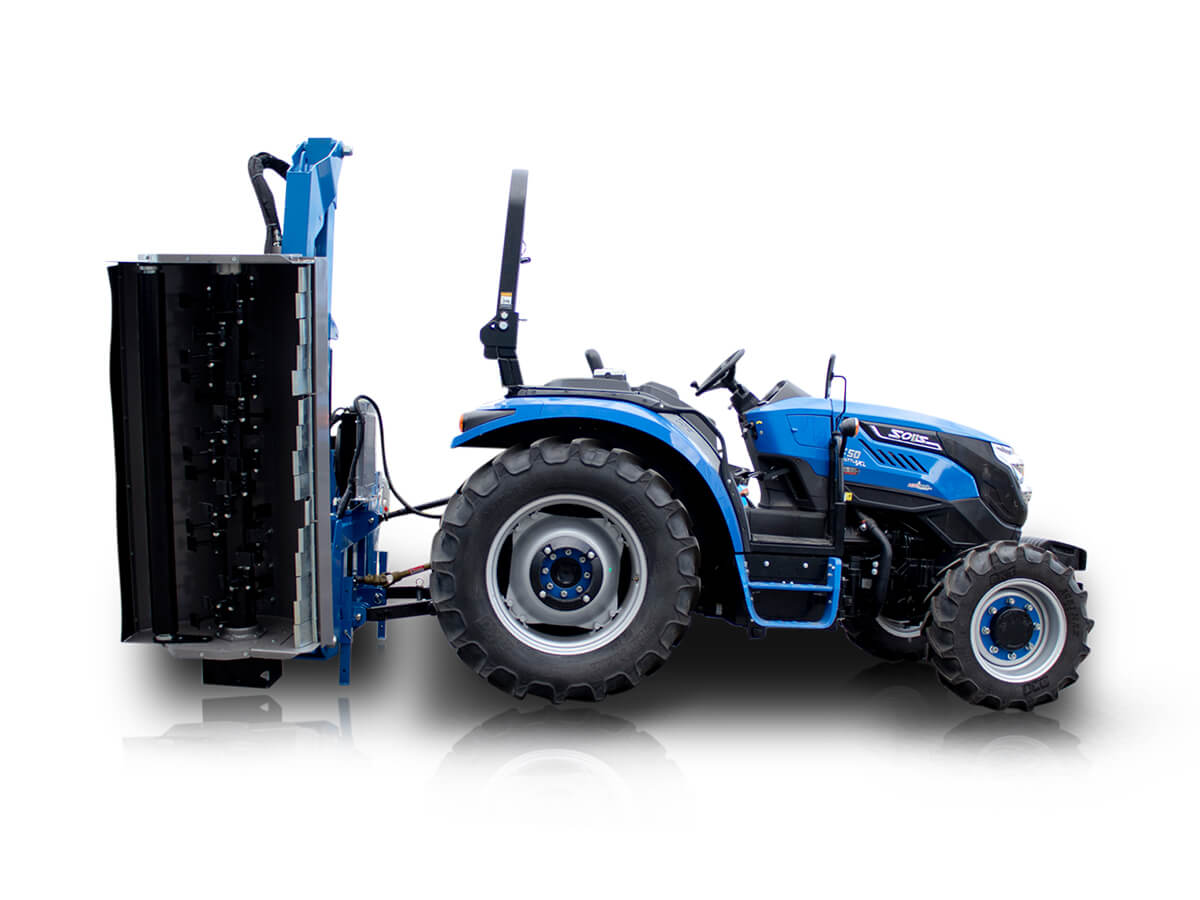

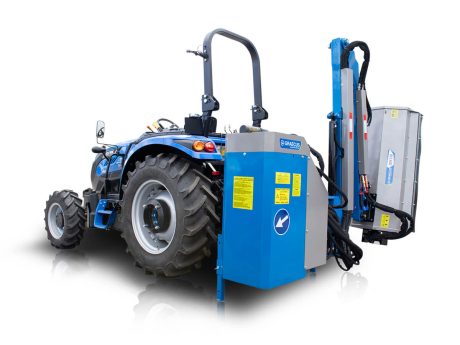

  • Foldable arm for compact transport and storage

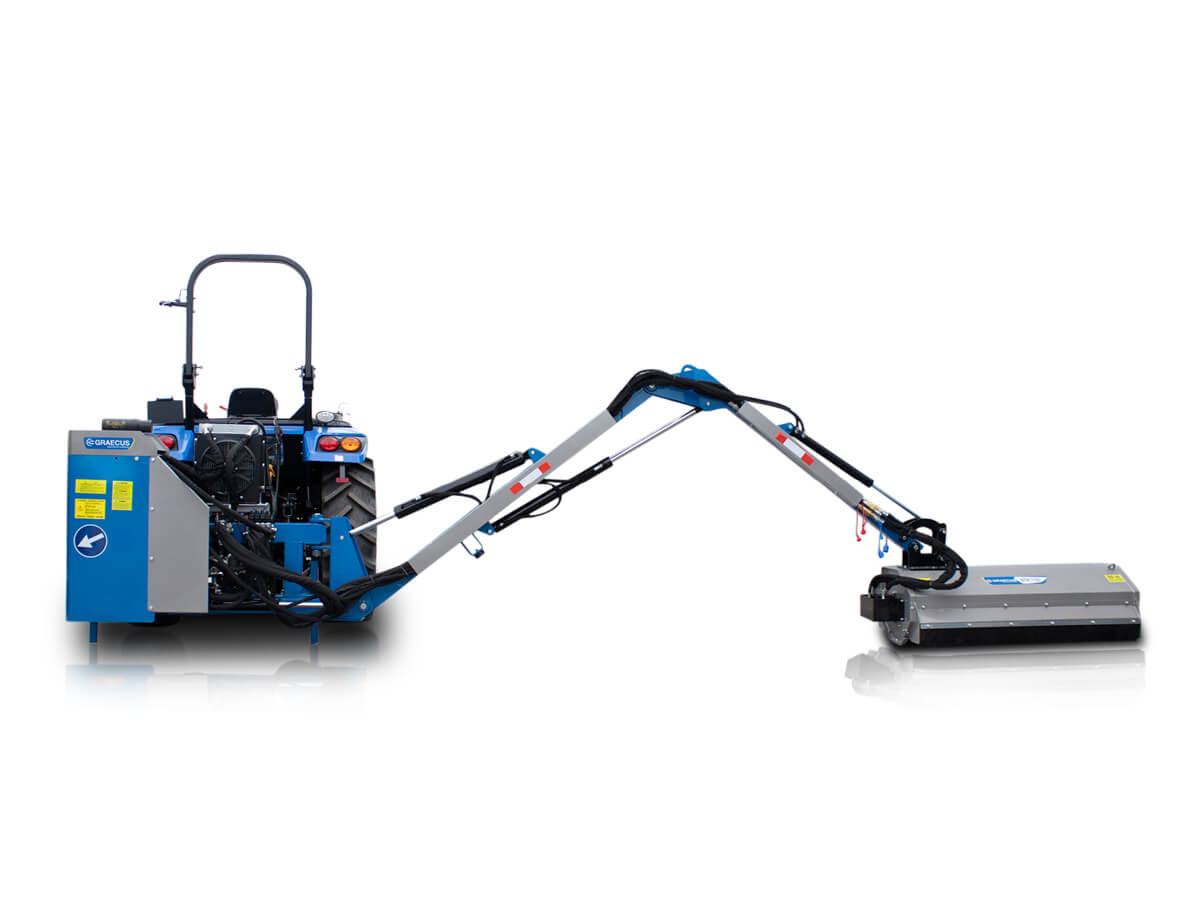

  • Long reach up to 6 meters

  • Adjustable working height via skid shoes

  • Rear adjustable roller with scraper

  • Front safety flaps

  • Support stand with legs for safe parking

  • Three-point hitch – Category II–III (ø 25.0–28.0 mm / 32.0–38.0 mm)

  • European CE safety certification

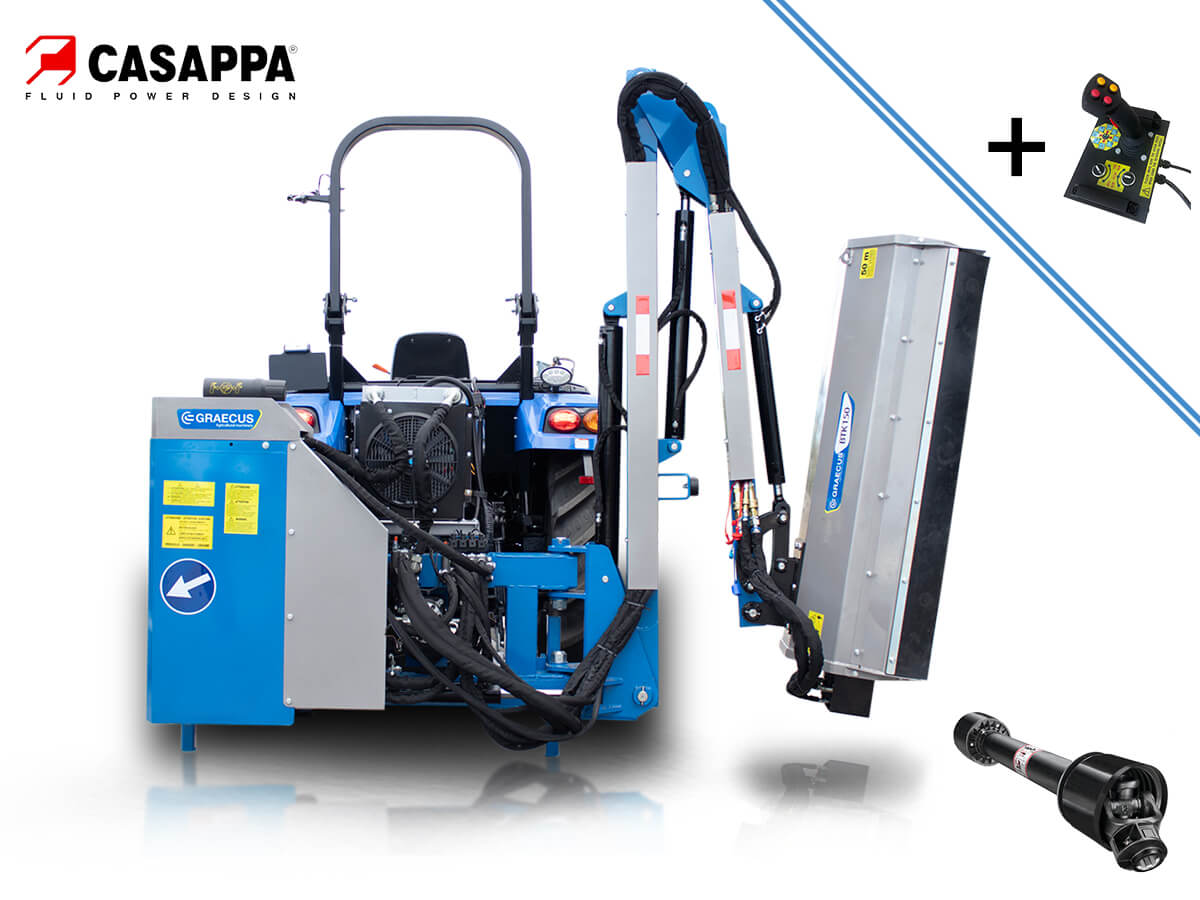

???? PTO shaft T6-80 with plastic cover and safety shear bolt included in the price

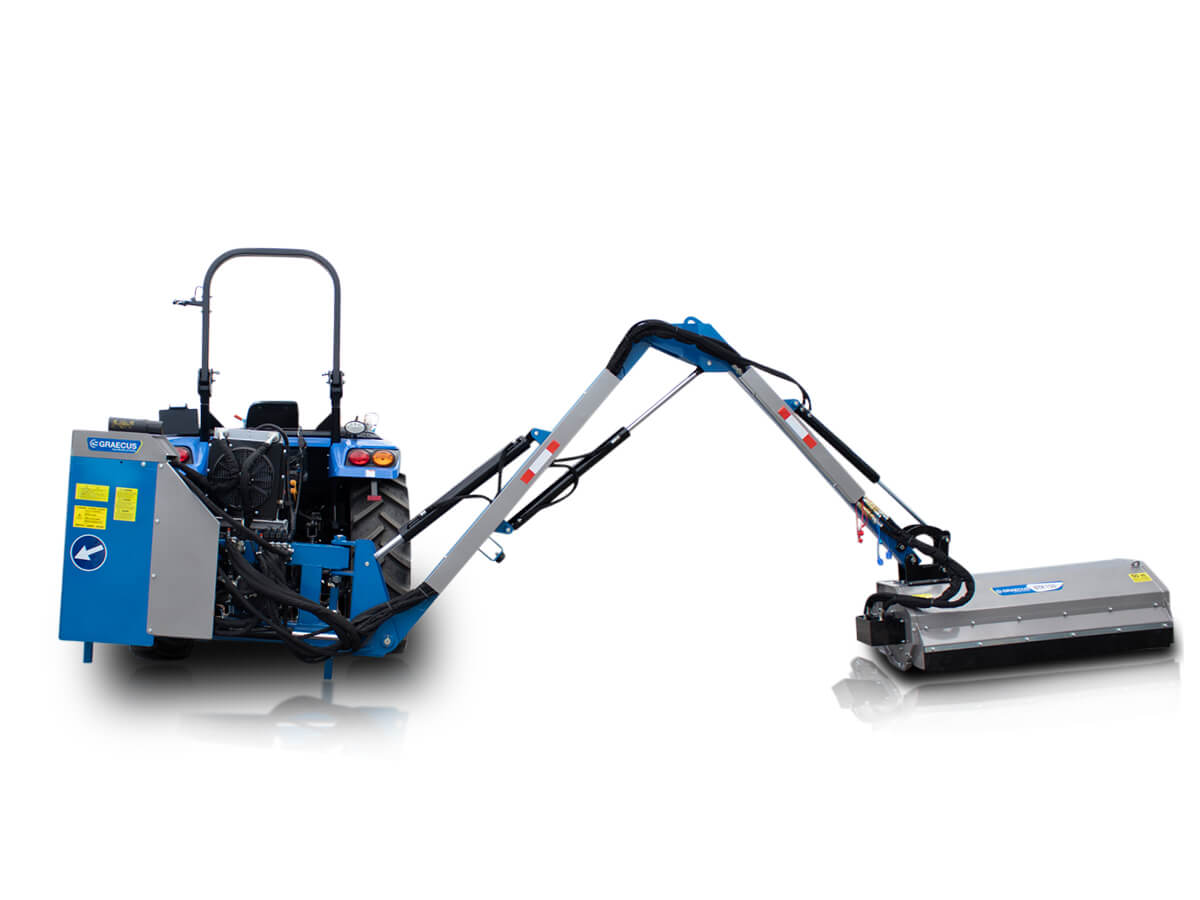

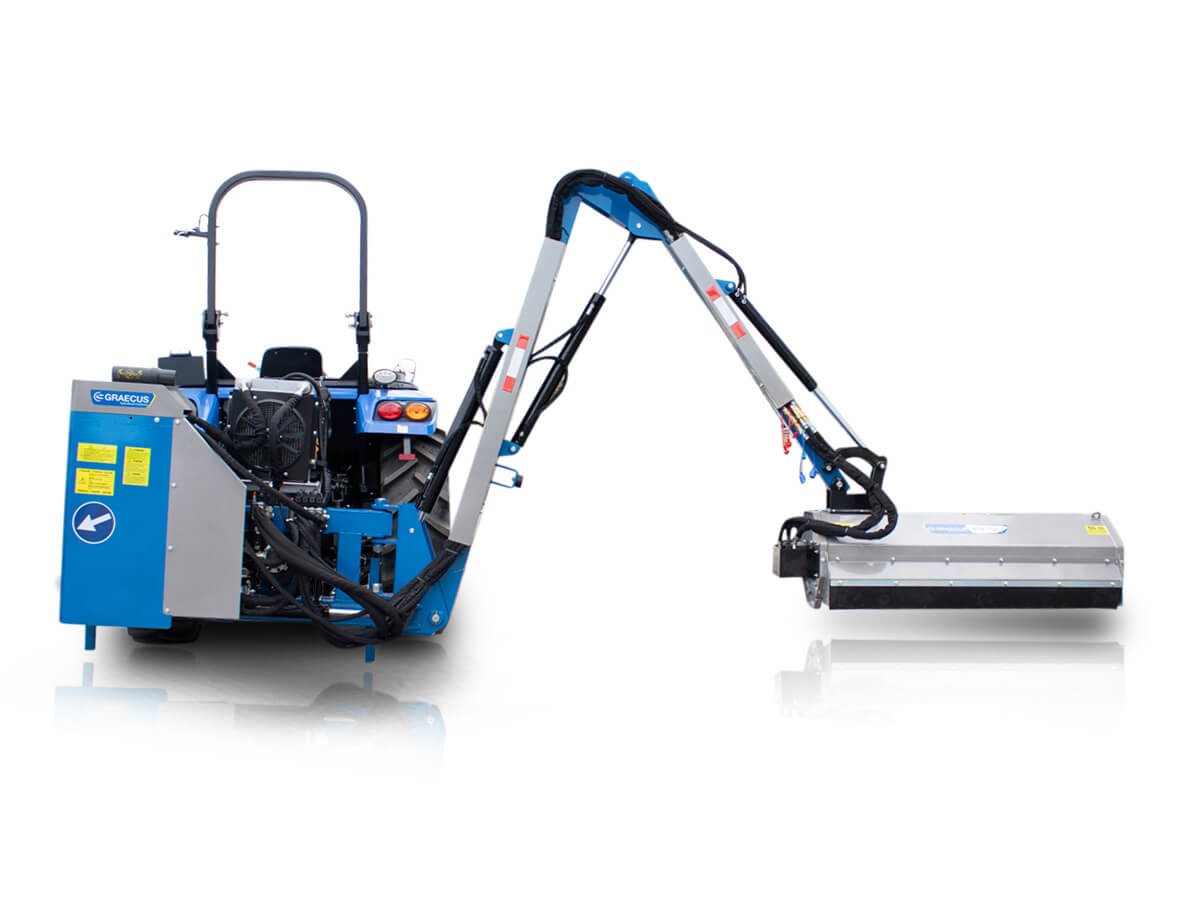

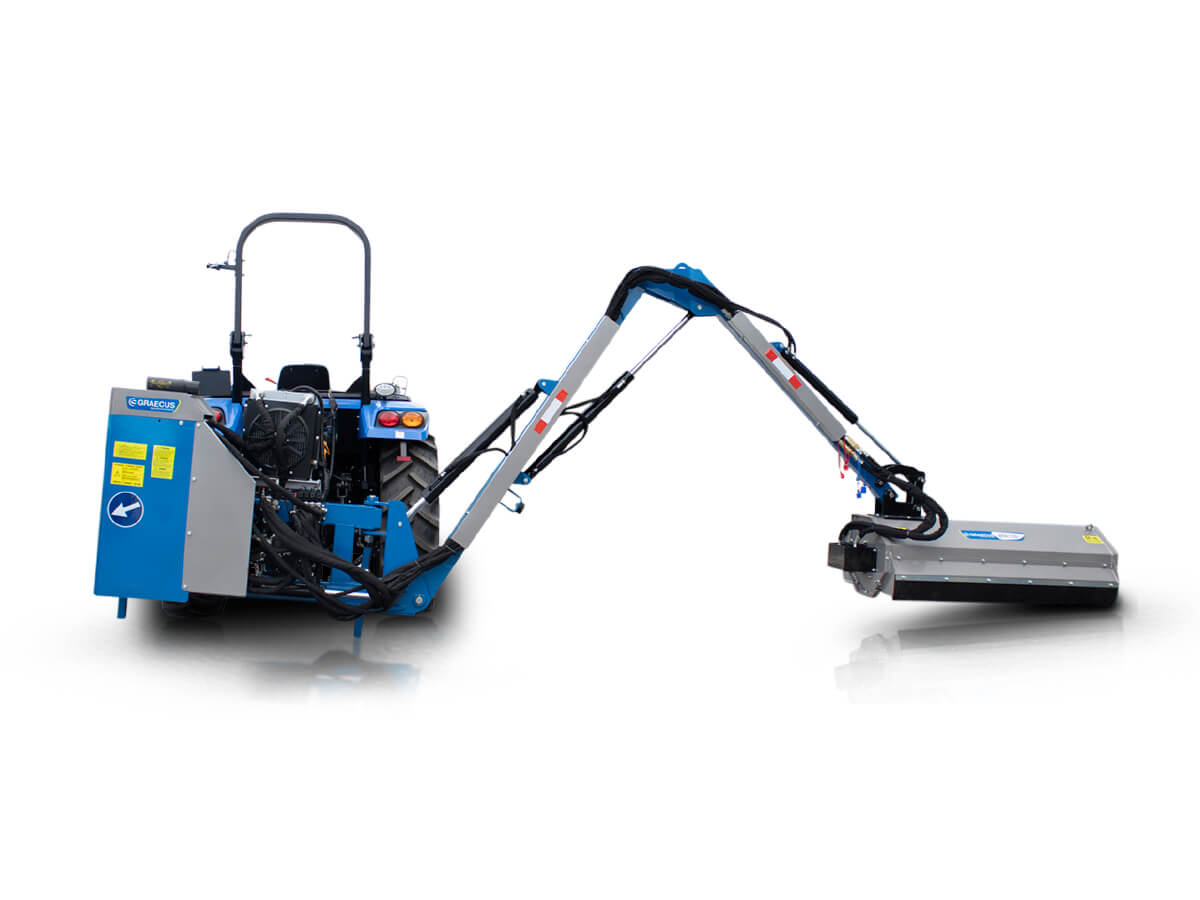

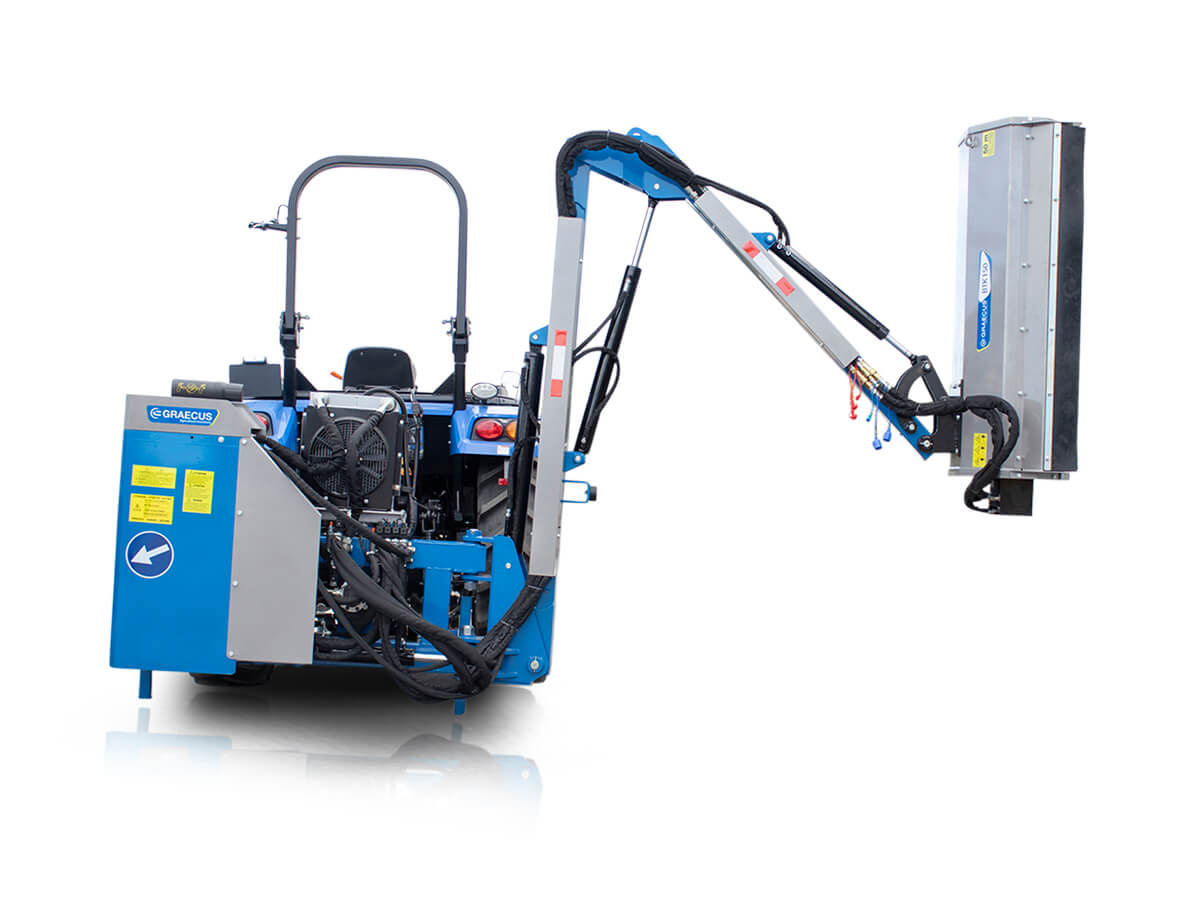

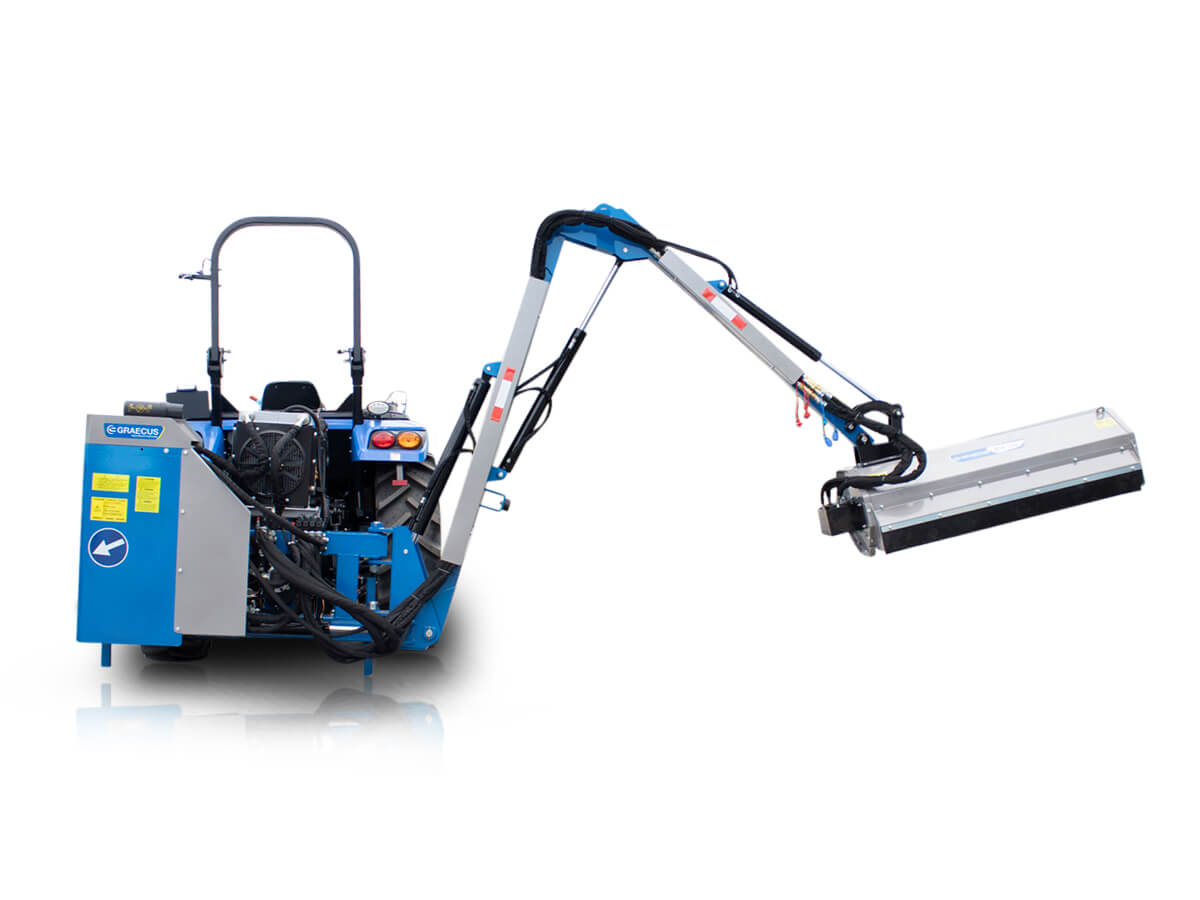

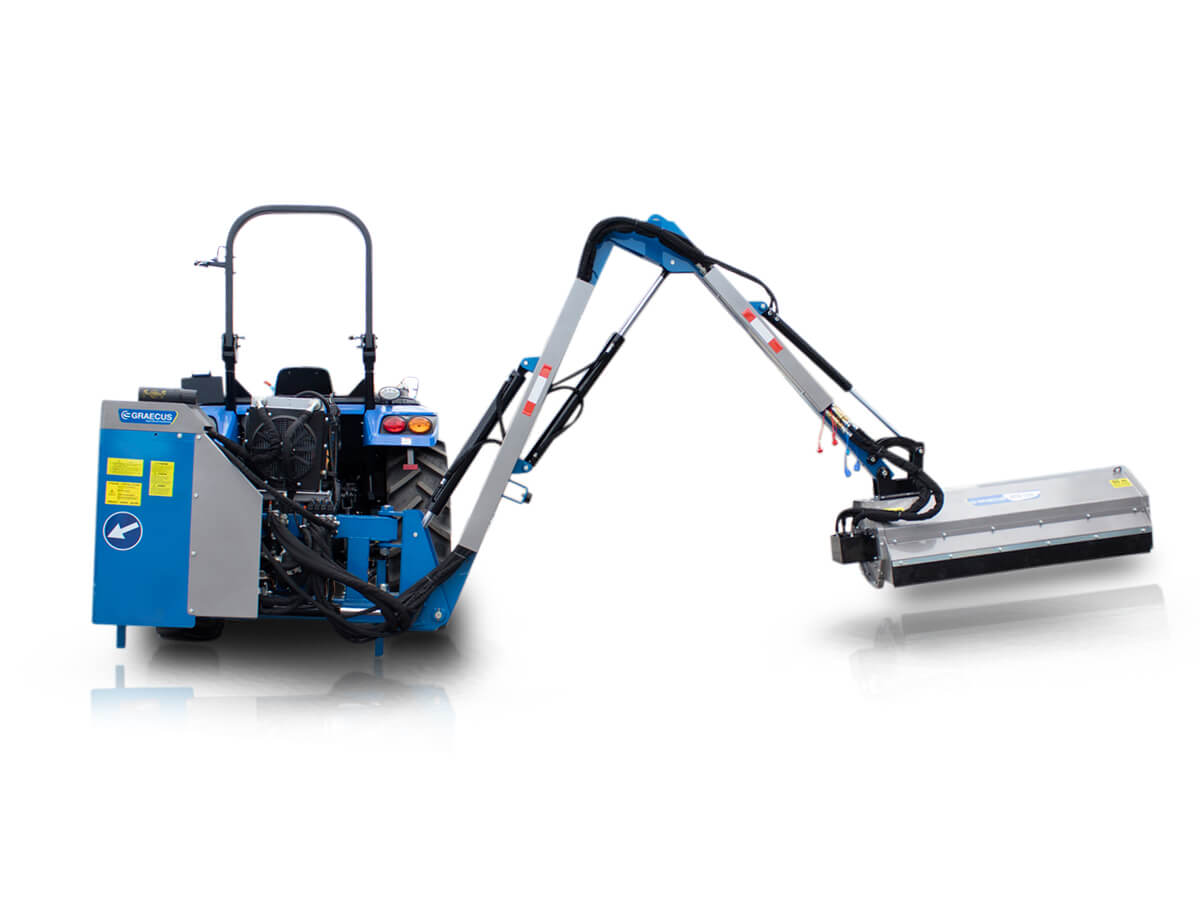

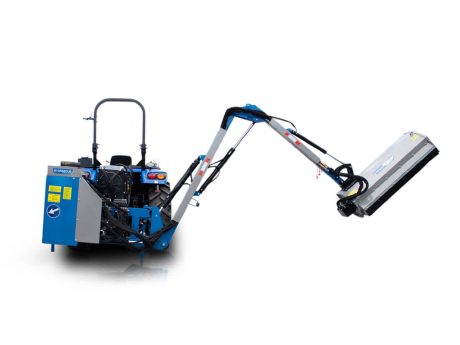

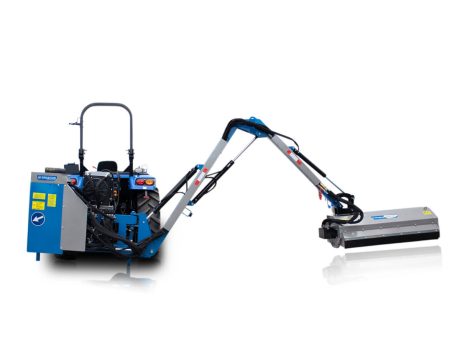

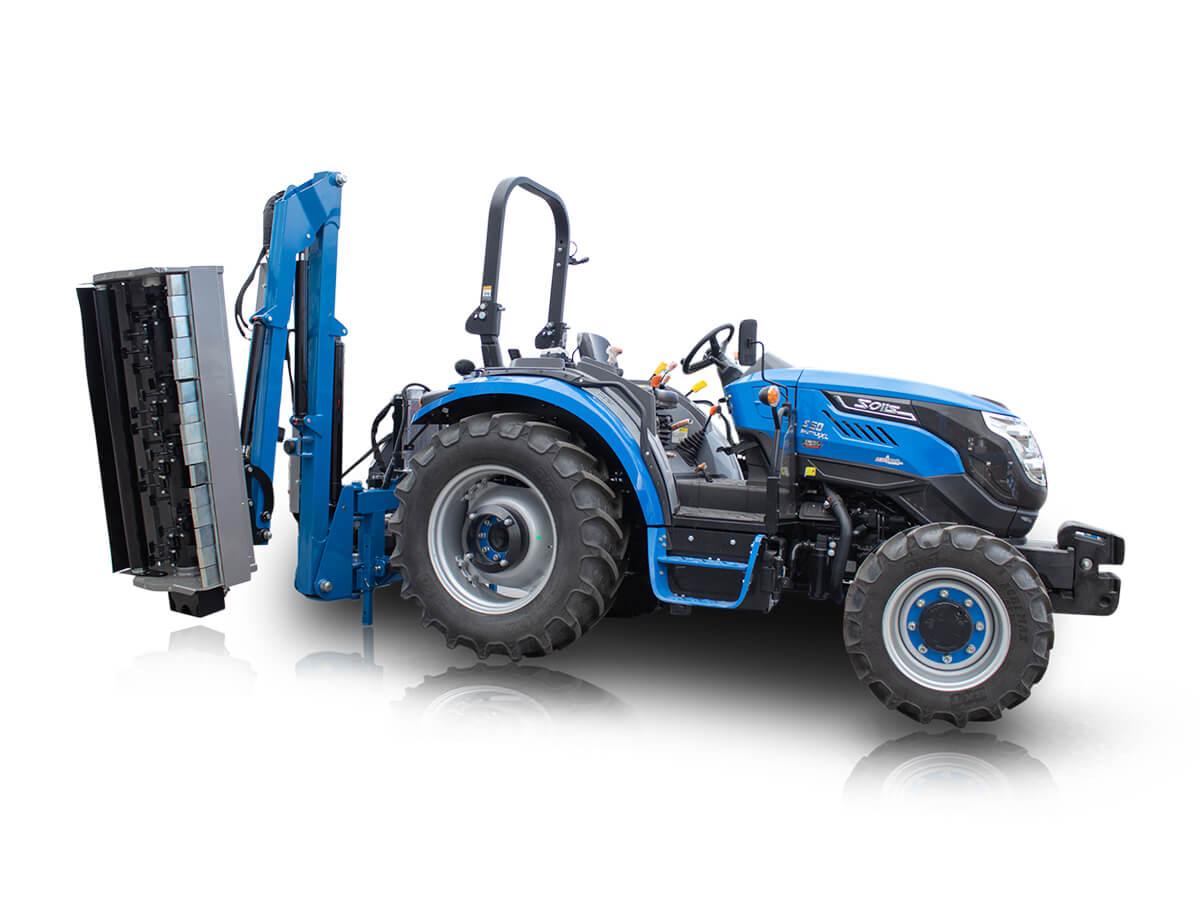

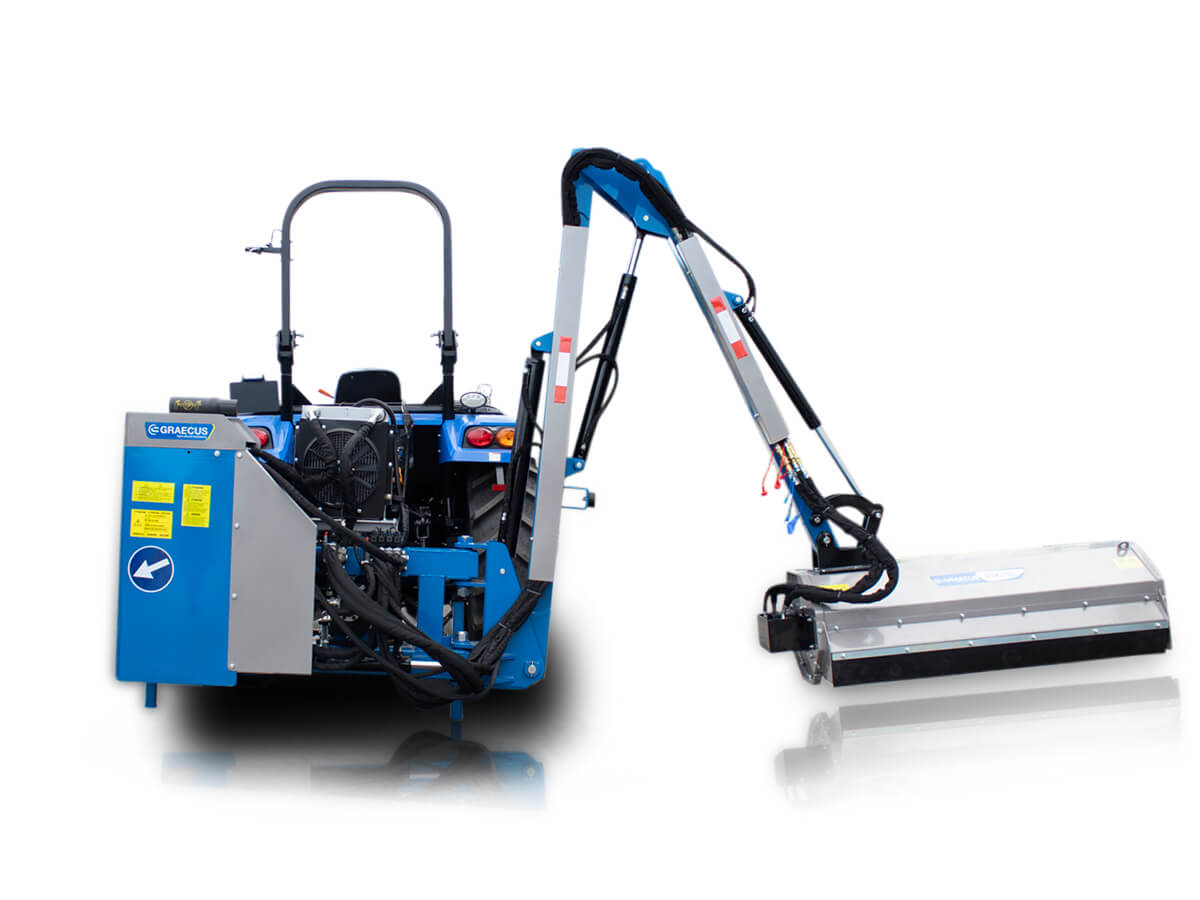

BTK150 – Heavy-duty telescopic arm flail mower with independent hydraulic system

???? Technical Specifications

  • Weight: 1185 kg

  • Power requirement: 85 HP

  • A (max horizontal reach): 6400 mm

  • B (vertical reach): 3000 mm

  • C (diagonal reach): 4700 mm

  • Arm movement angles:

    • α (horizontal): 180°

    • β (inner arm): 137°

    • γ (outer arm): 113°

  • Number of hammers: 28 pcs

  • Number of knives (optional): 56 pcs

  • Rotor: Ø127 mm, thickness 10 mm

  • Rear roller: Ø102 mm, thickness 4 mm

Available Upon Order , Contact Us for Pricing!
