Advantages and Features
  • CBK260 – Open-field flail mower for tractors

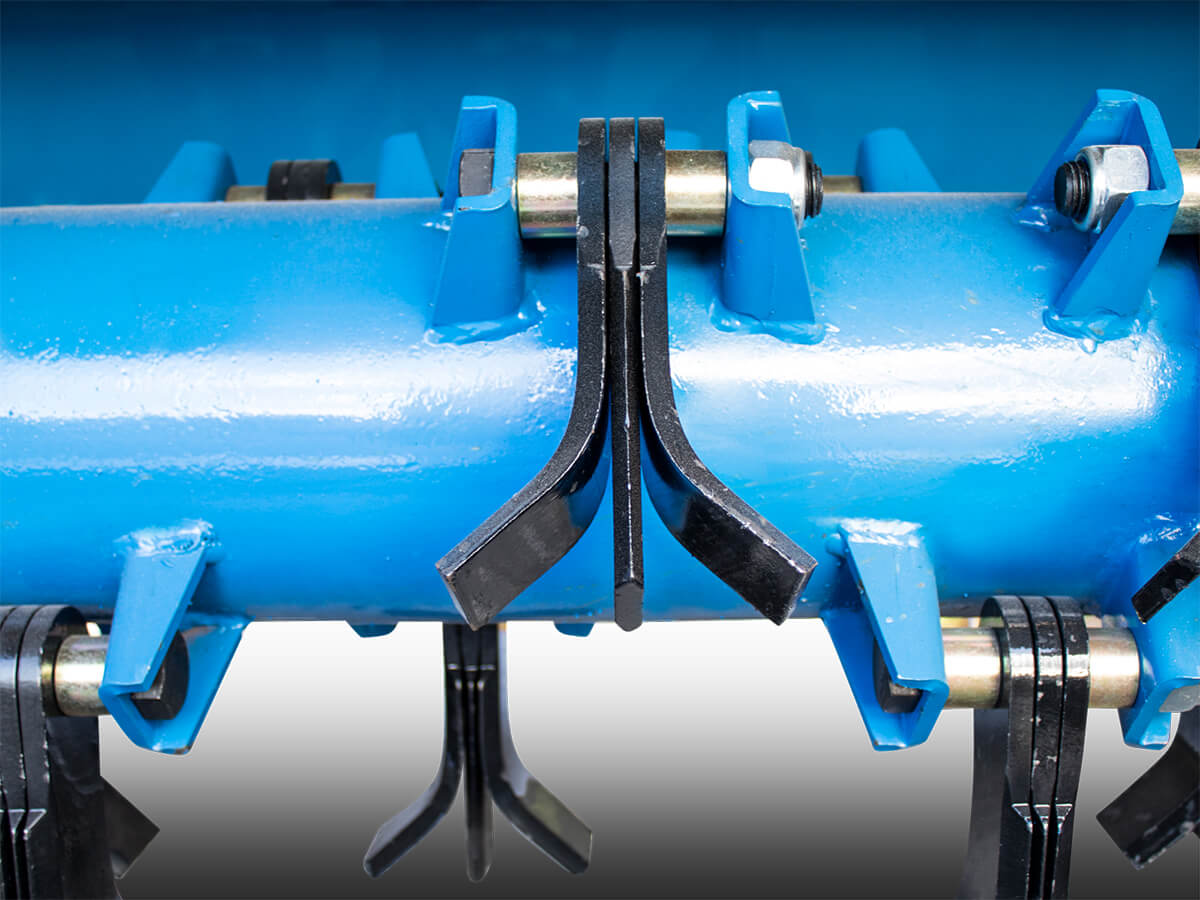

  • Heavy-duty triple hardened knives for ultra-fine cutting results

  • Reinforced gearbox (540 rpm) with heavy-duty crown and pinion and overrunning clutch

  • Long-life SKF bearings

  • Rear opening door with internal deflectors for even material discharge

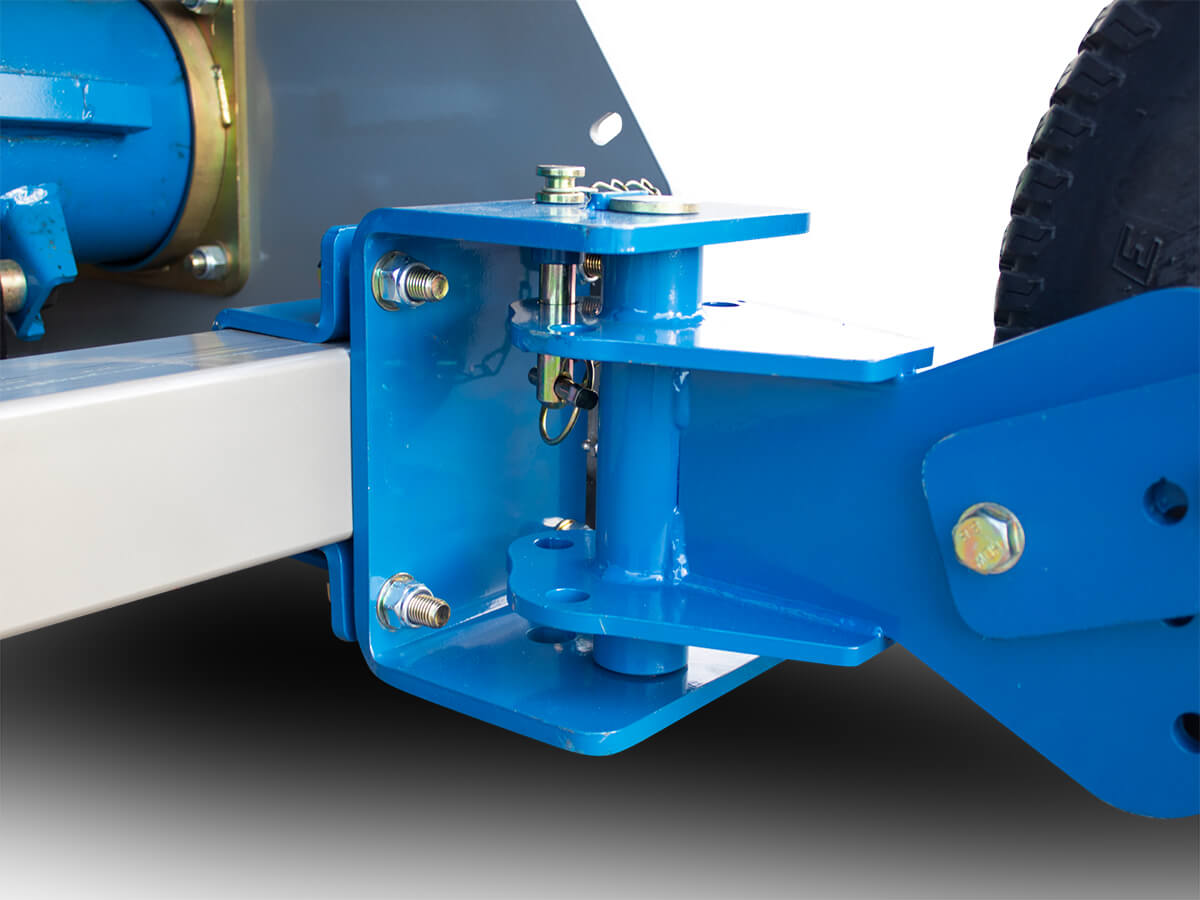

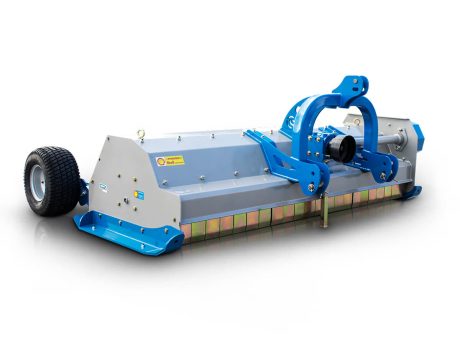

  • Rear-mounted wheels for improved ground contour following and depth control

  • Rear adjustable collecting blades

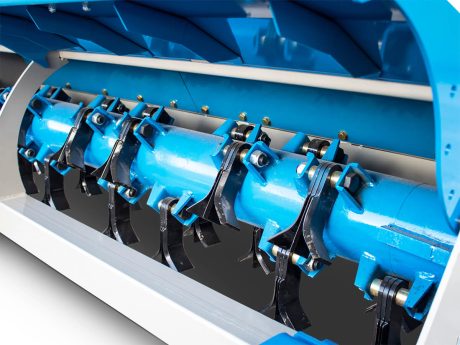

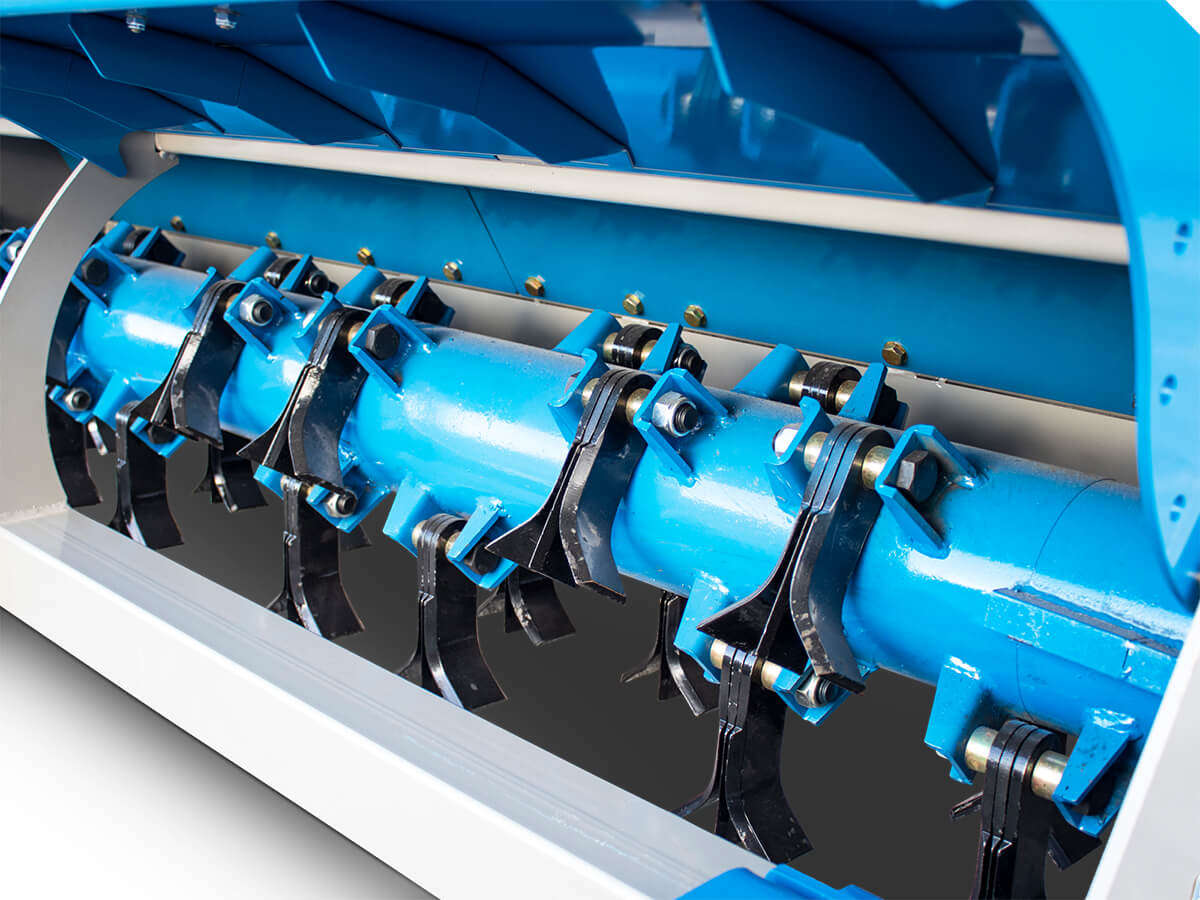

  • Digitally balanced rotor mounted with 7-hole flange bearings for optimal performance

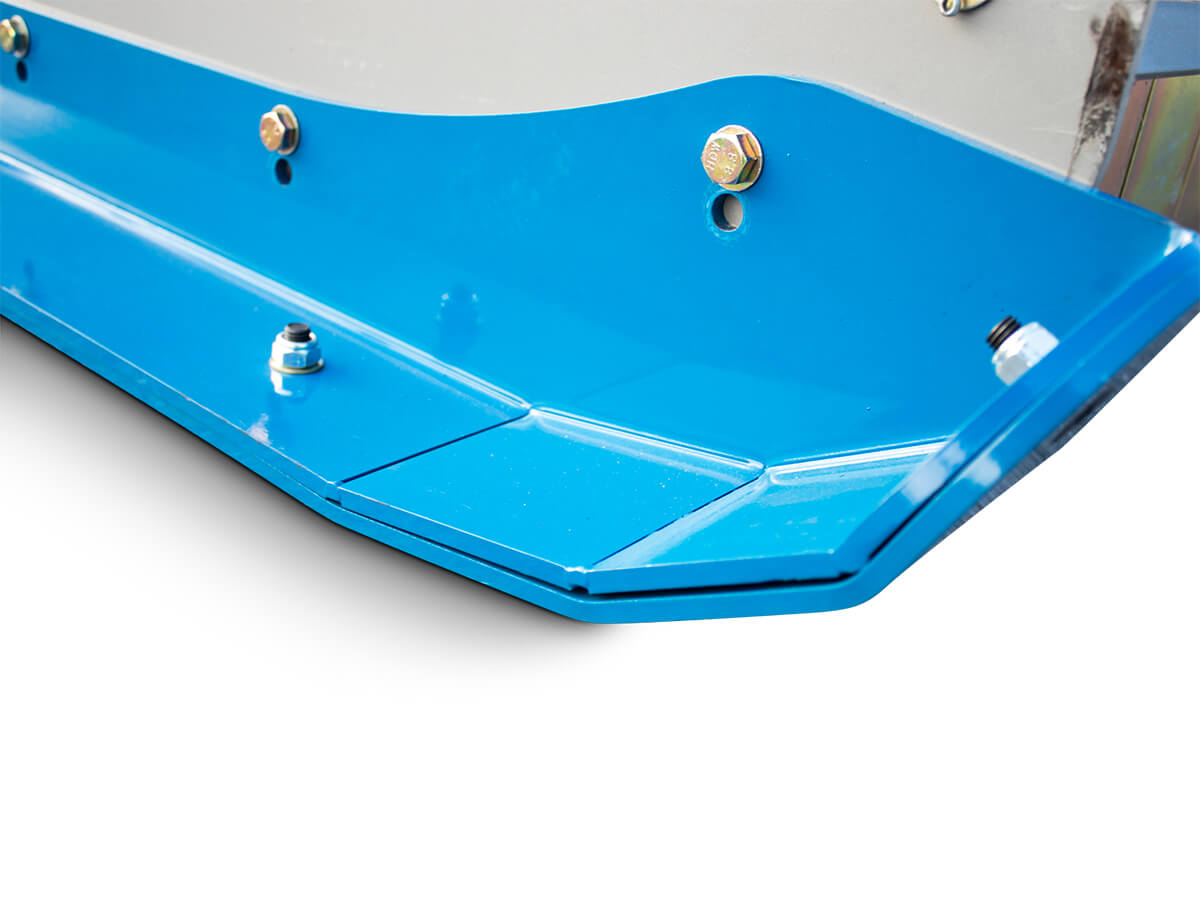

  • Working height adjustable via skids/slides

  • Rear adjustable roller with integrated scraper

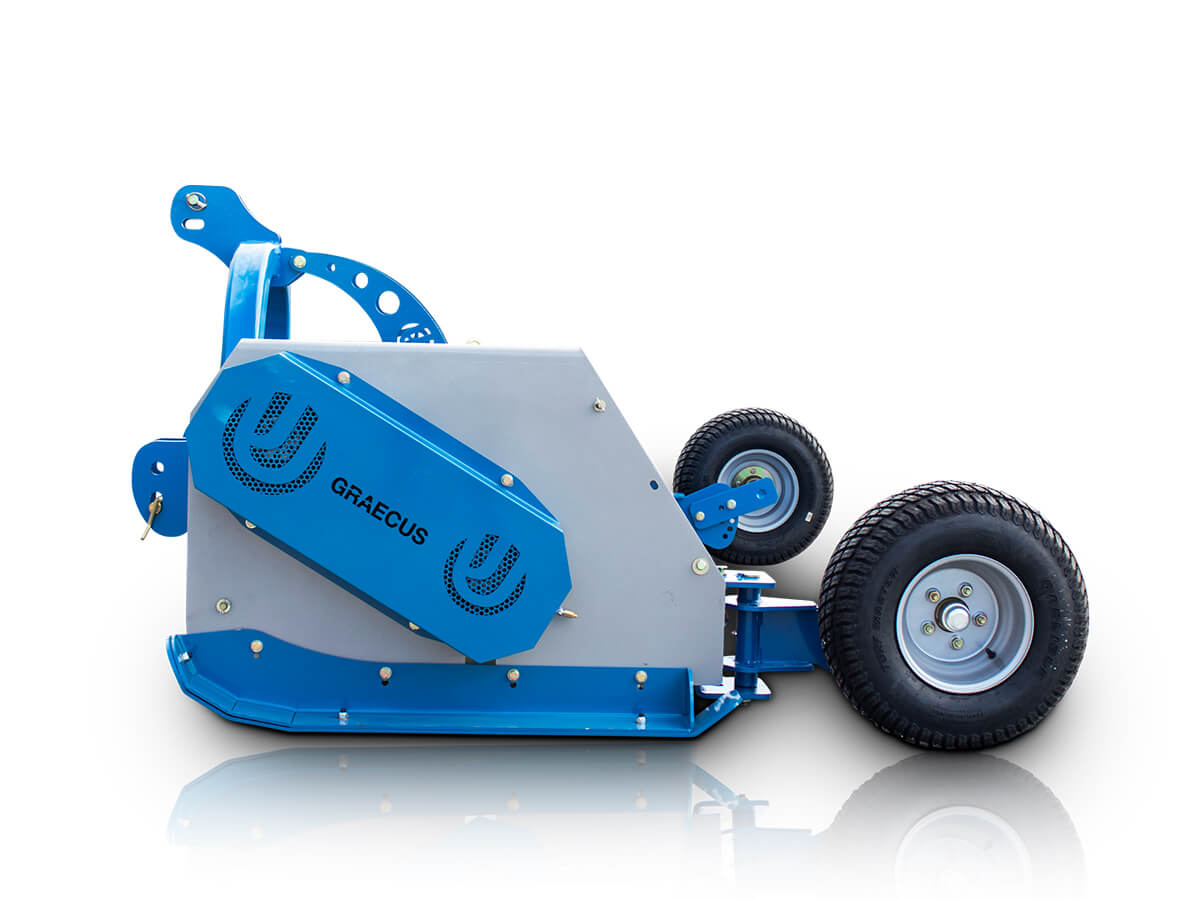

  • Power transmission via 5 toothed belts and external tensioner

  • Double 3-point linkage – Category II (ø 19.0–22.0 mm)

  • European CE safety certification

???? PTO shaft T5-100 with plastic cover included in the price

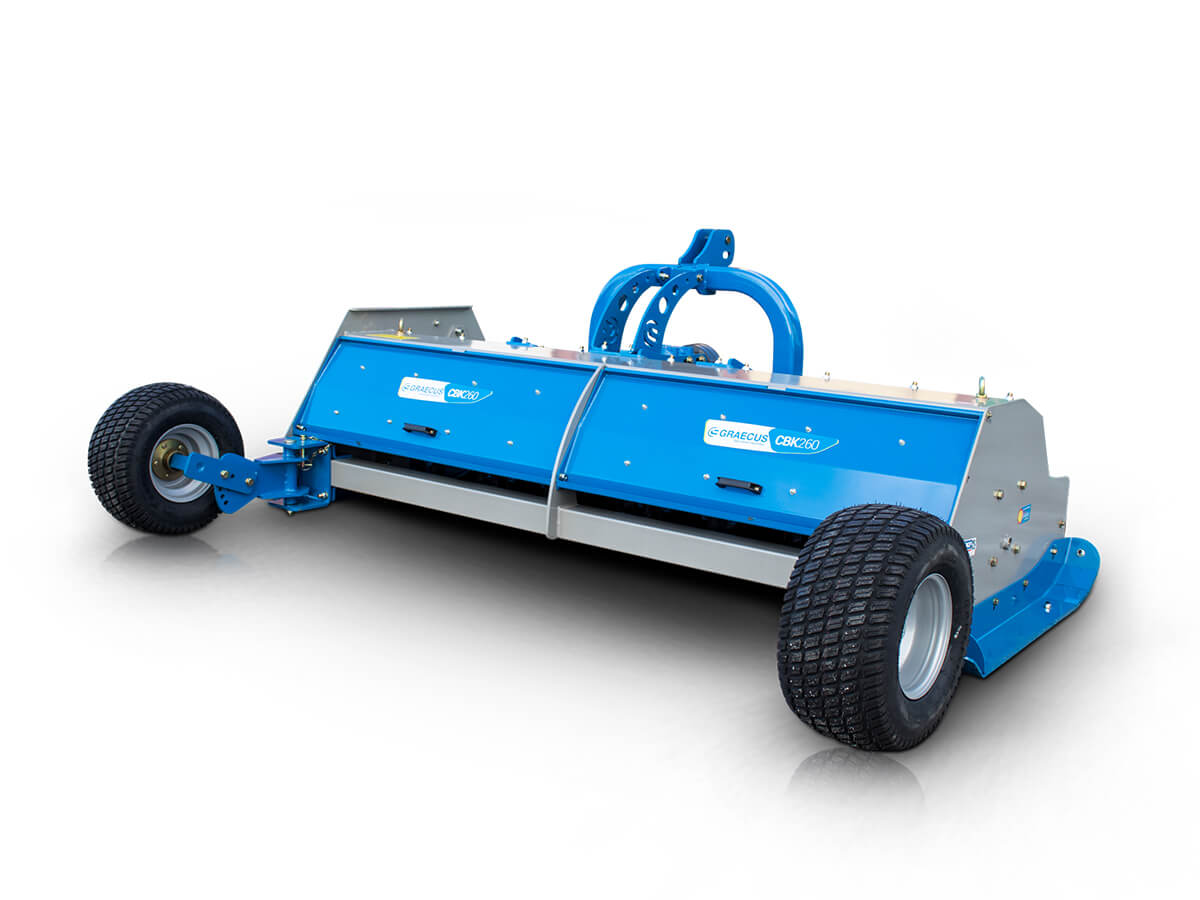

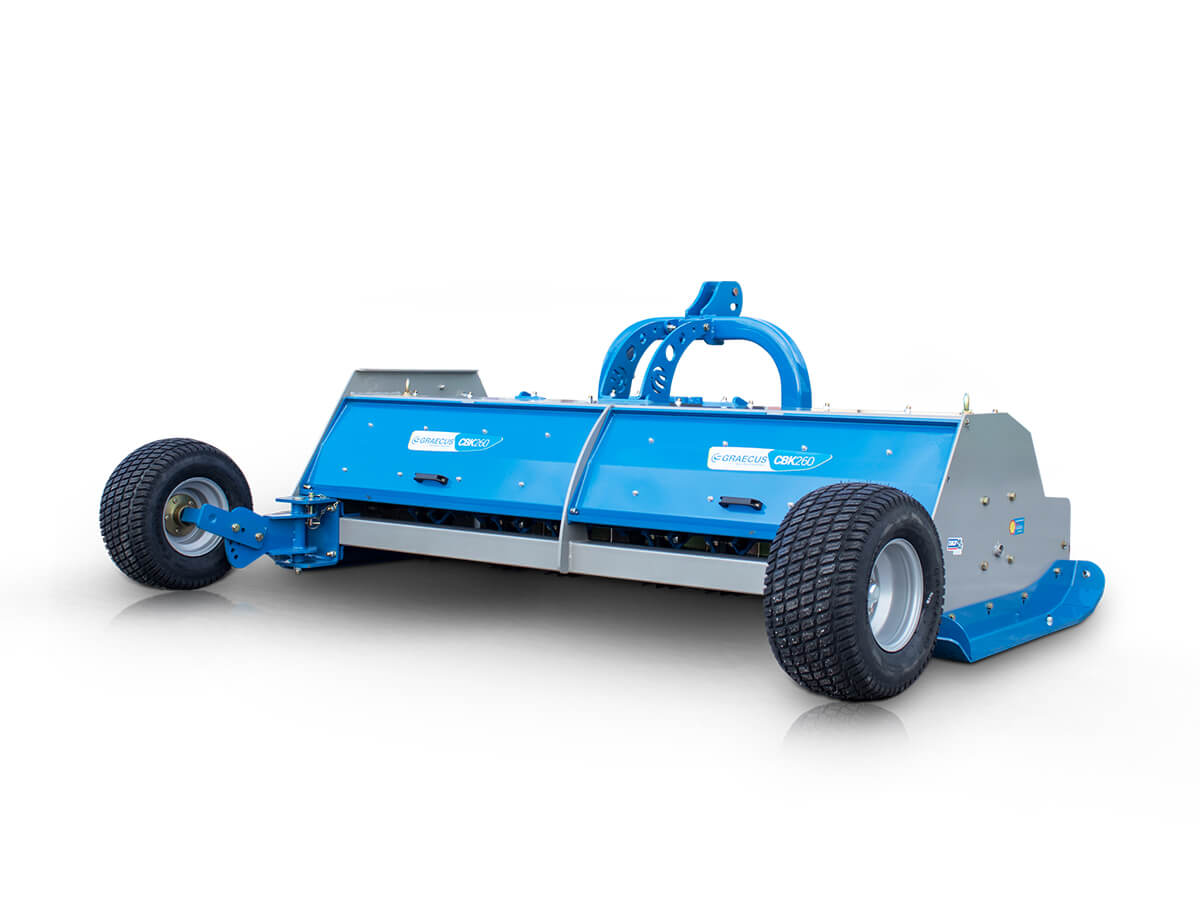

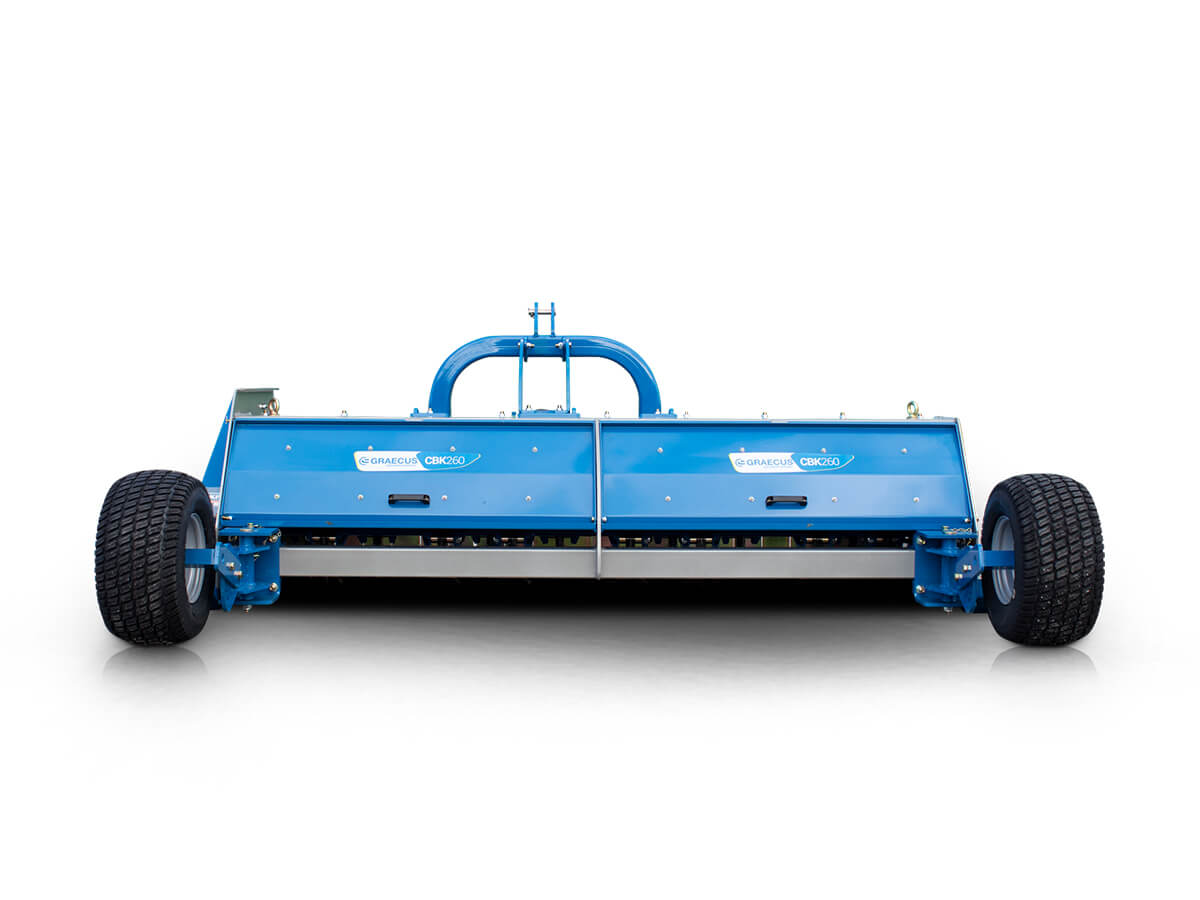

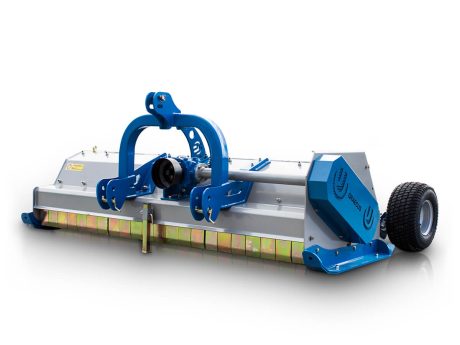

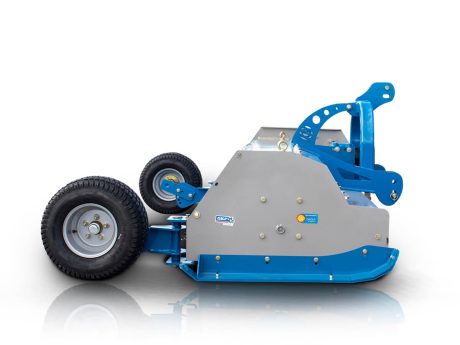

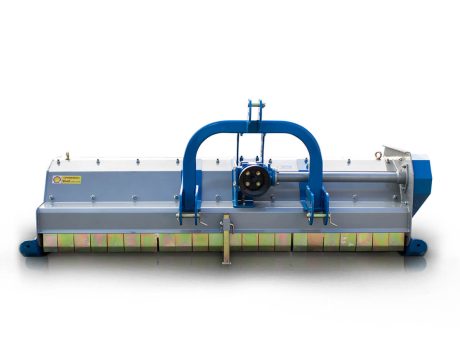

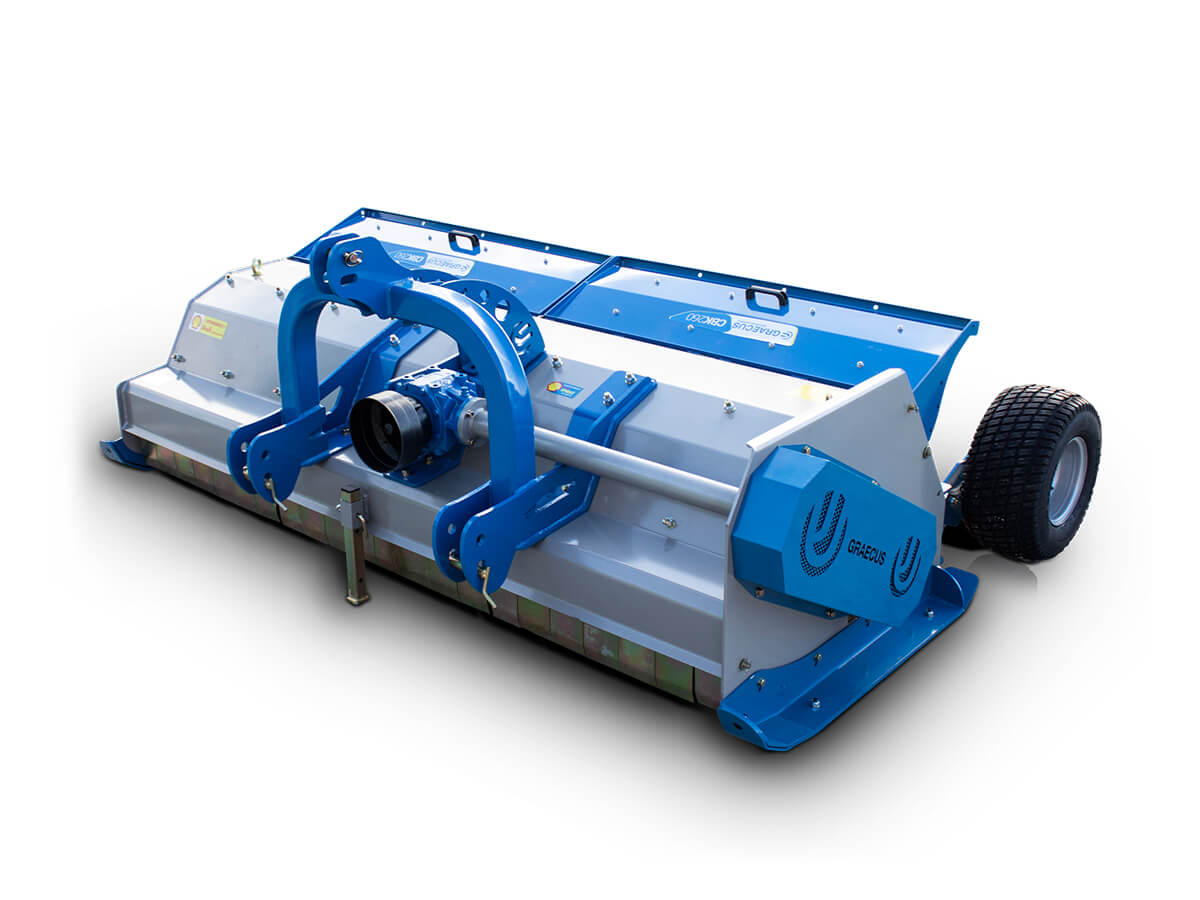

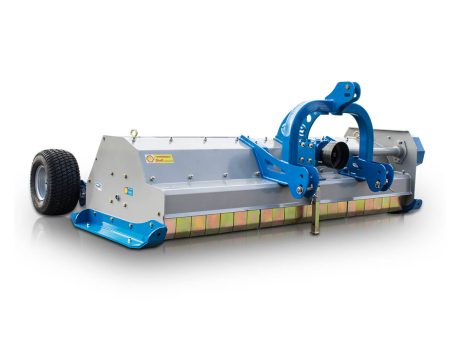

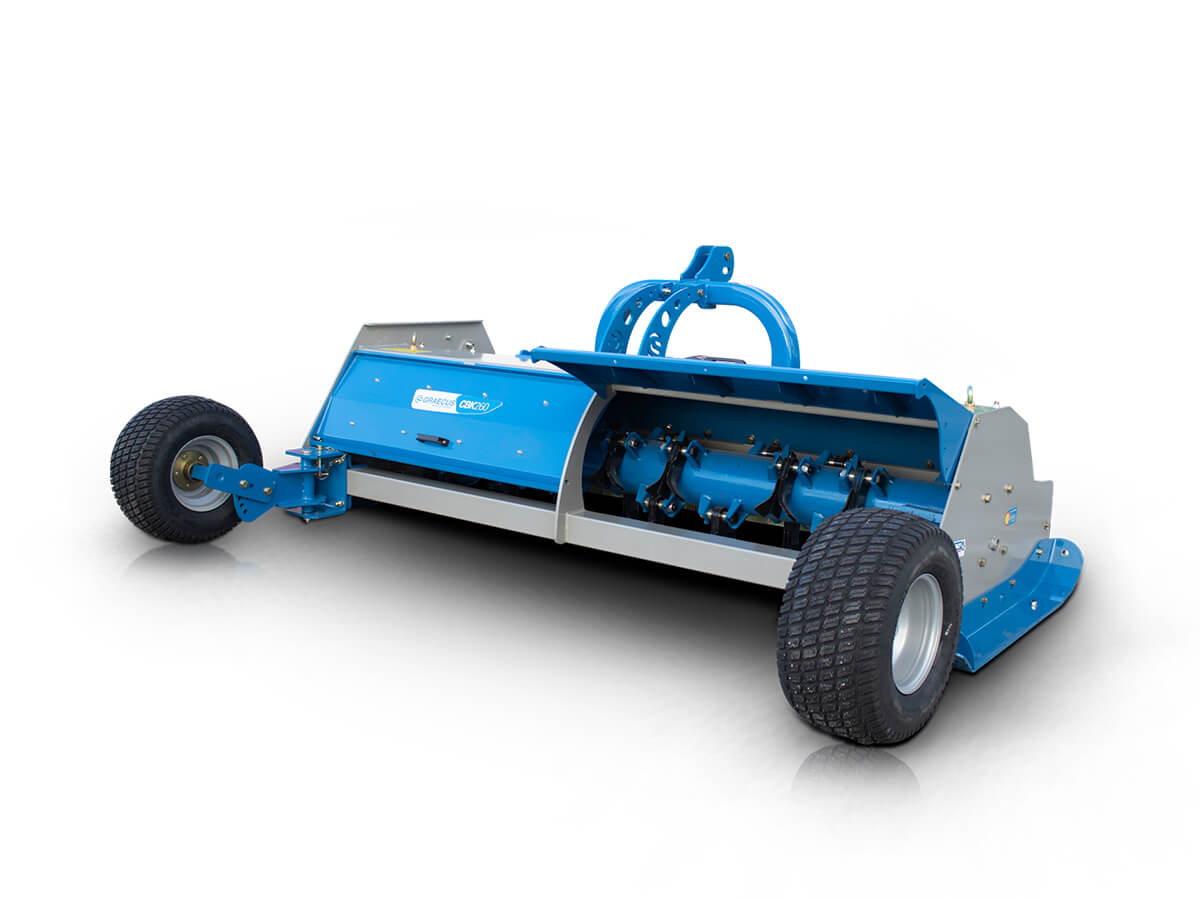

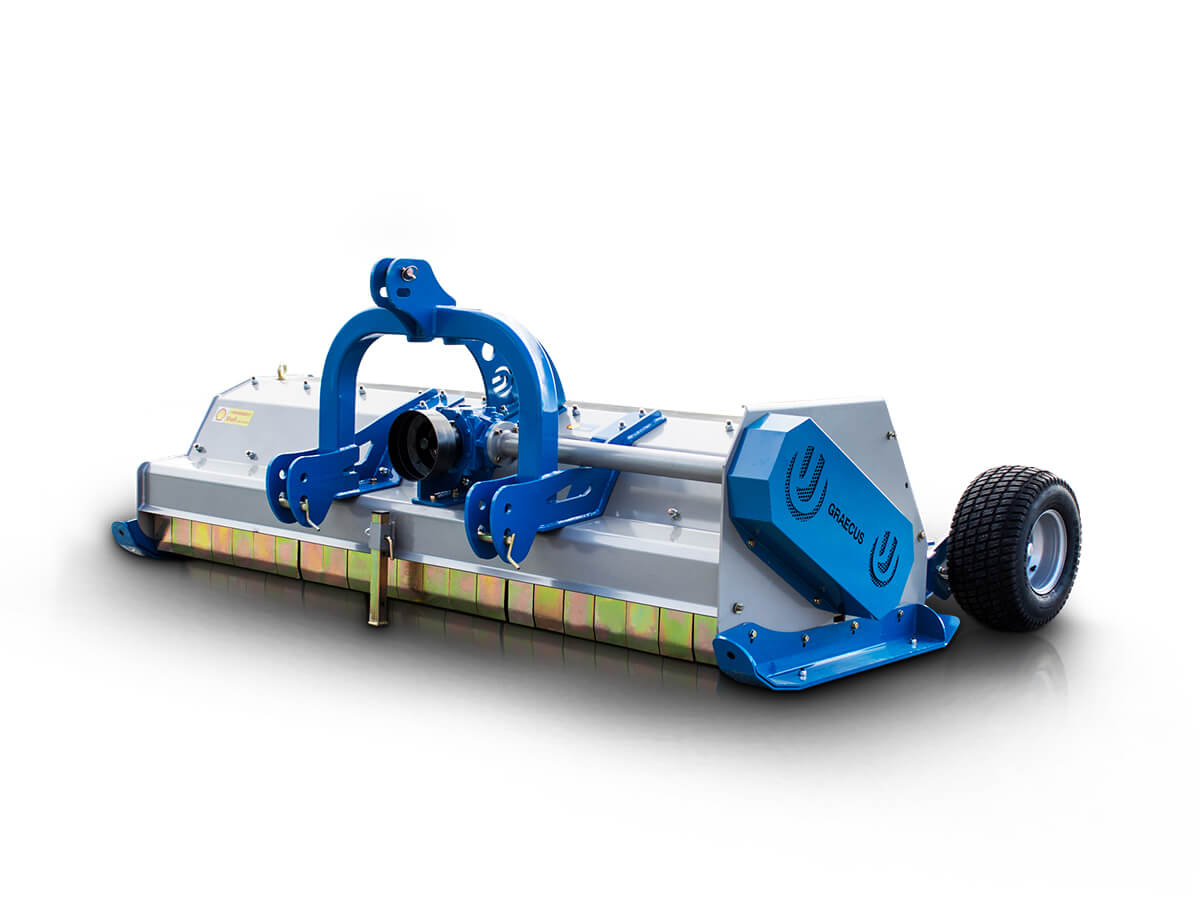

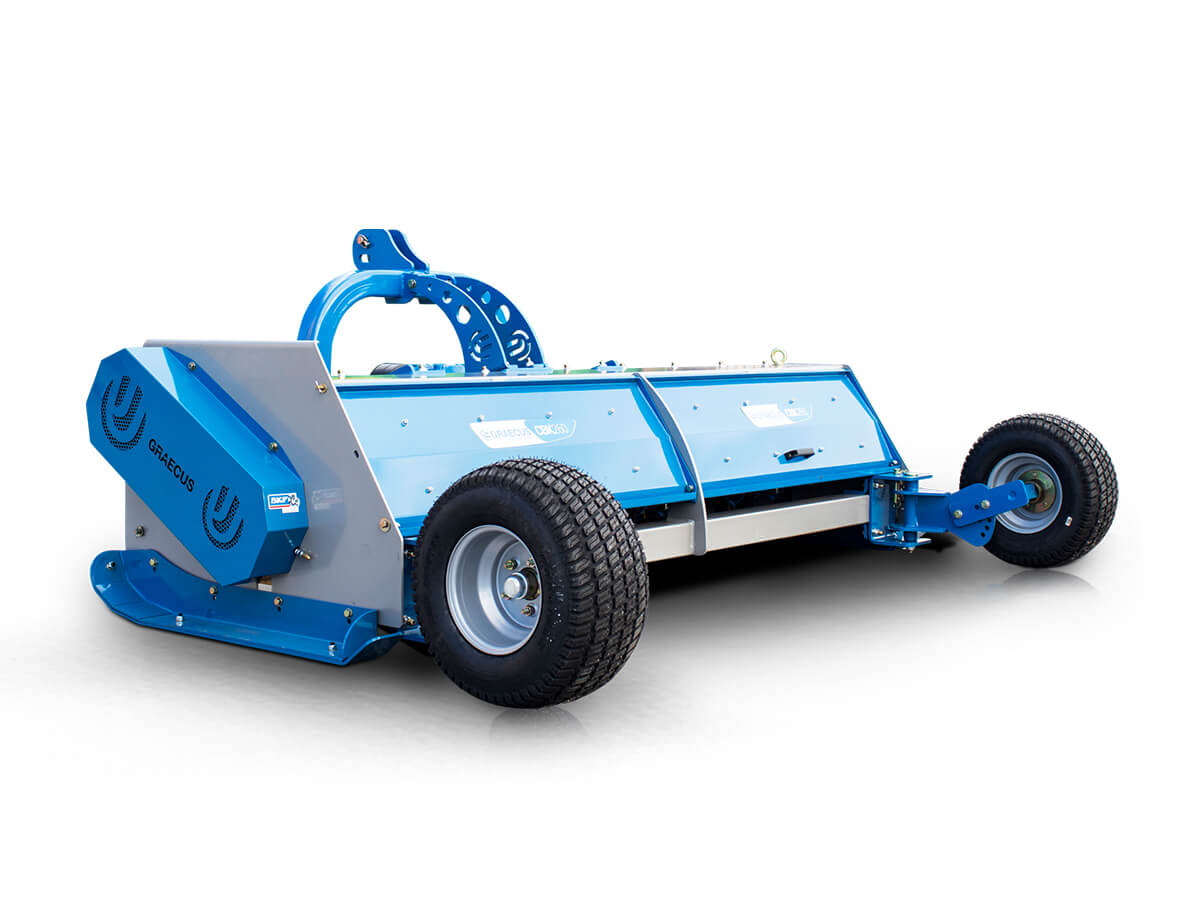

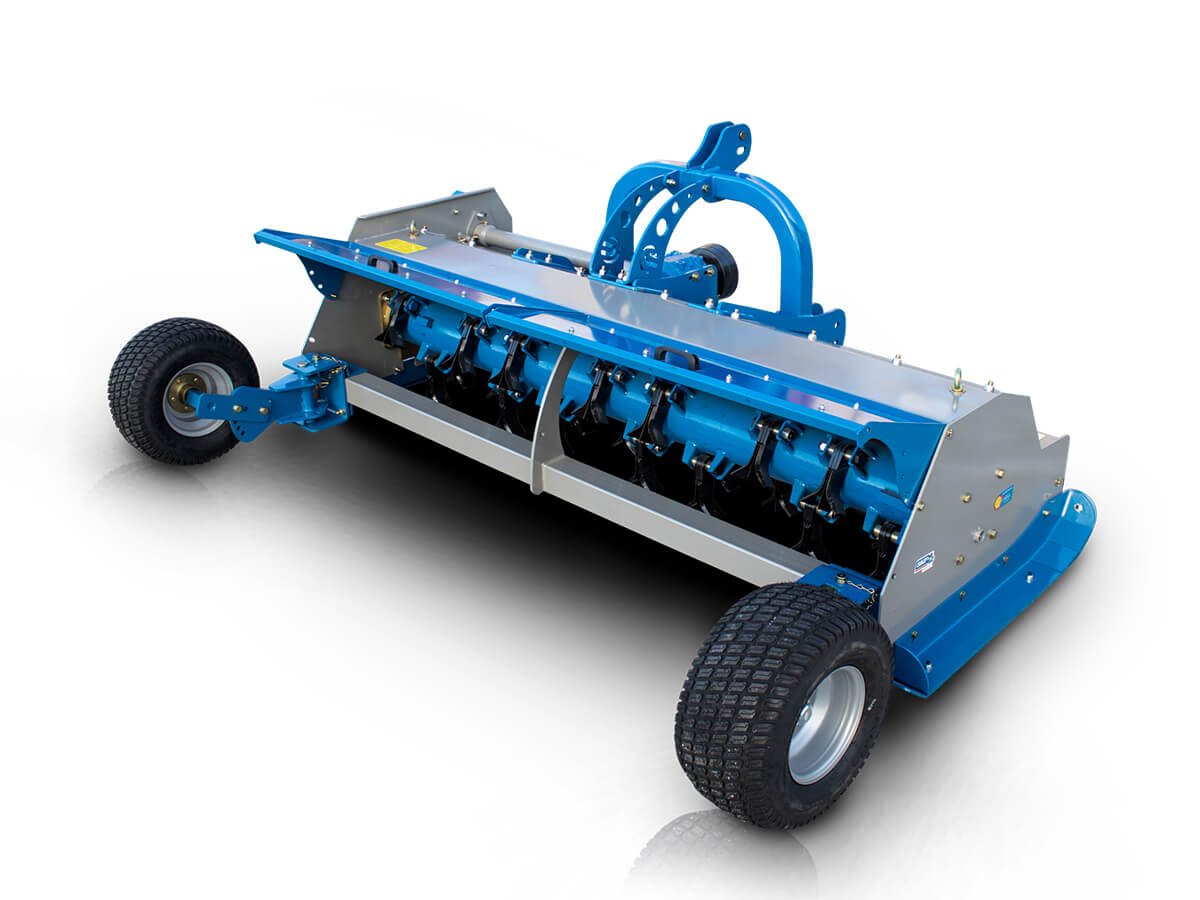

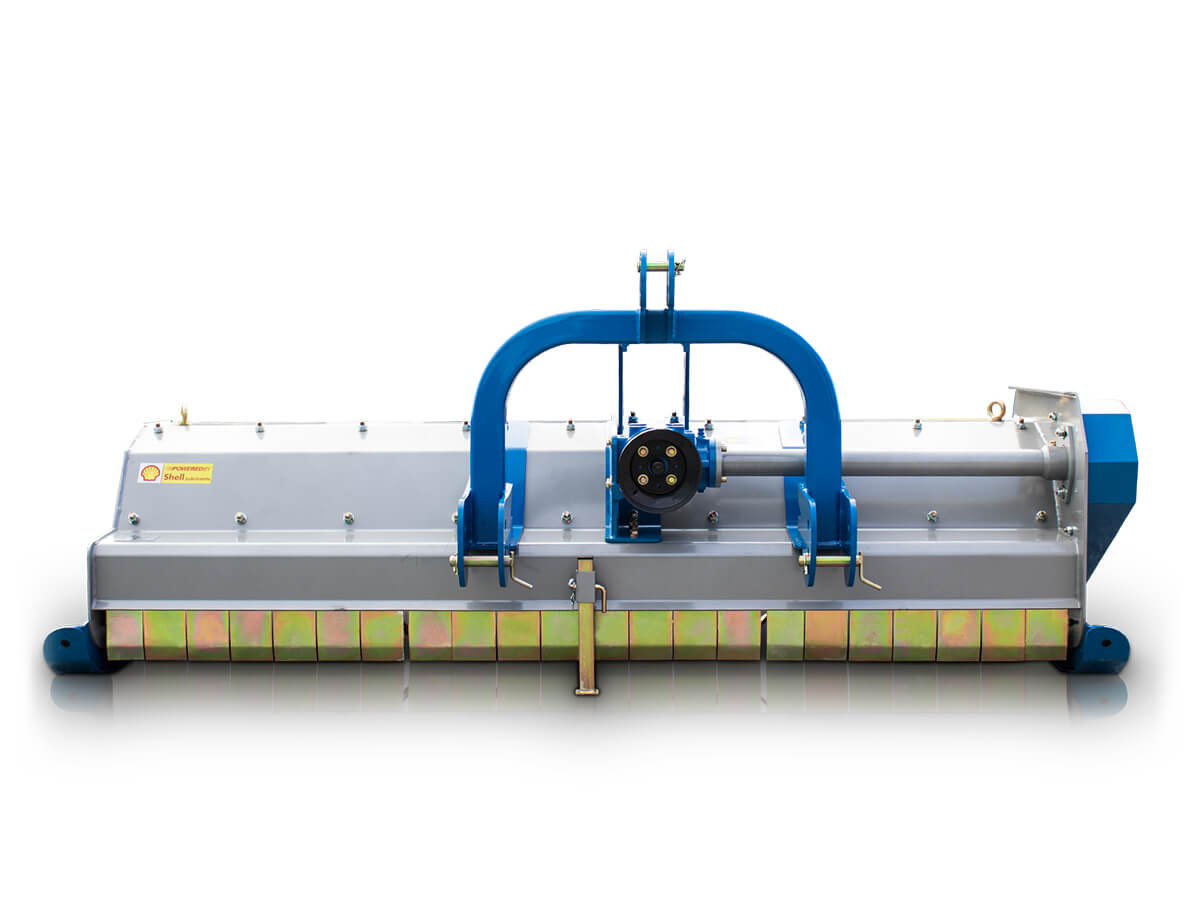

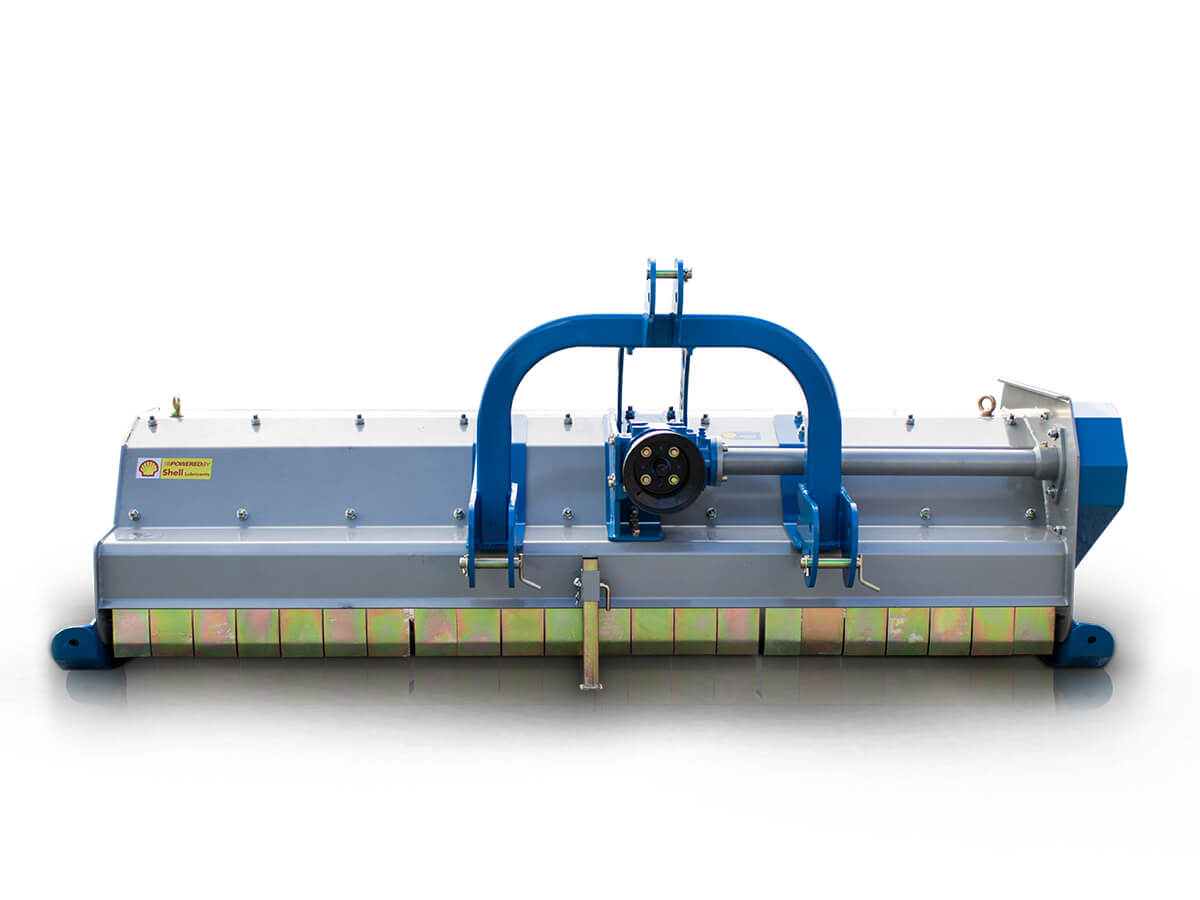

CBK260 Heavy-Duty Flail Mower

???? Technical Specifications

  • Weight: 1000 kg

  • Power requirement: 75 – 140 HP

  • Overall width: 3050 mm

  • Length: 1020 mm

  • Height: 890 mm

  • Working width: 2600 mm

  • Lateral offset:

    • Left: 1300 mm

    • Right: 1300 mm

  • Number of knives: 84 pcs

  • Rotor dimensions: Ø203 mm, thickness 12 mm

  • Belts: 5 pcs

Available Upon Order , Contact Us for Pricing!
