Advantages and Features
  • Base with a single hydraulic folding arm, reversible for left or right side operation

  • Quick couplers for easy accessory attachment

  • Adjustable working height via wheels

  • Support base

  • International three-point hitch – Category II (ø 25.0–28.0 mm)

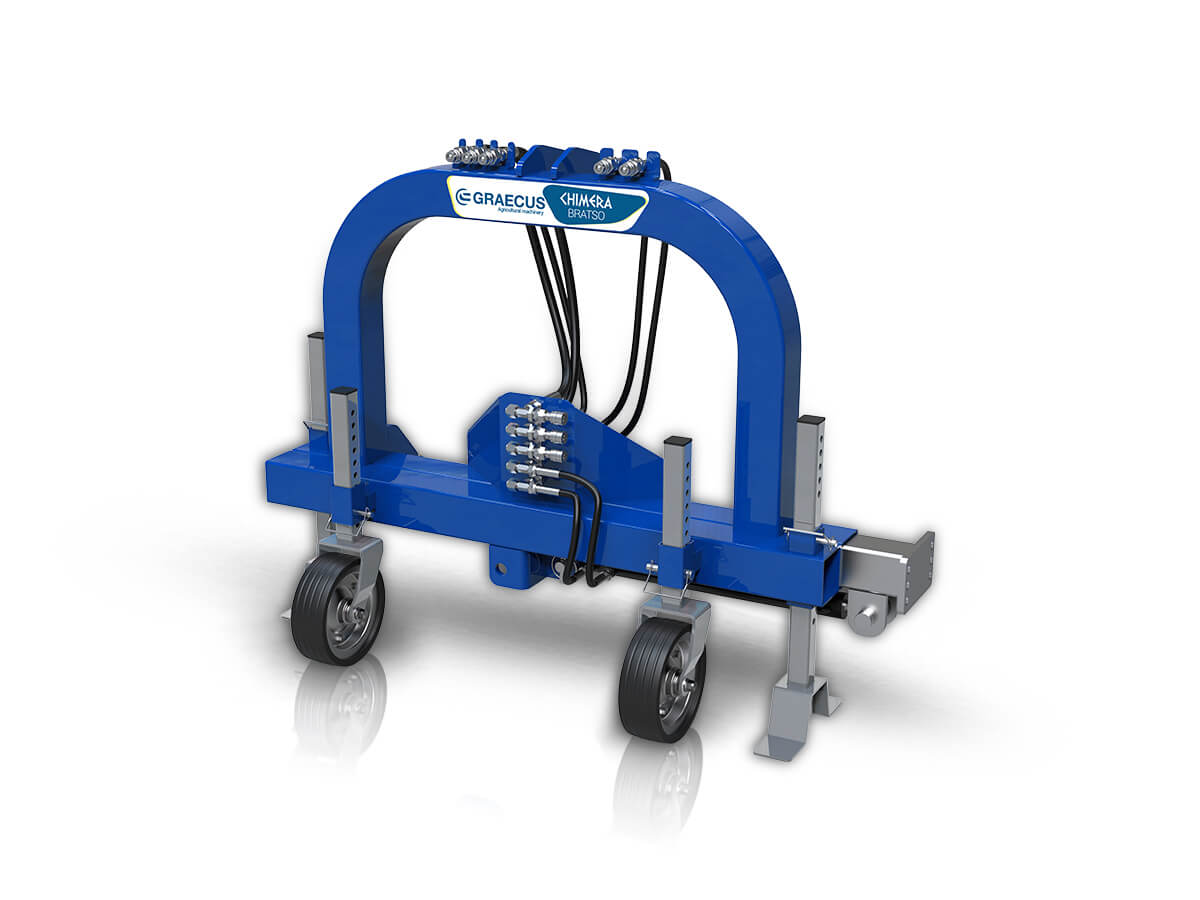

CHIMERA BRATSO SH120 Reversible Hydraulic Arm Base

                                  Technical Specifications

Specification Value
Weight 155 kg
Horsepower
Width 1464 mm
Length 503 mm
Height 1120 mm
Side Shift (left or right) ← mm 1200/732 || 732/1200 mm →

Available upon order. Please contact us for pricing.
