Advantages and Features

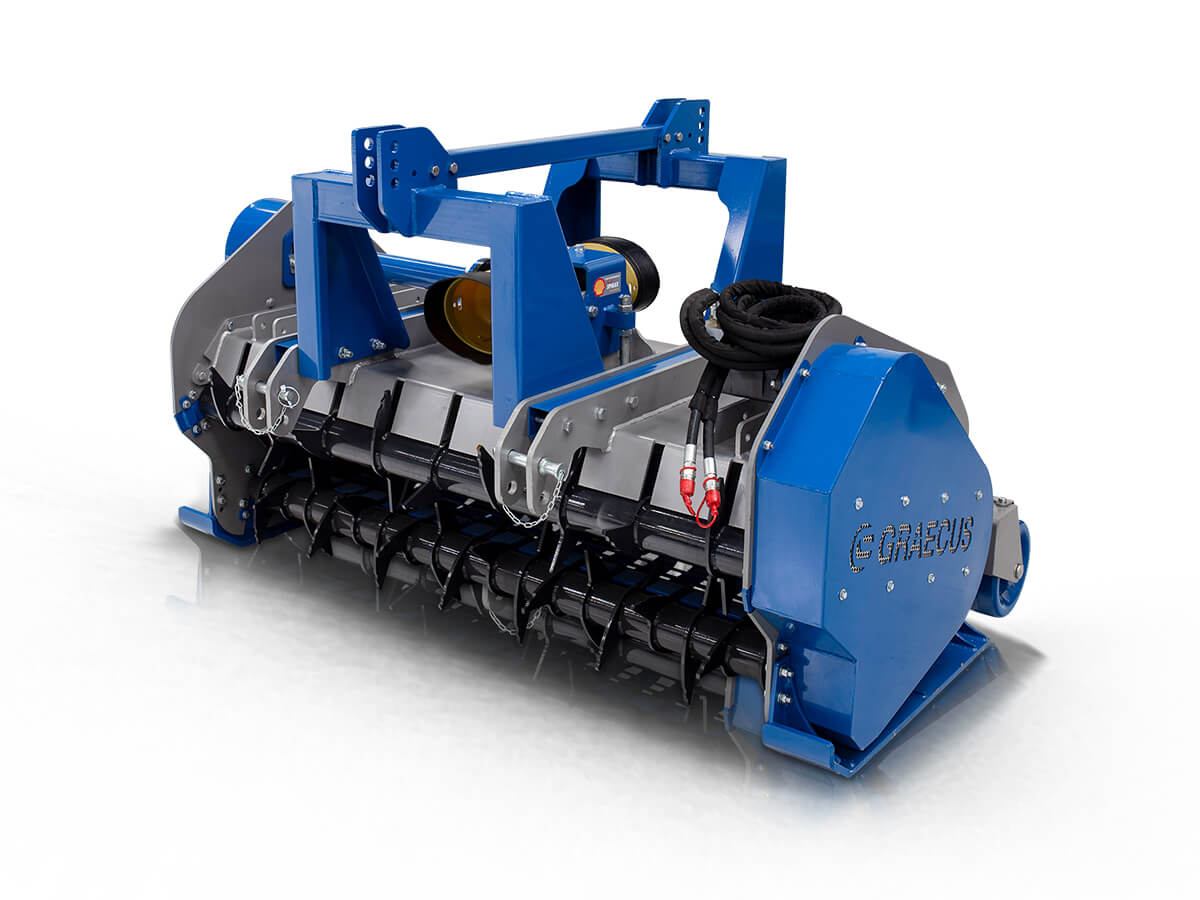

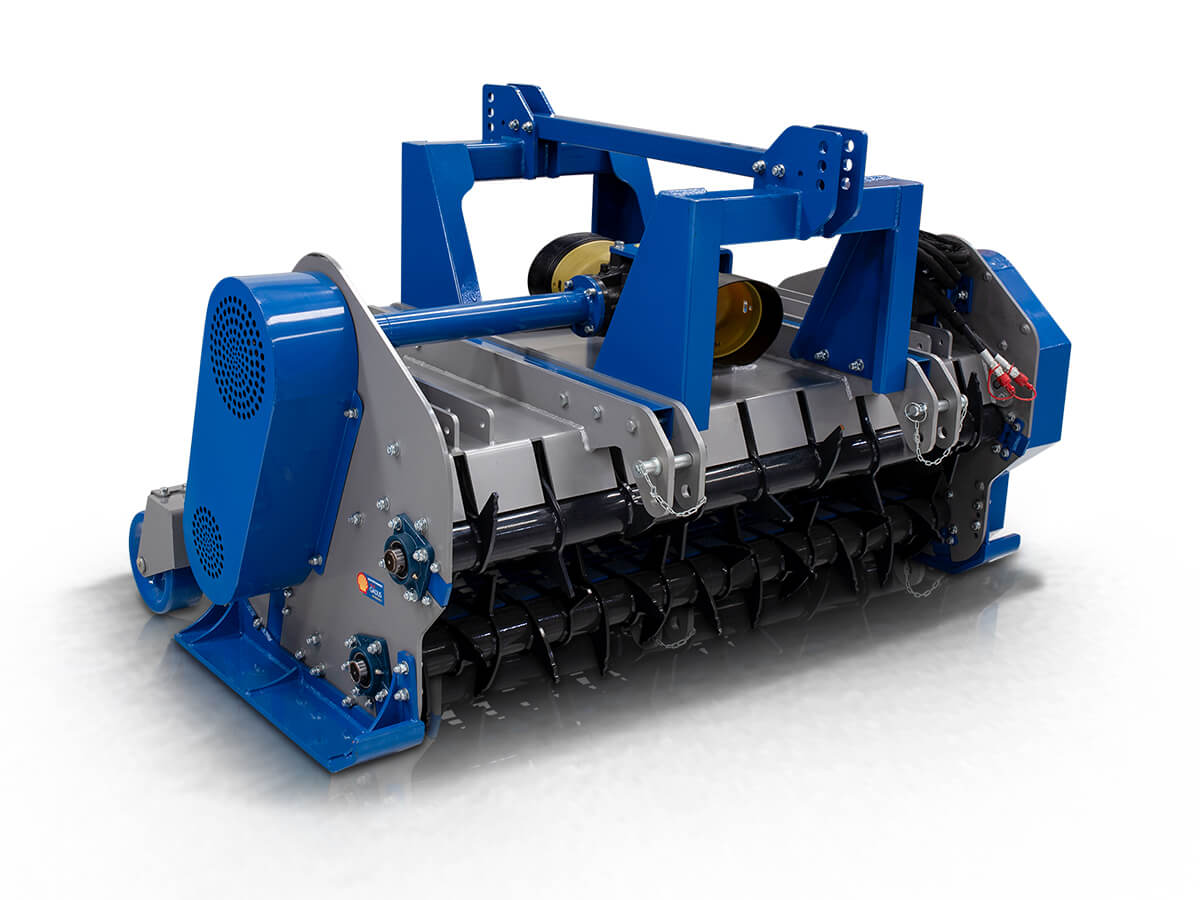

  • Dual hydraulic branch feeder rollers

  • Unbreakable 1440g hammers, suitable for branches up to 8 cm in diameter

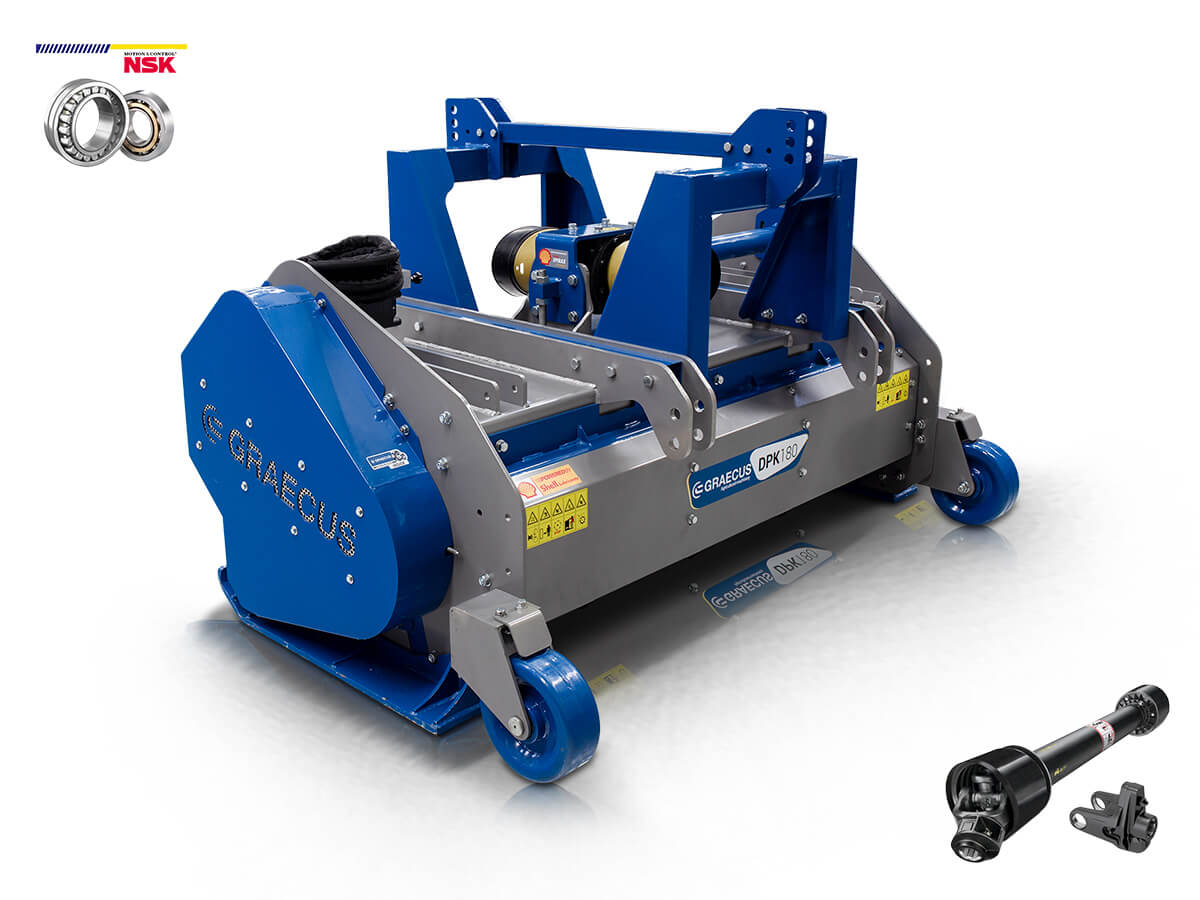

  • Long-life external NSK bearings

  • Upper and lower counter blades ensure maximum shredding efficiency

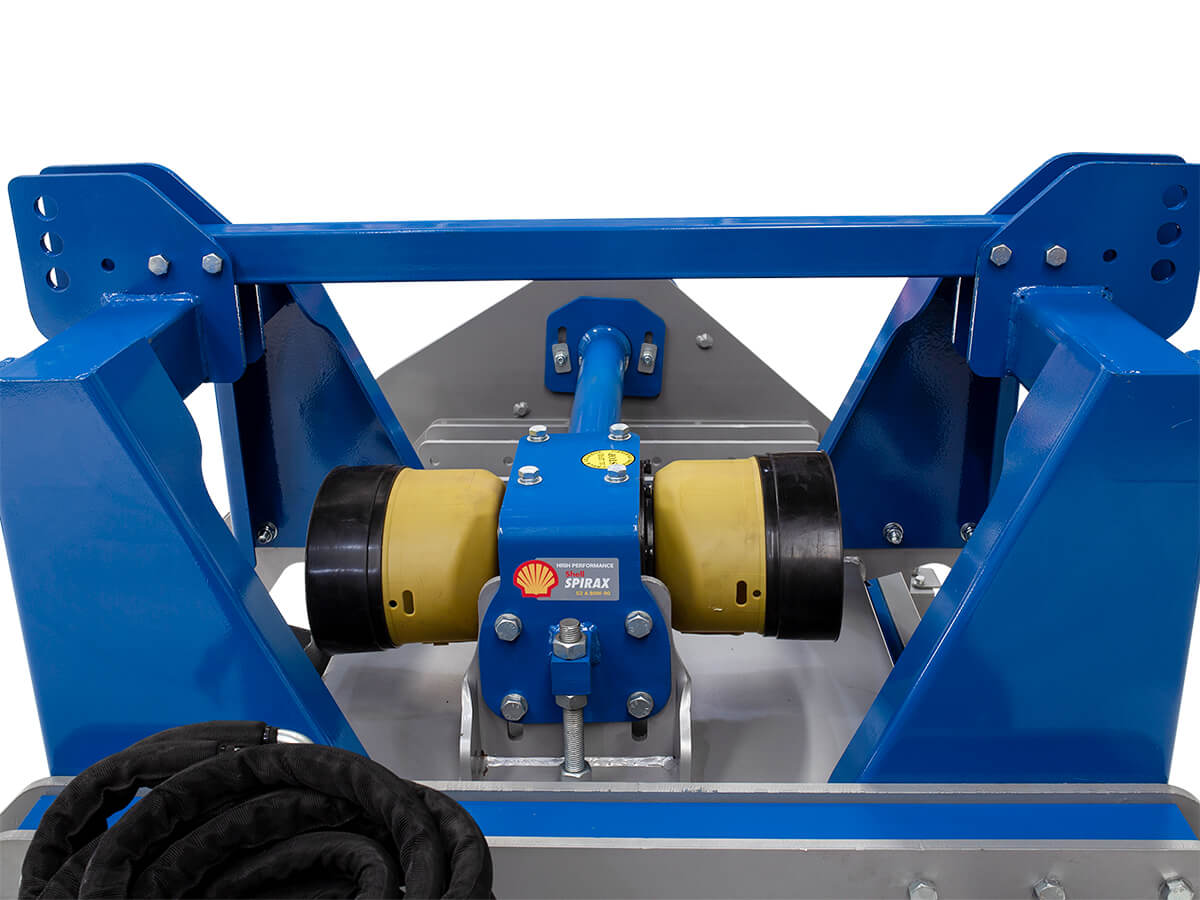

  • Dual-side gearbox, 540 r/min

  • Front support wheels for optimized ground following

  • Digitally balanced rotor

  • Adjustable working height via skids/slides

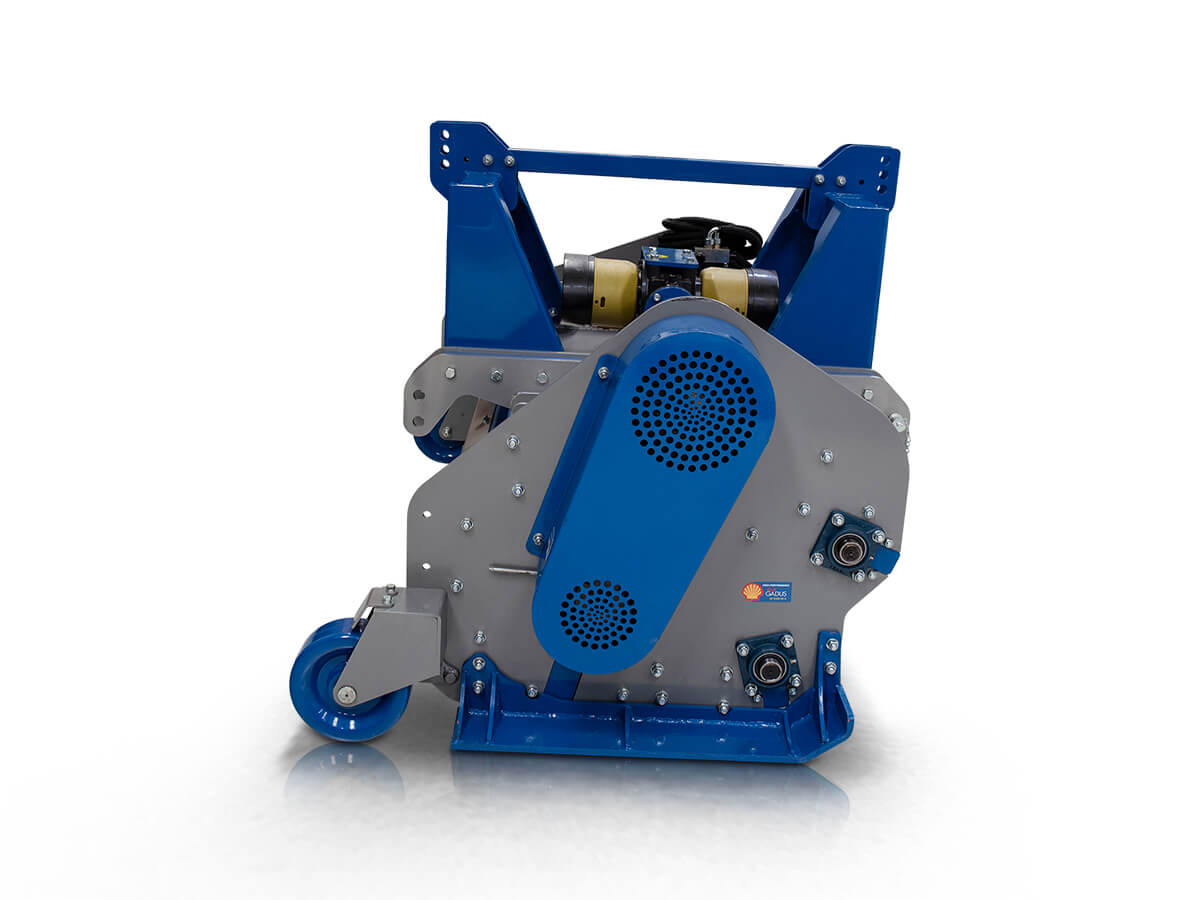

  • Power transmission via toothed belts with external tensioner

  • Two-direction hitch tower

  • Requires two free-flow hydraulic outlets

  • Double international three-point hitch – Category II (ø 25.0–28.0 mm)

  • European CE safety certificate

PTO shaft (T8-110) with safety bolt is included in the price.

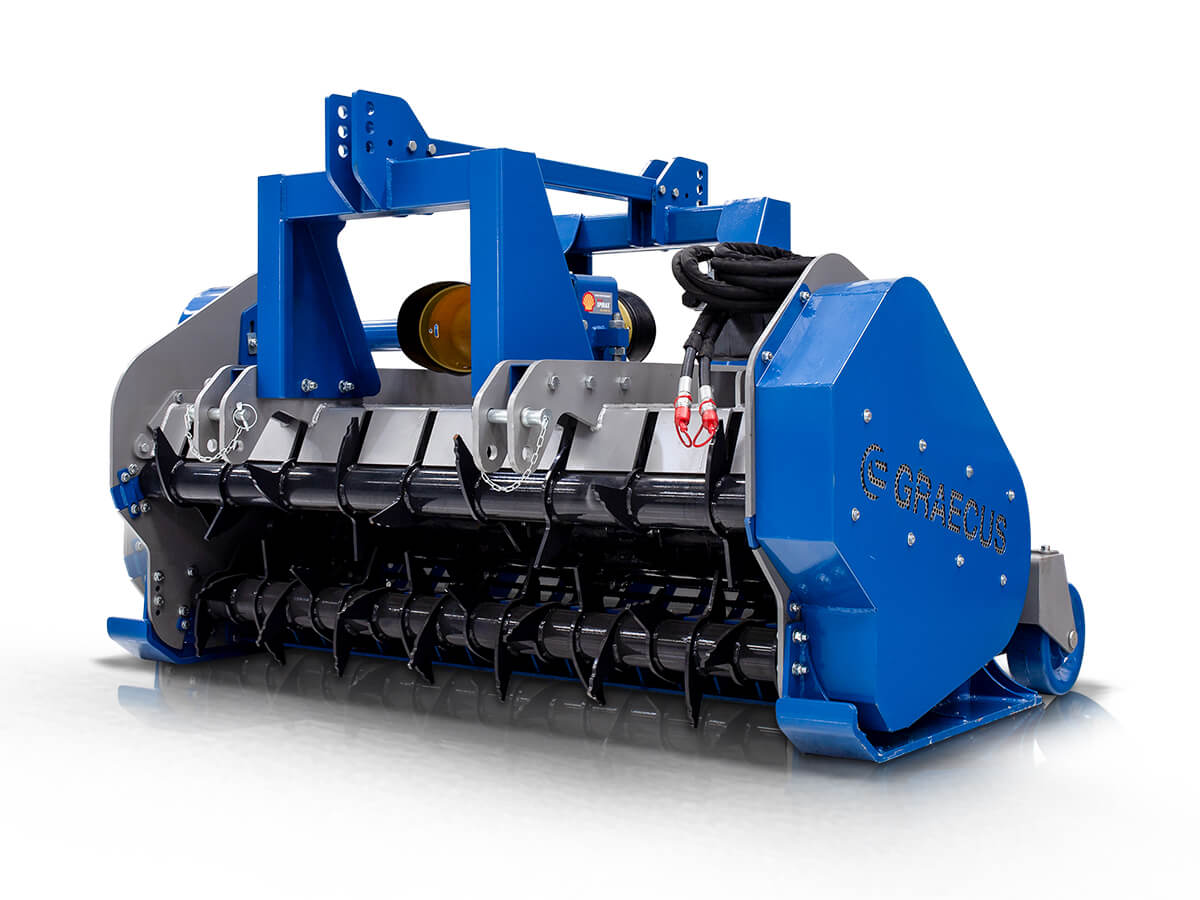

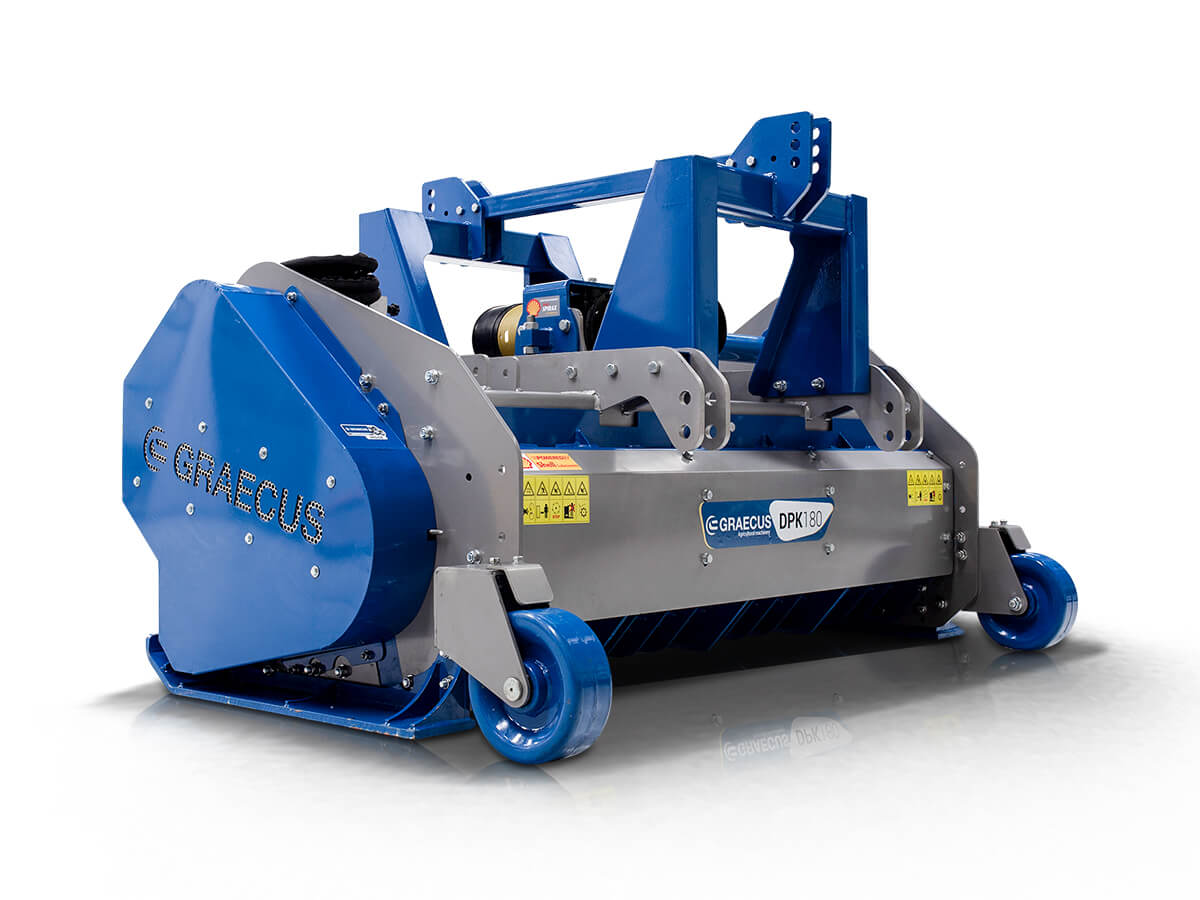

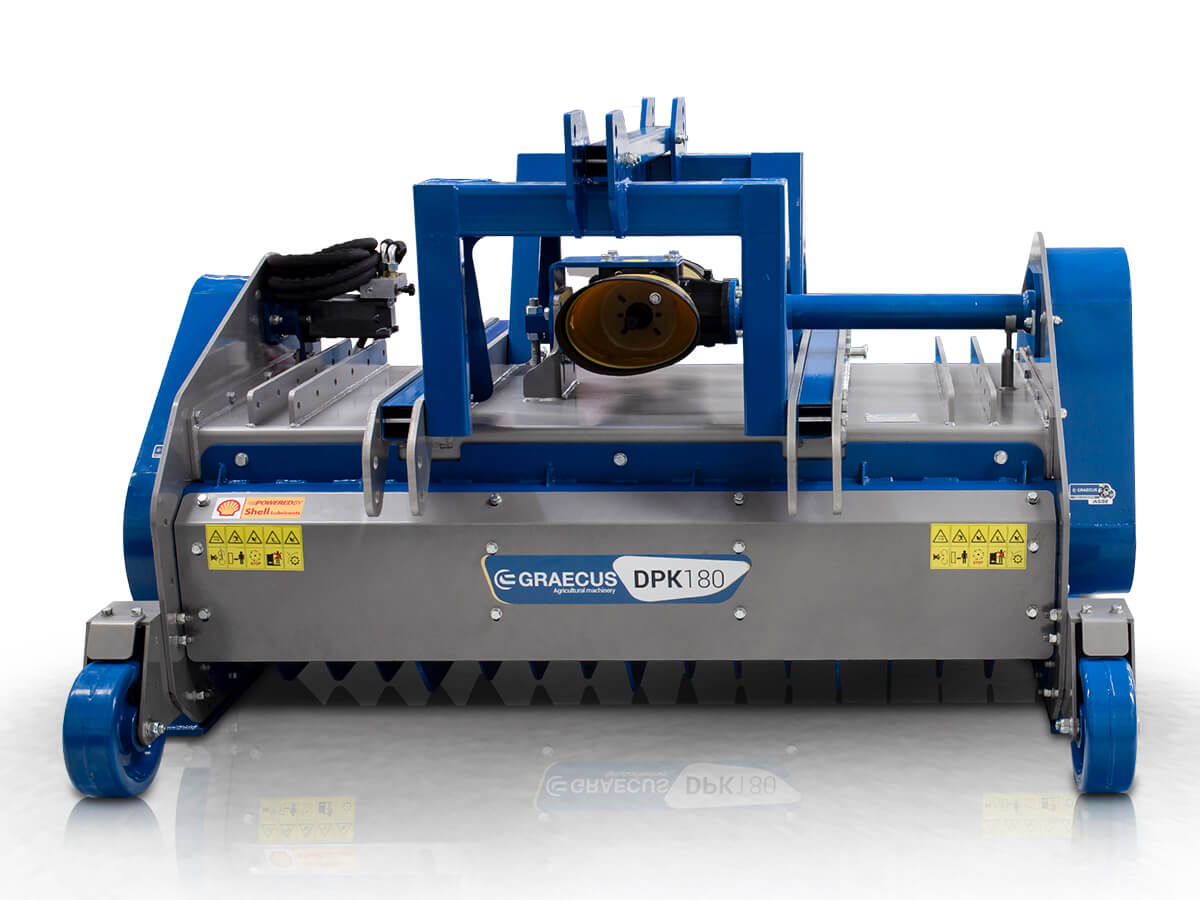

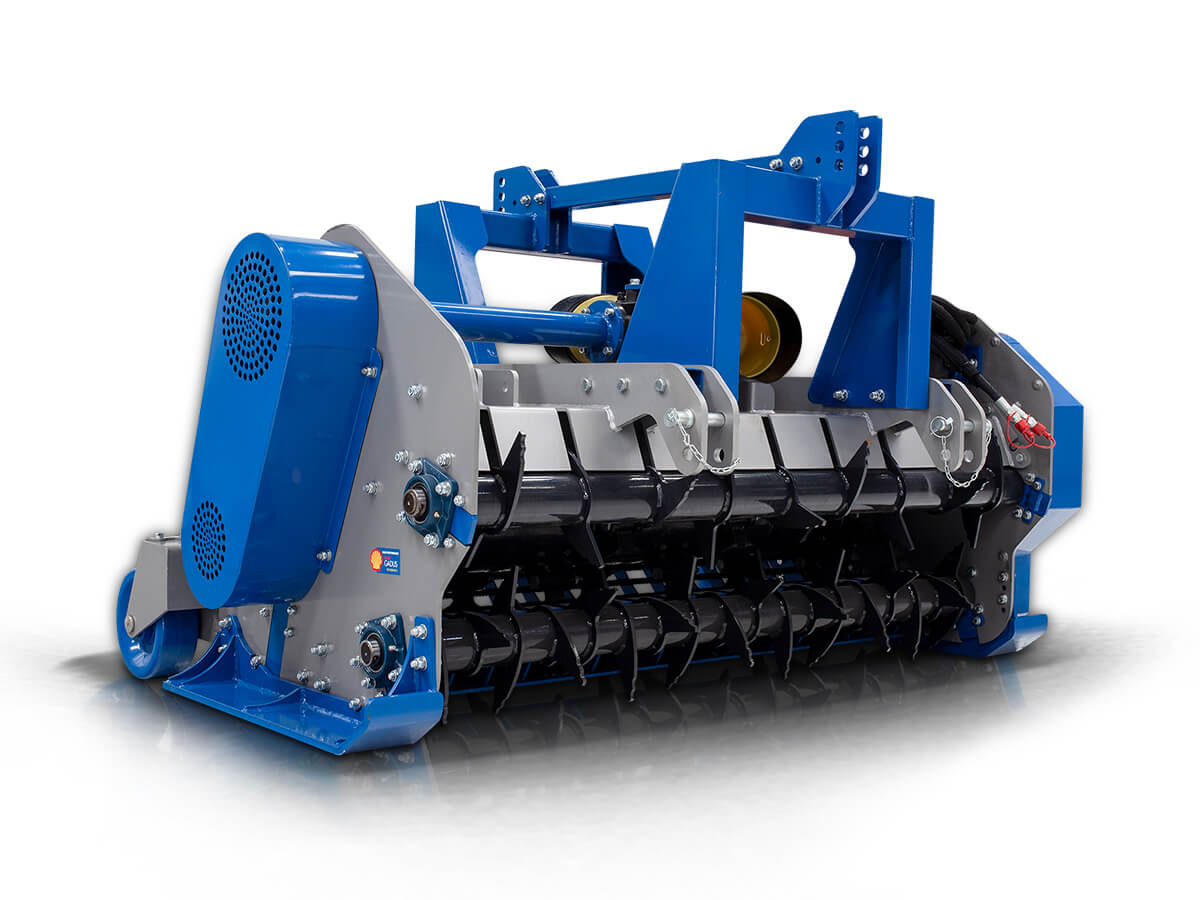

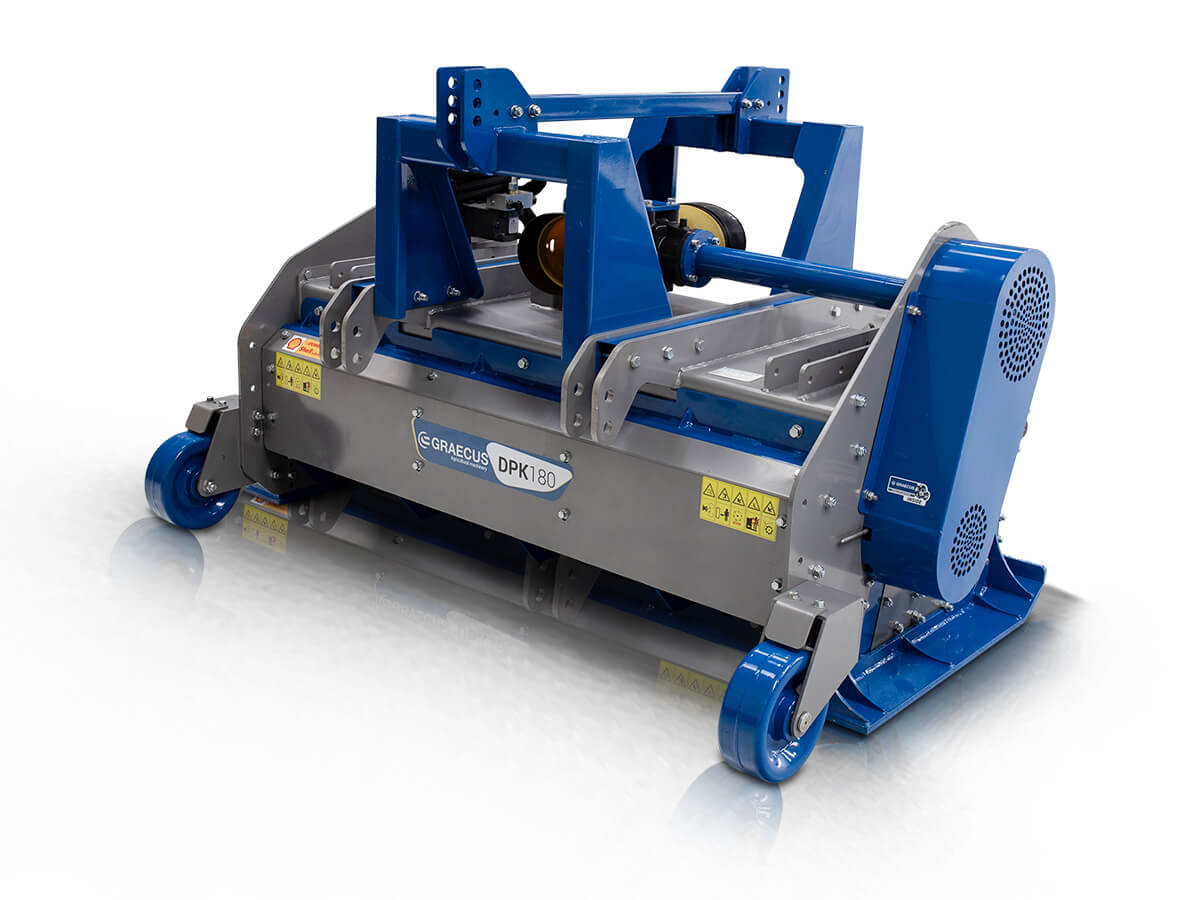

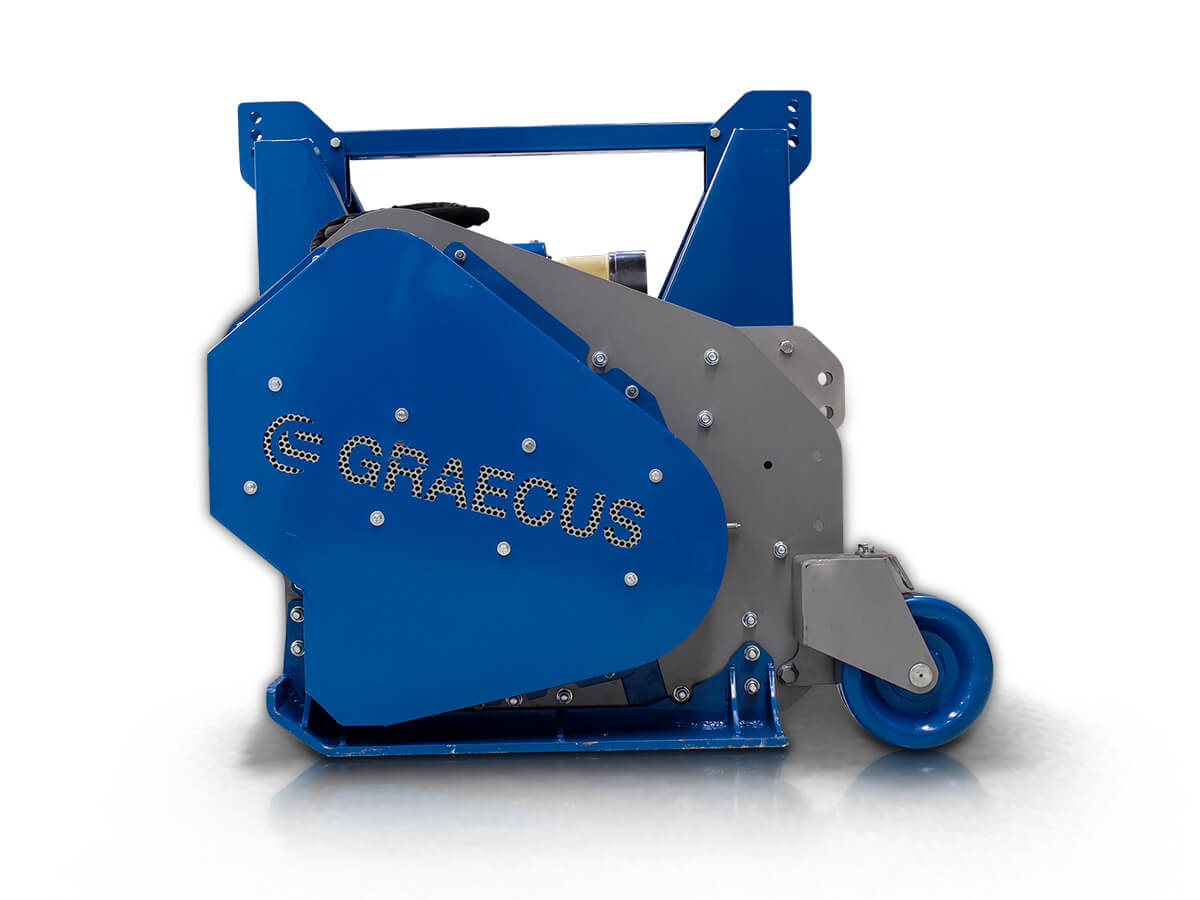

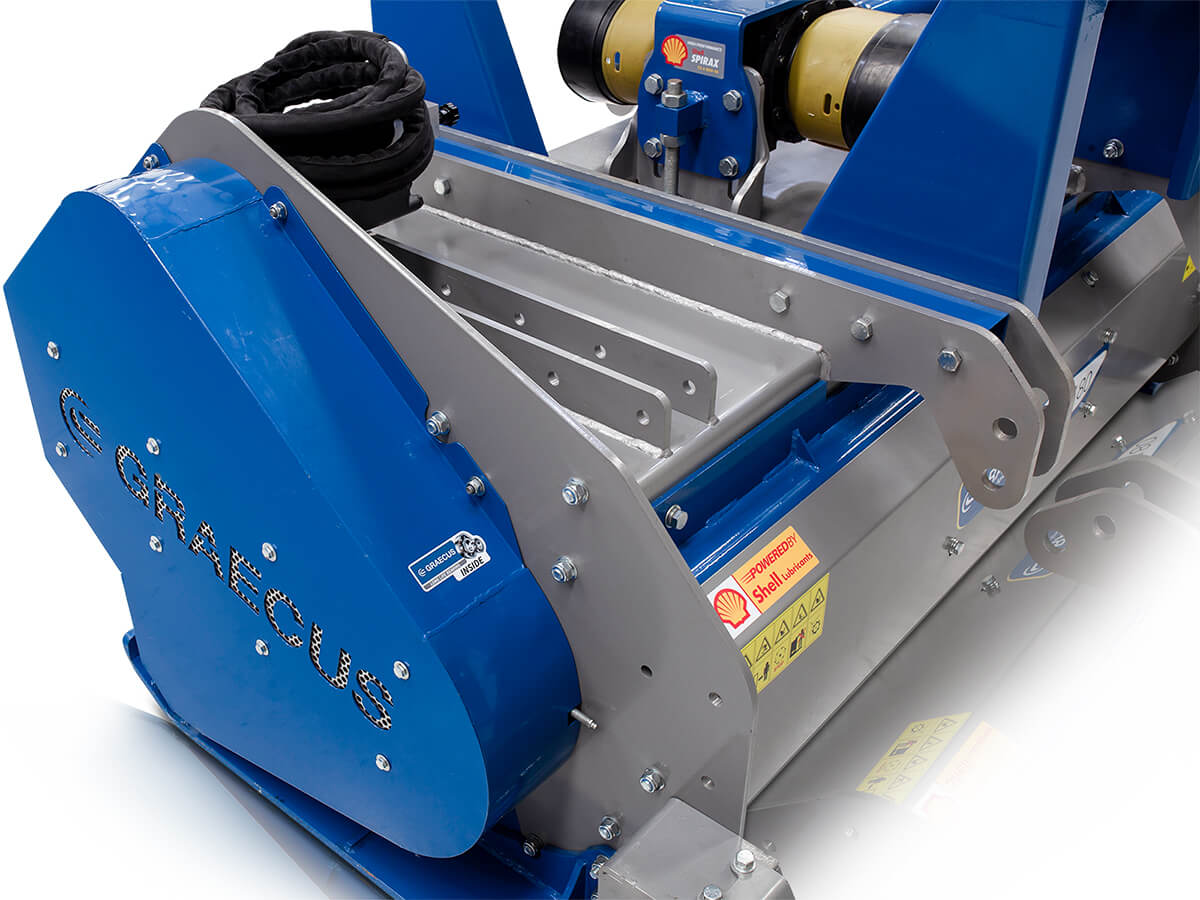

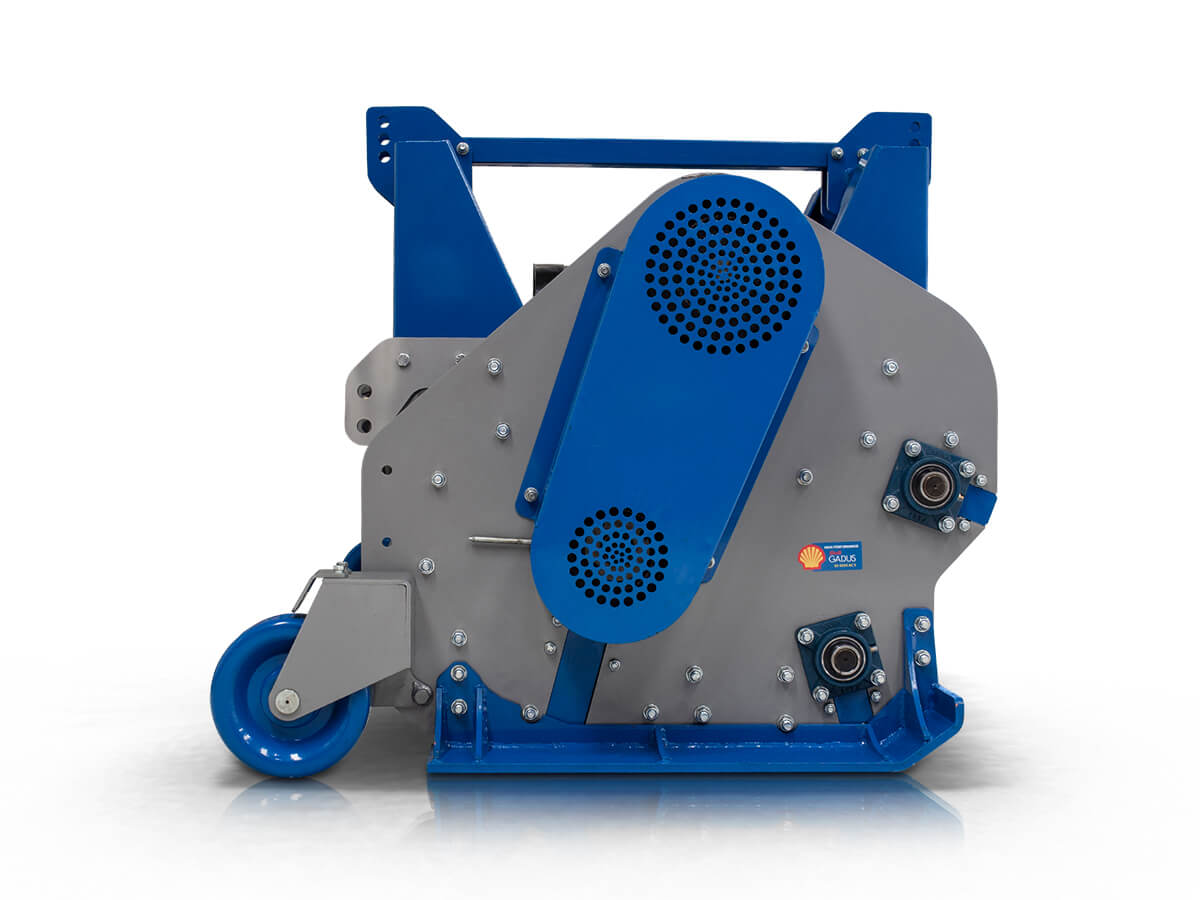

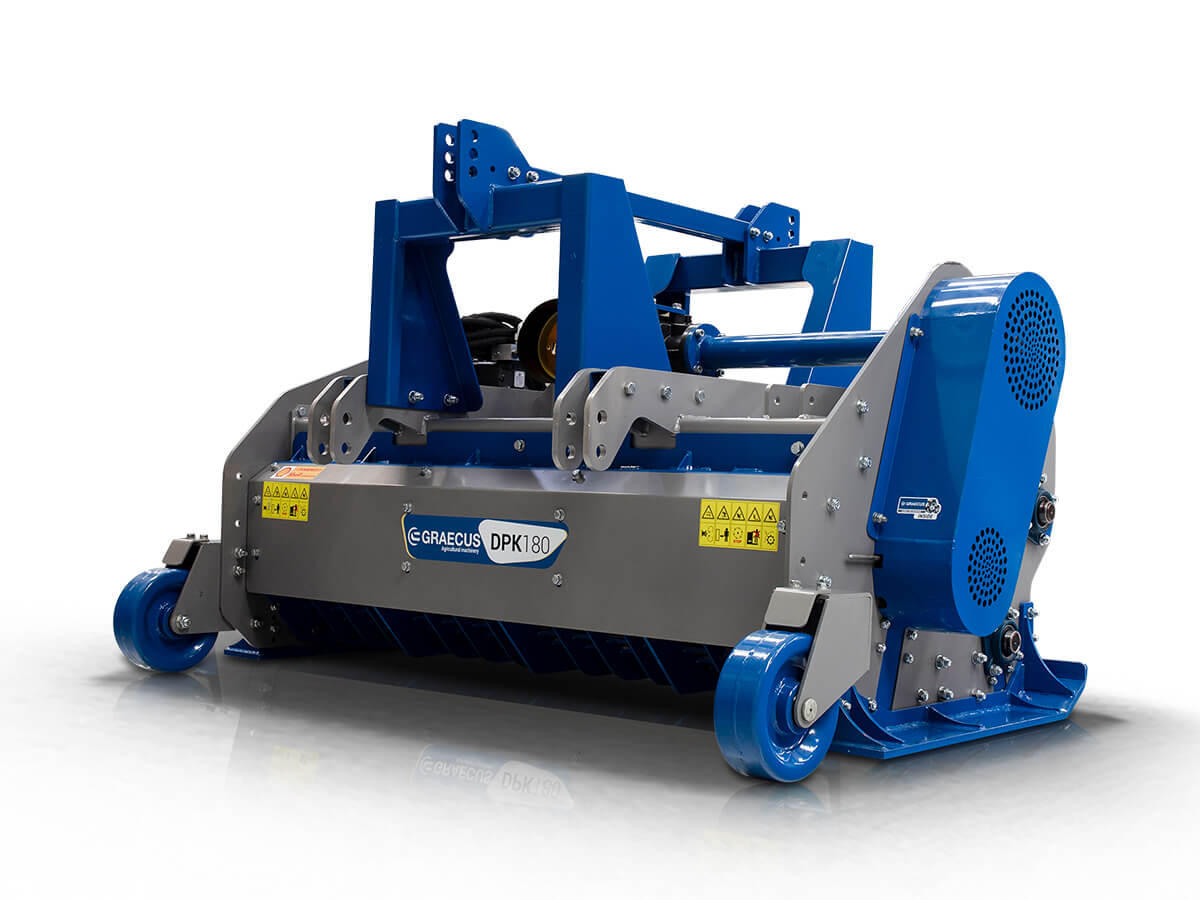

DPK180 Flail Shredder with Hydraulic Feed Rollers

                                Technical Specifications

Specification Value
Weight 1458 kg
Horsepower 90 – 150 HP
Width 2166 mm
Length 1470 mm
Height 1308 mm
Working Width 1800 mm
Offset Movement ← mm 900 || 900 mm →
Hammers 22 pcs
Rotor 220 × 15 mm
Belts 5 pcs
Feeder Drive Transmission Chain
Max Cutting Thickness 80 mm

Available upon order. Please contact us for pricing.
