Advantages and Features

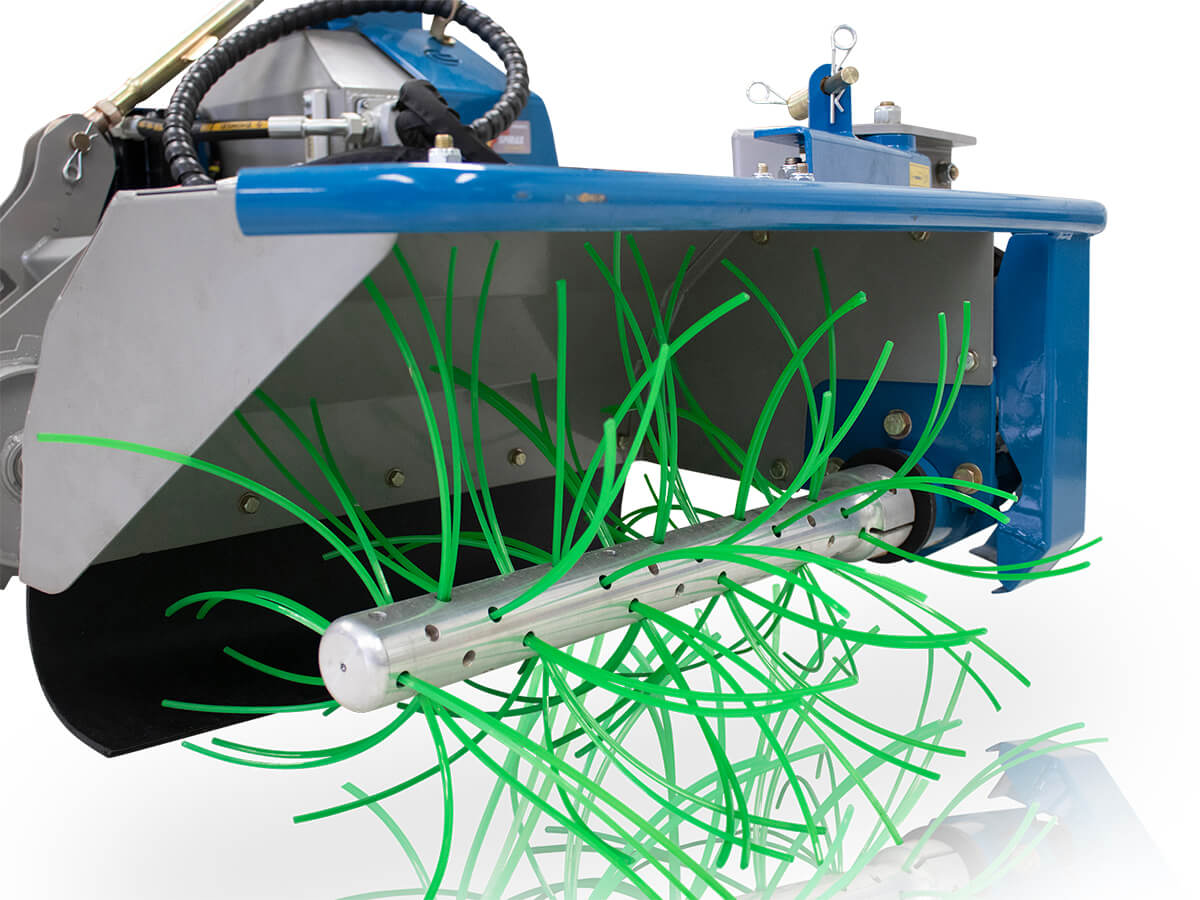

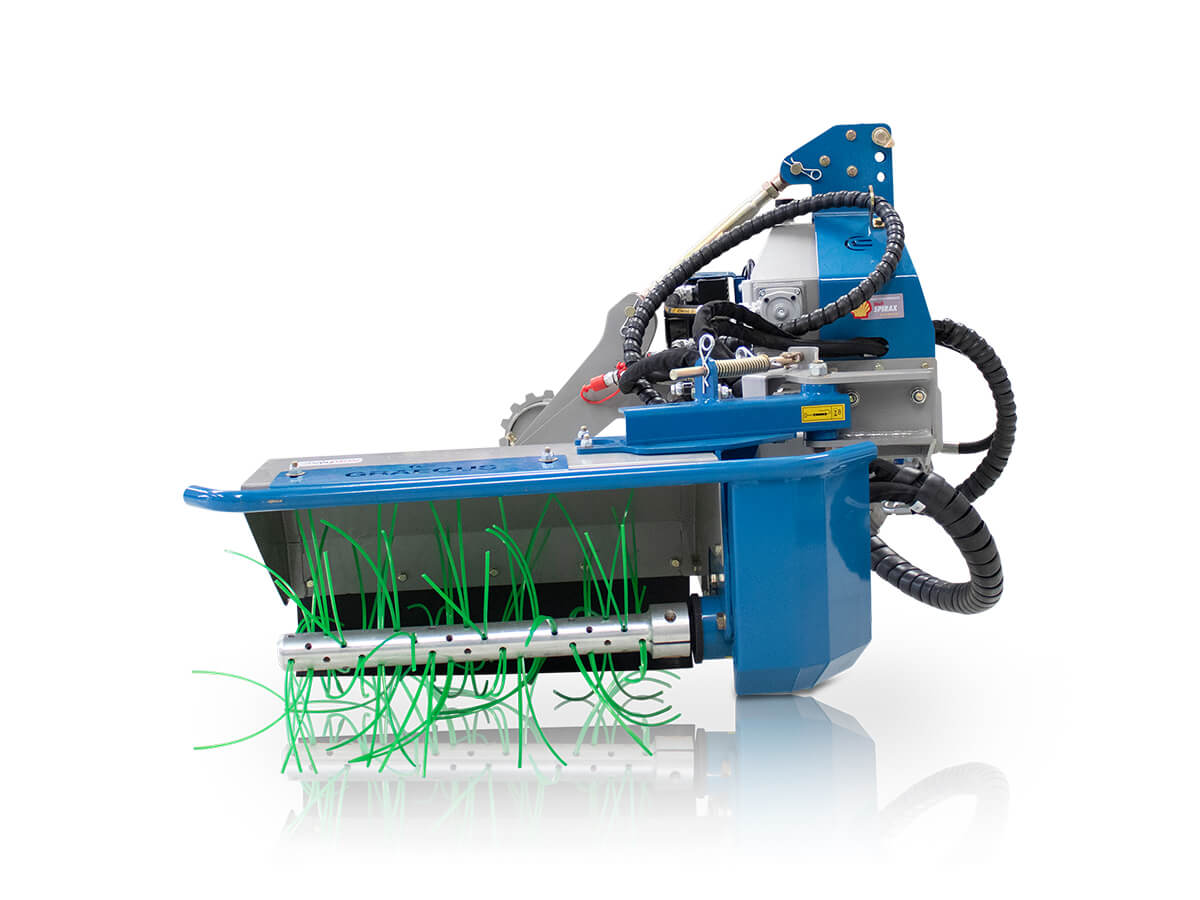

  • Automatic return nylon brush head, hydraulically retractable – ideal for vineyards, orchards, and dense tree plantations

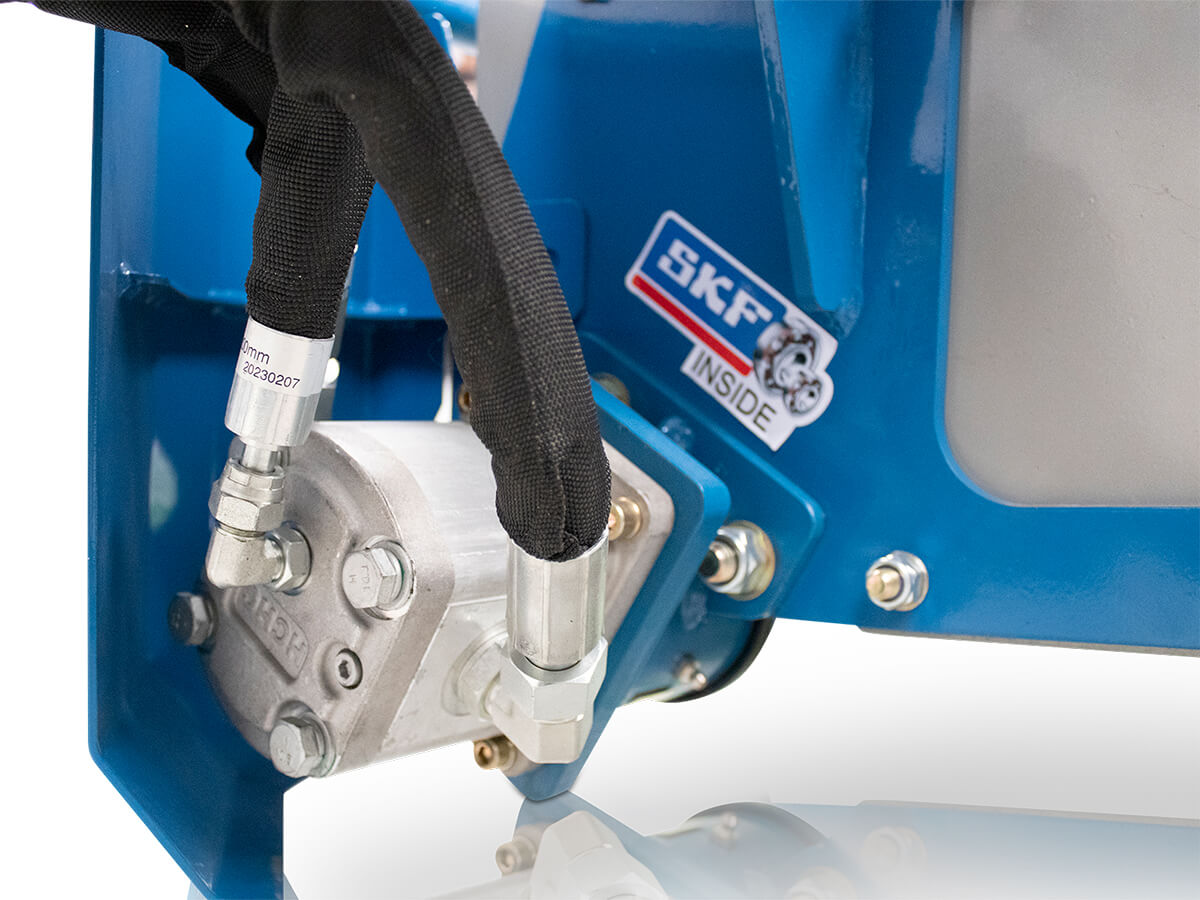

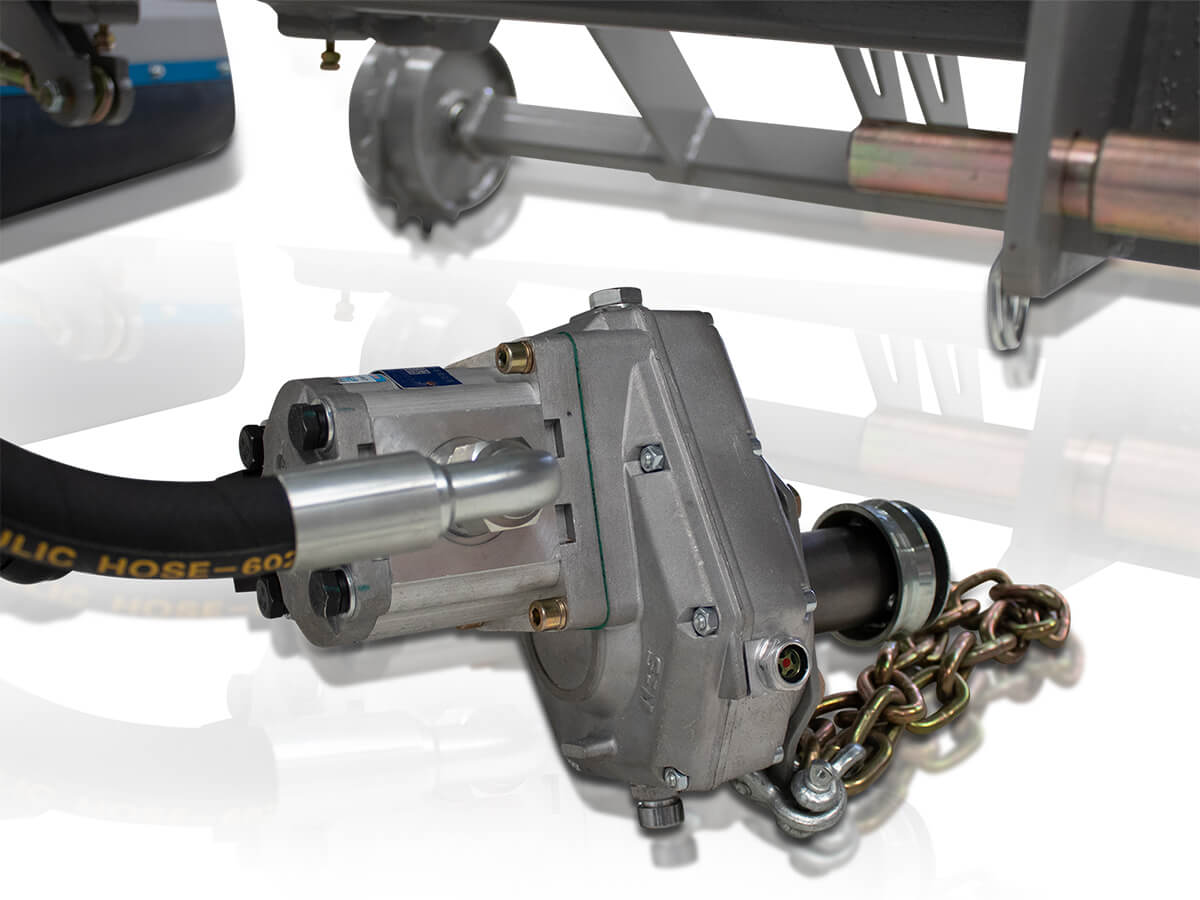

  • Independent hydraulic system with PTO-driven hydraulic pump

  • Italian-made OT hydraulic motor for brush drive

  • Mechanically adjustable head tilt

  • Double 4 mm square nylon lines of high durability

  • Retractable arm requires connection to two hydraulic outlets

  • Brush return speed is adjustable via spring mechanism

  • Shock-absorbing wheels with height and width adjustment

  • Cleaning width: 600 mm – Cleaning height: 500 mm

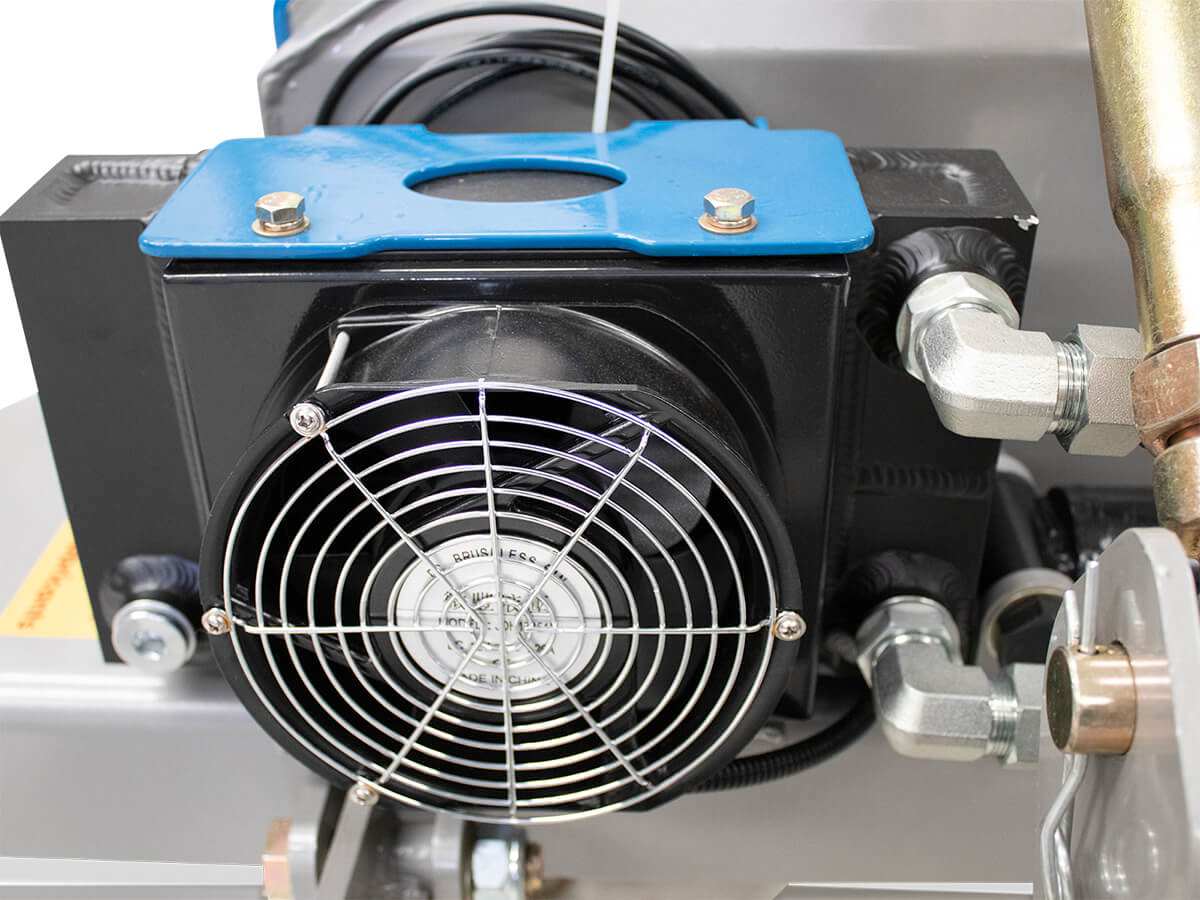

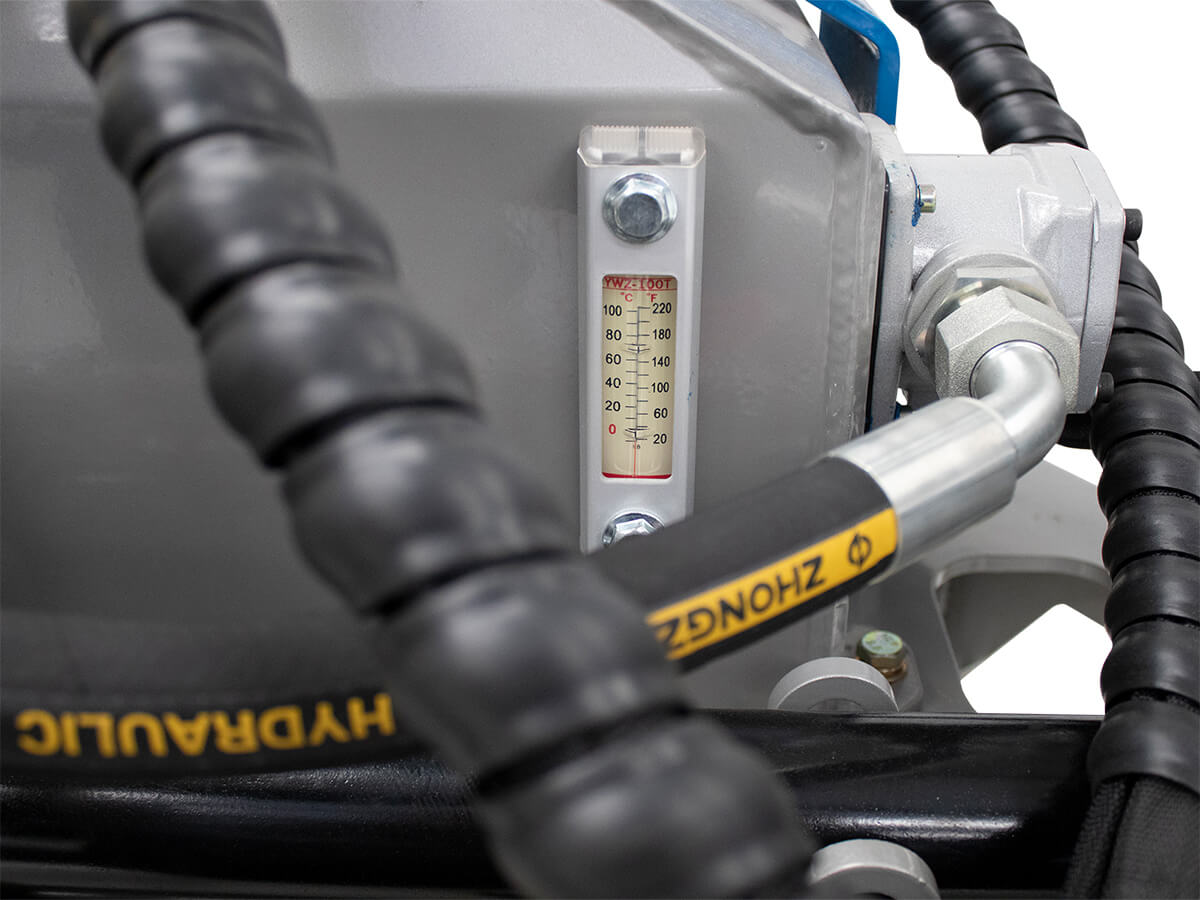

  • 27 L oil tank with 12V oil cooling system

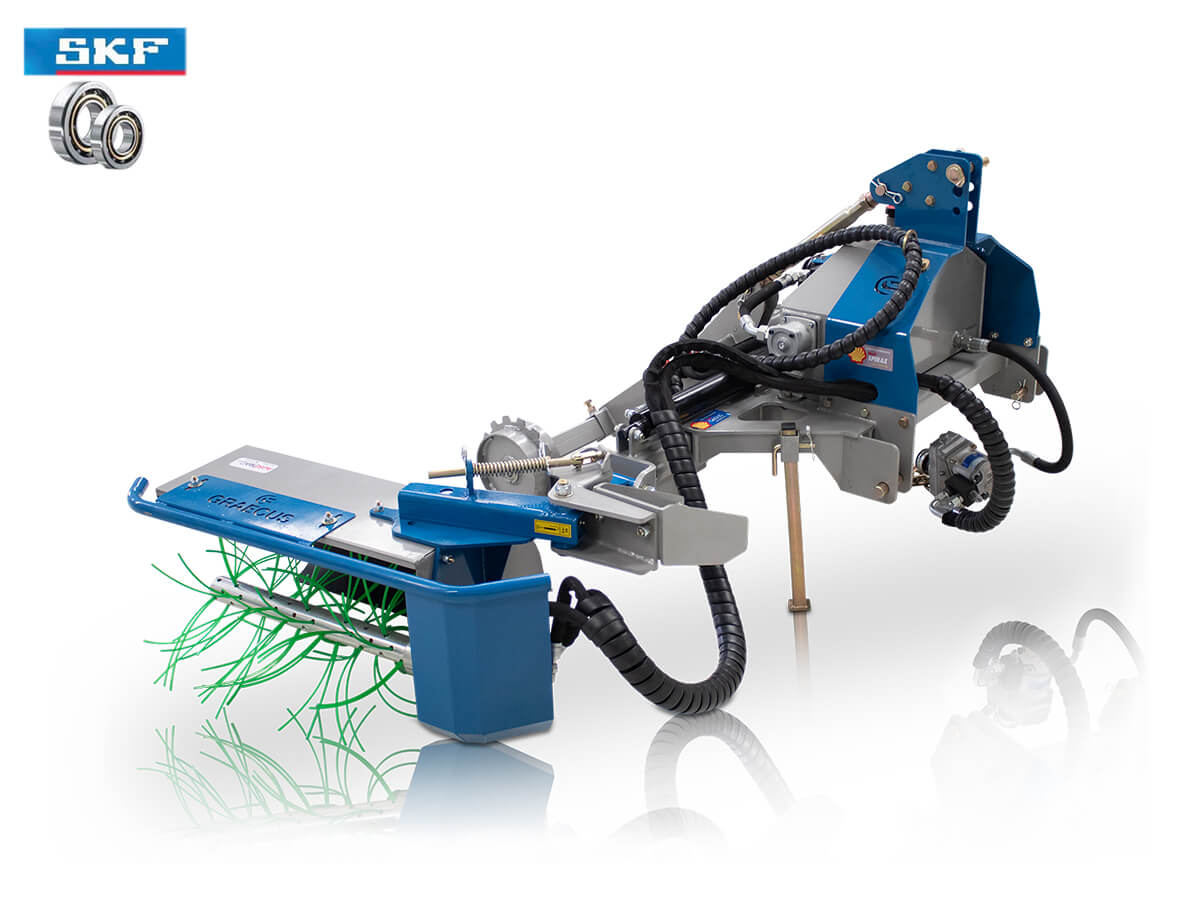

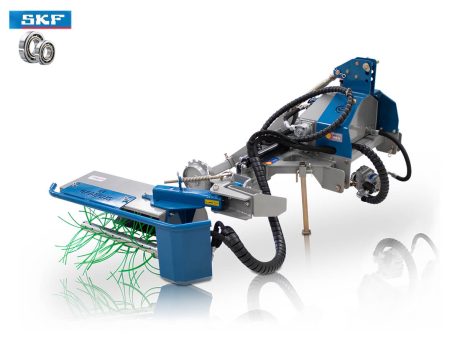

  • Long-life SKF bearings

  • Reinforced structure at all stress points

  • Main joints made of high-hardness steel

  • Support stand included

  • International three-point hitch – Category I–II (ø 19.0–22.0 mm / 25.0–28.0 mm)

  • European CE safety certificate

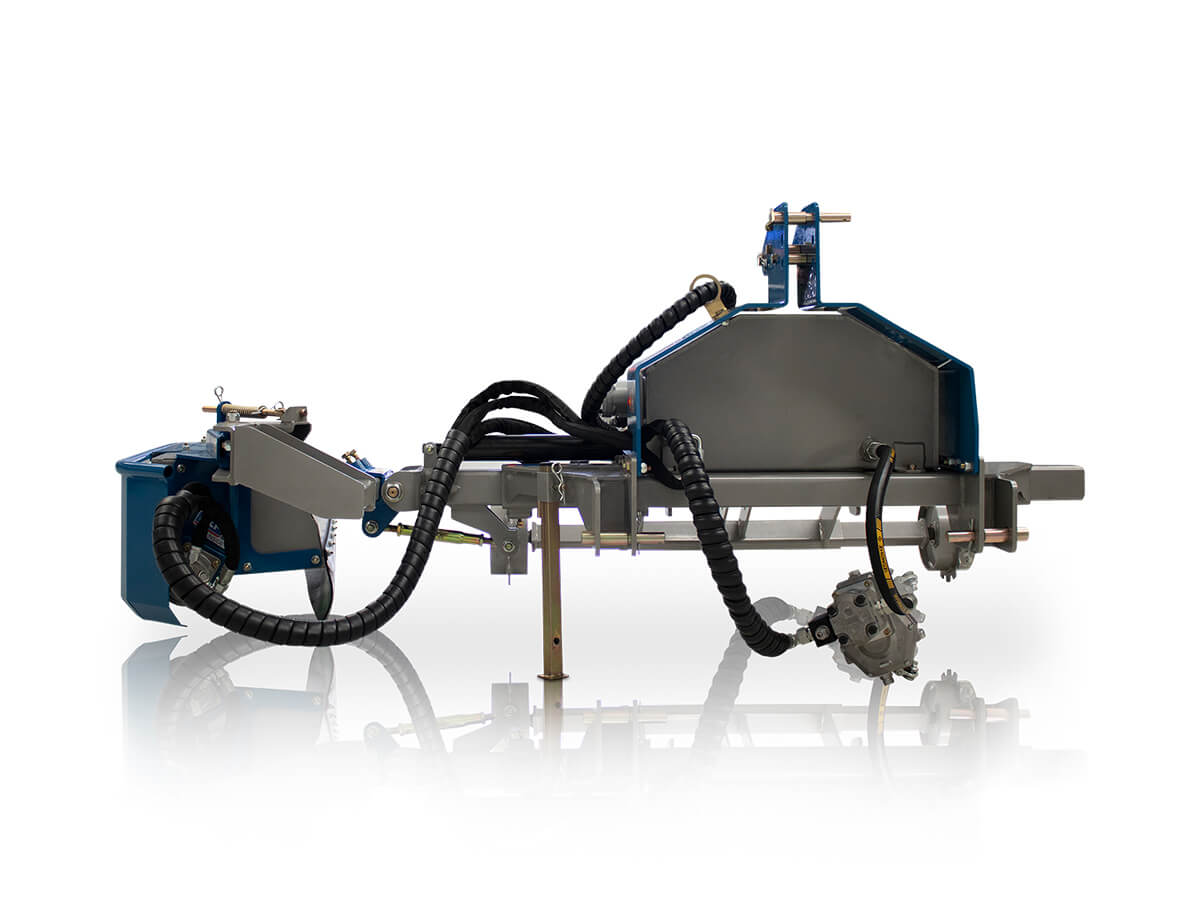

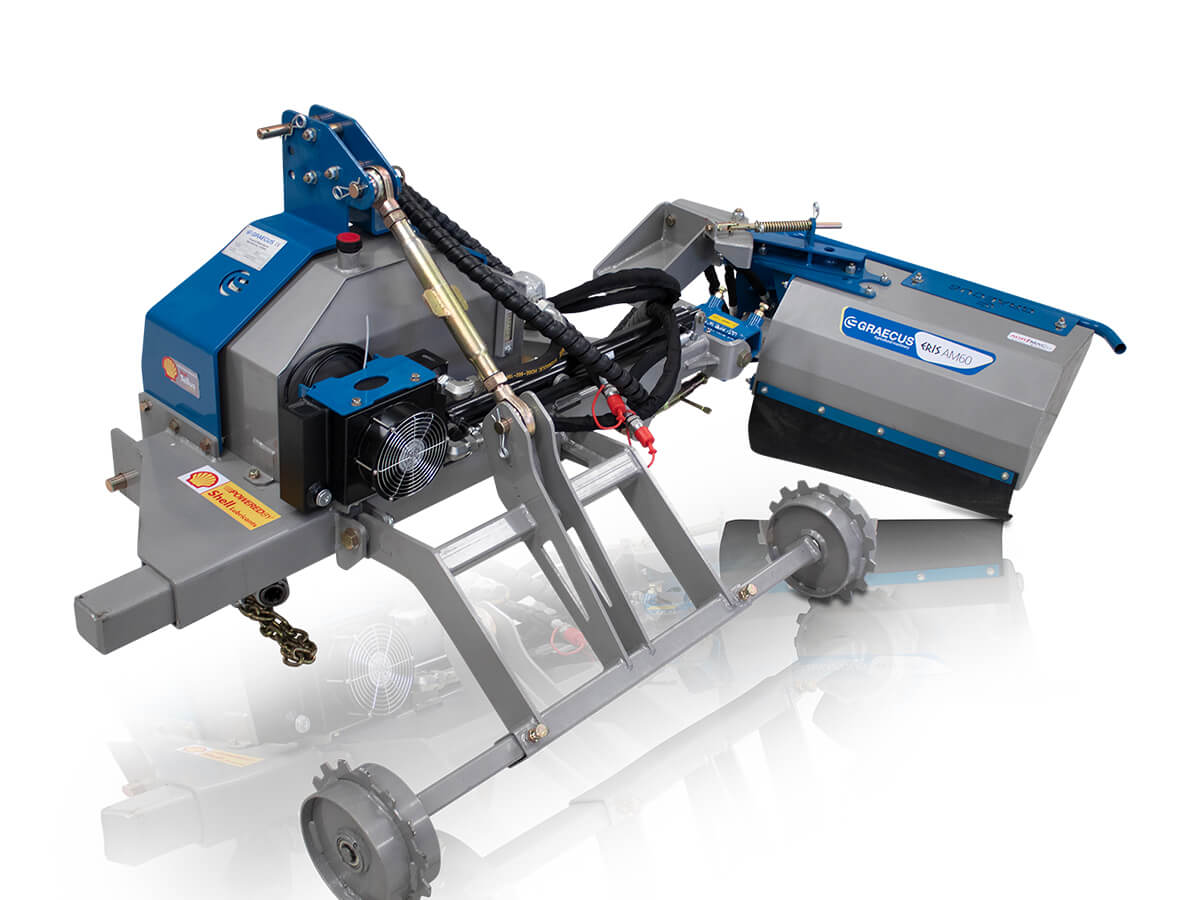

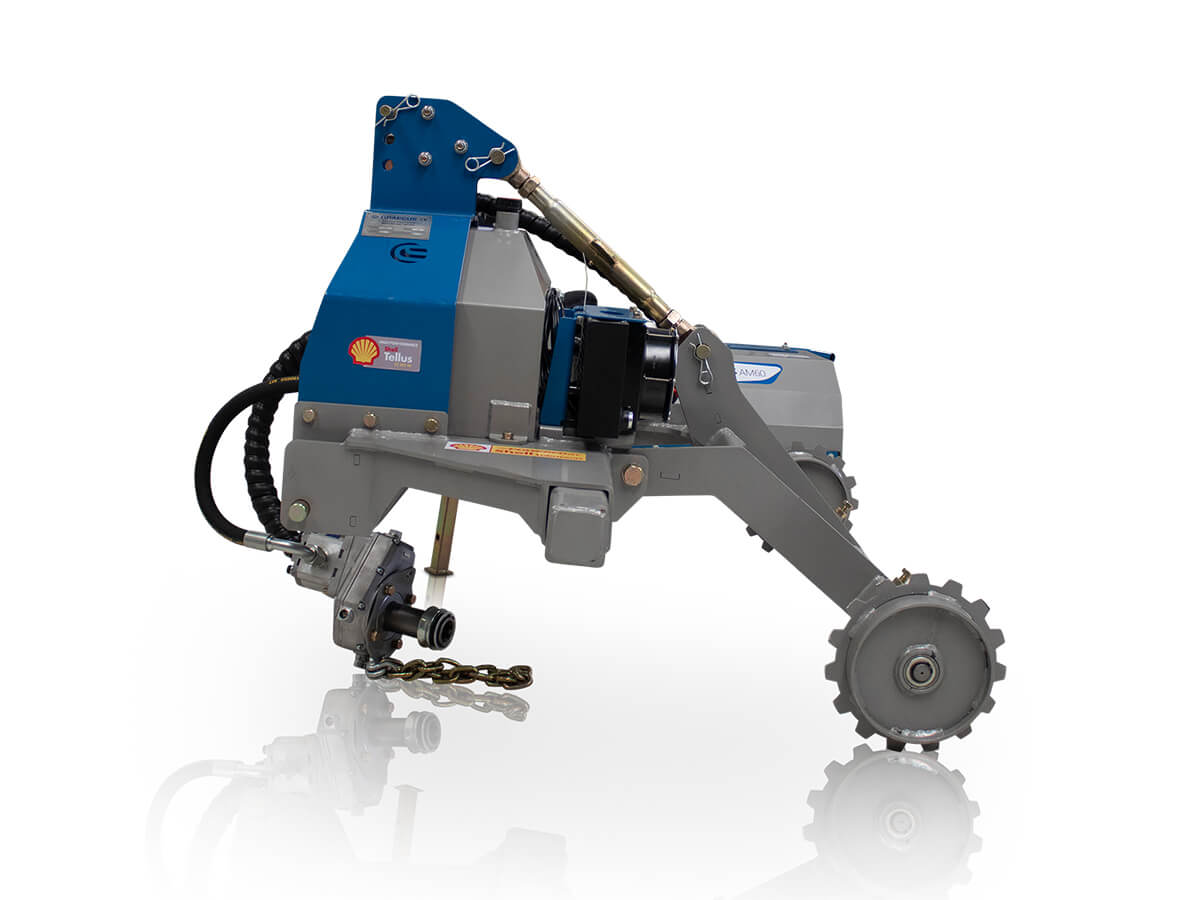

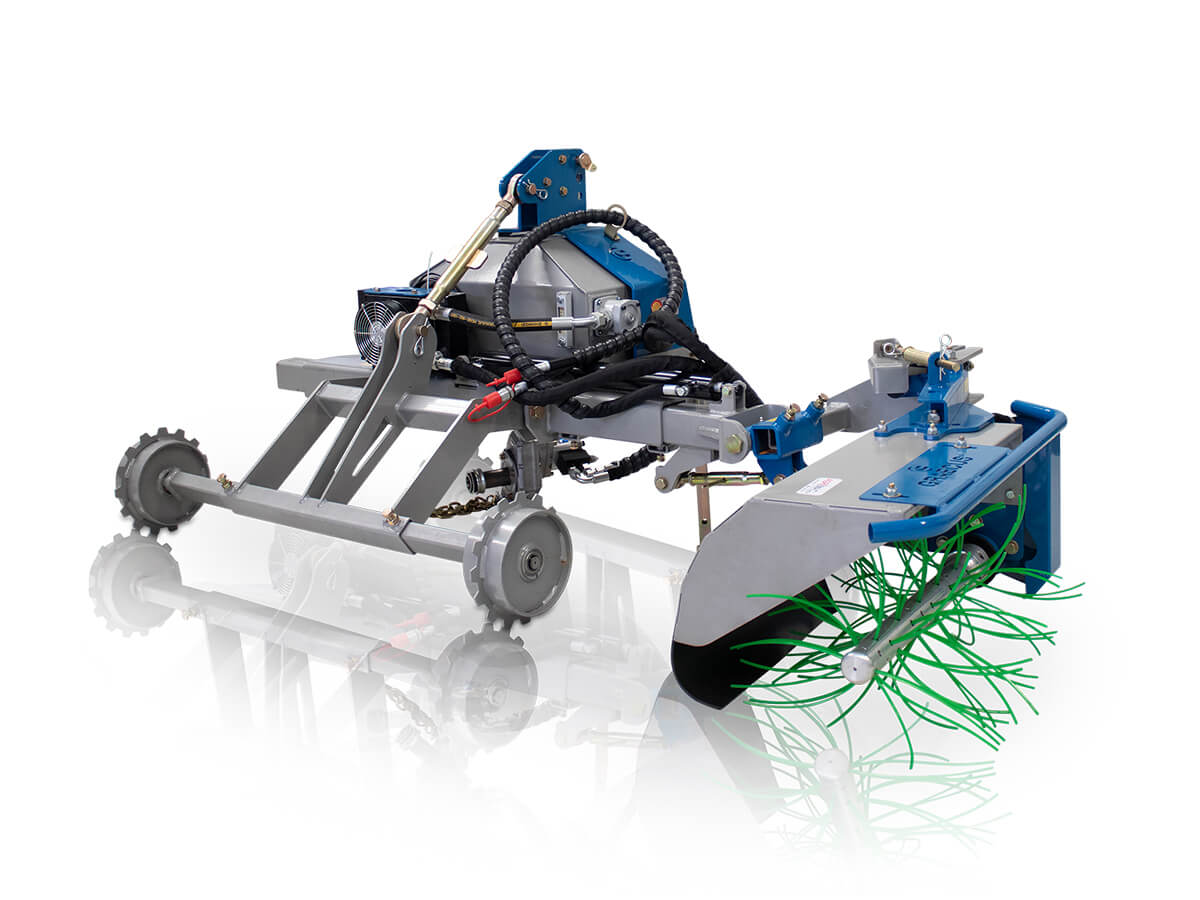

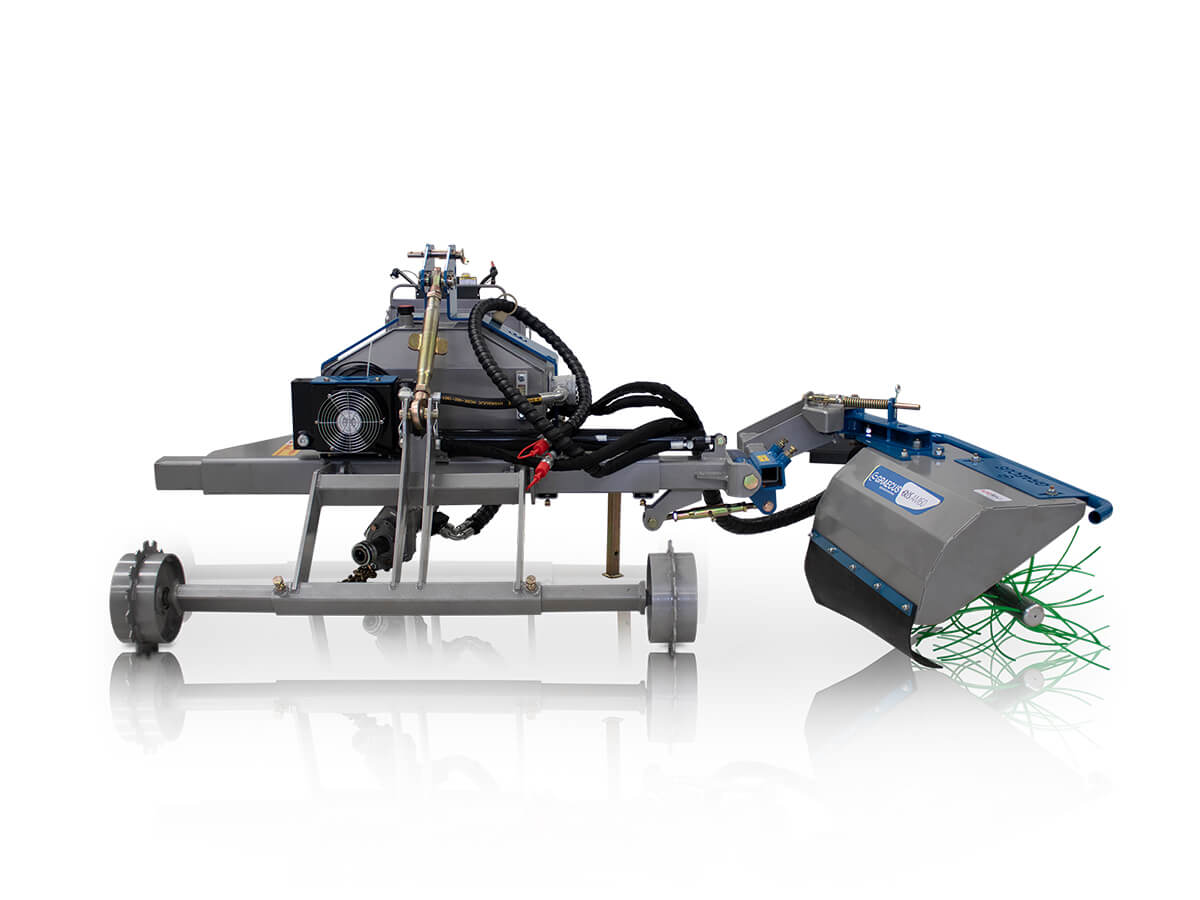

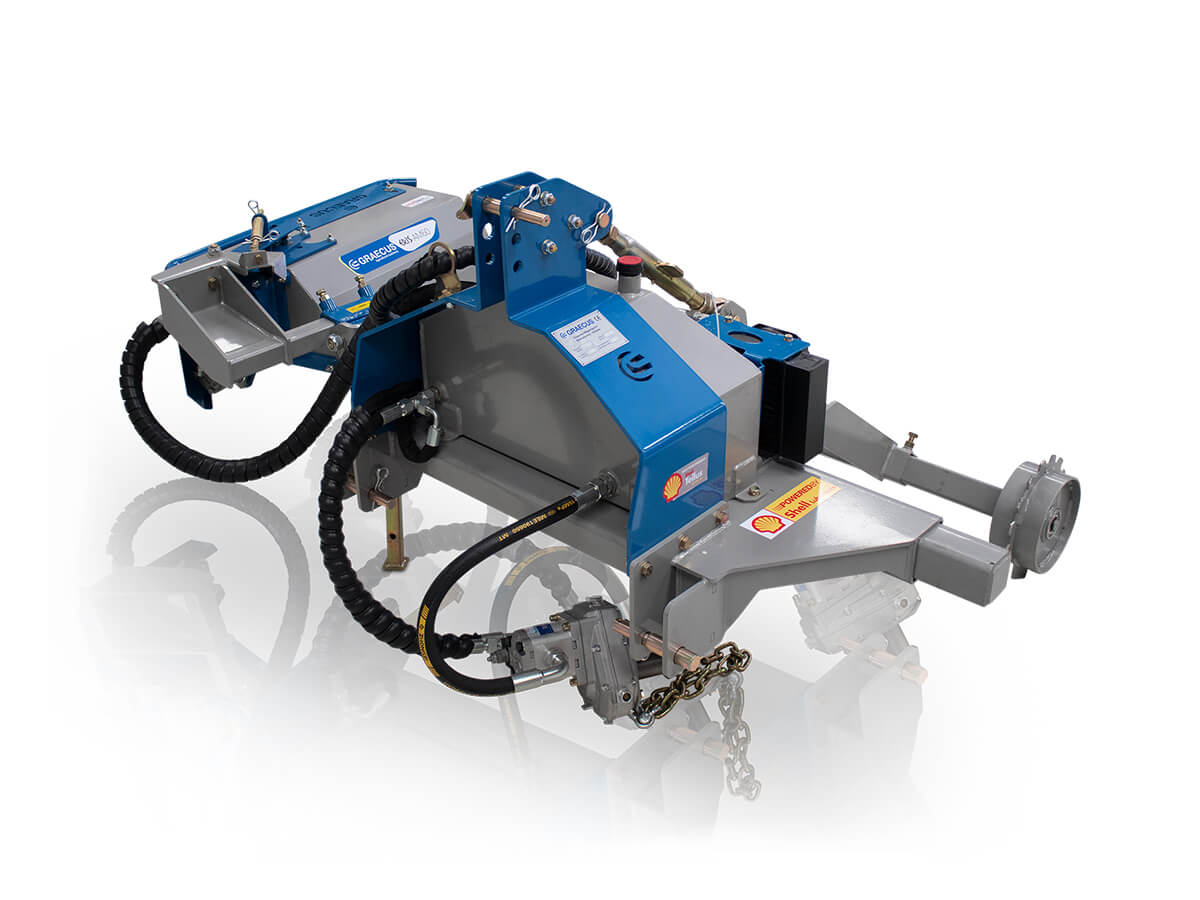

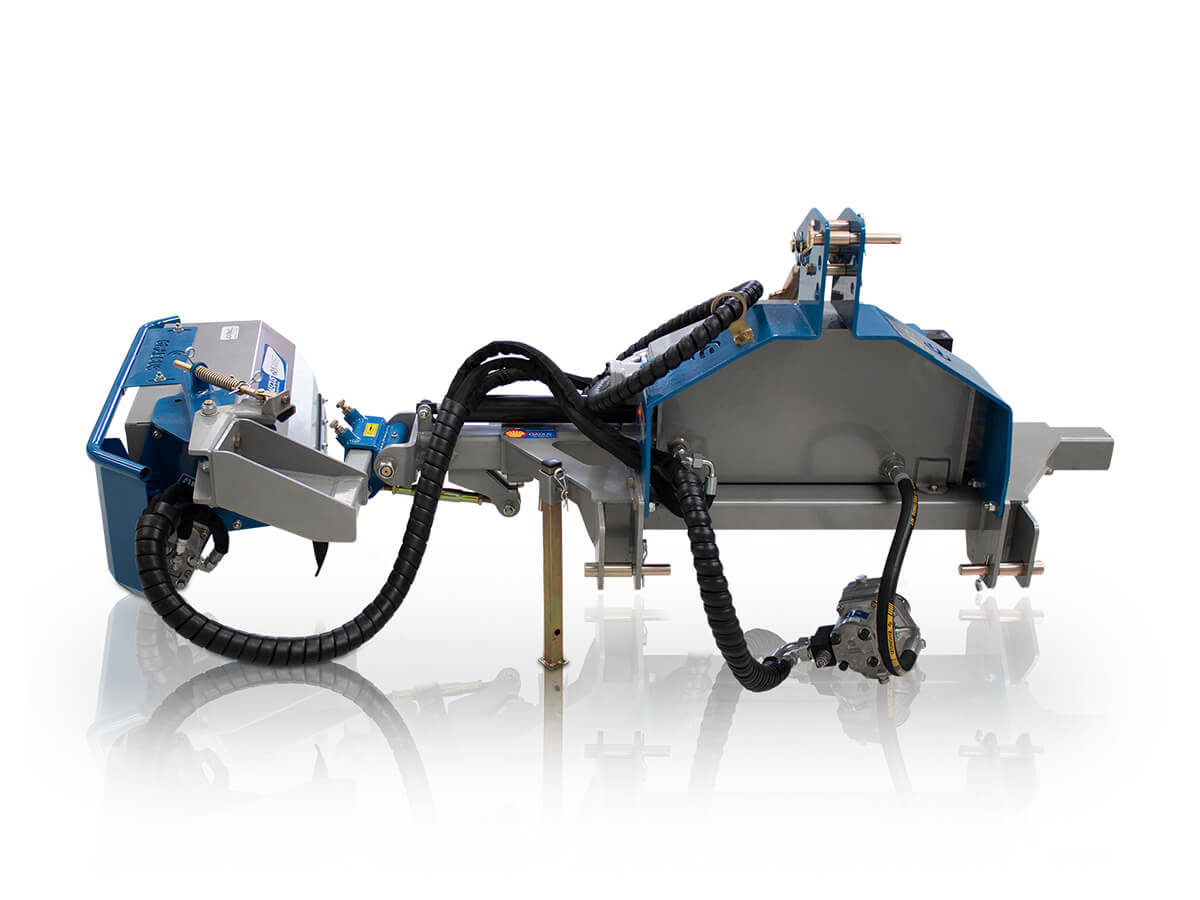

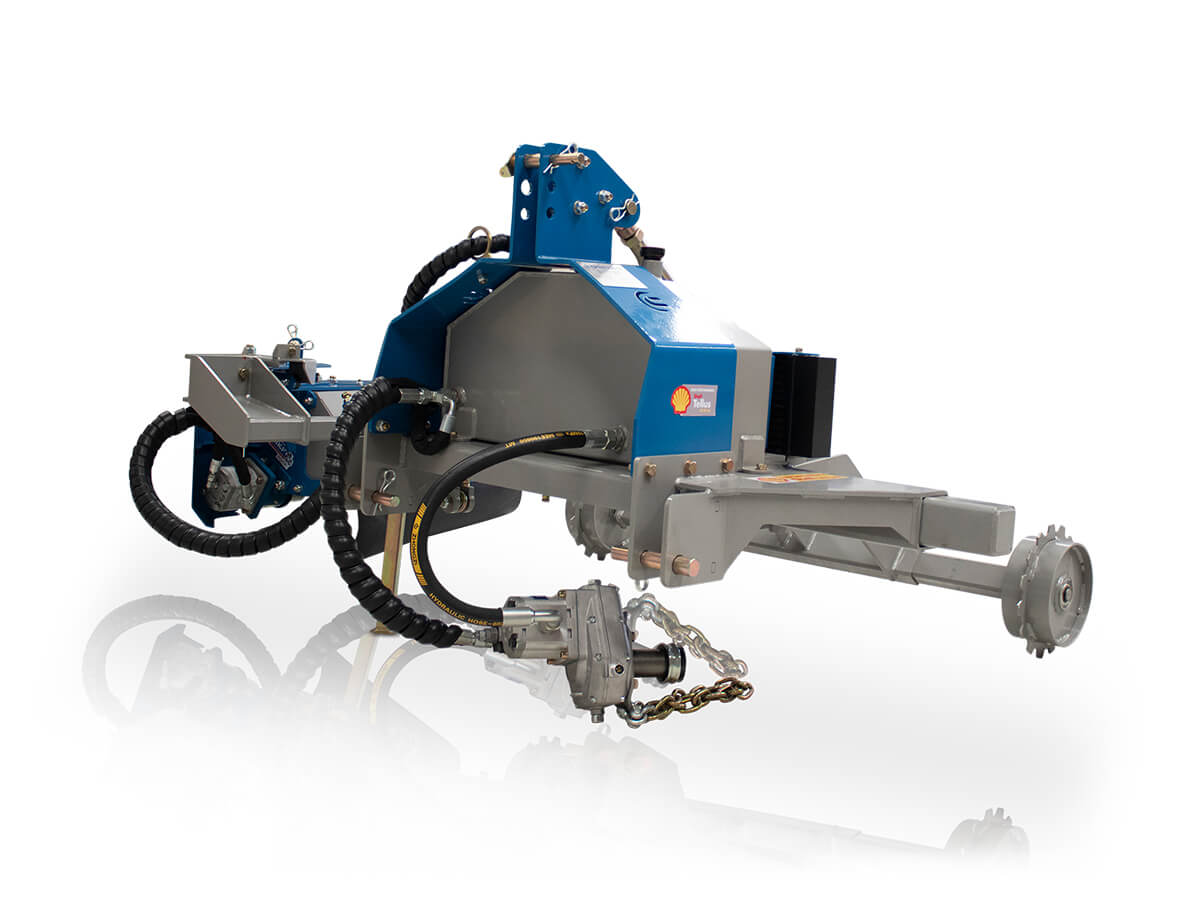

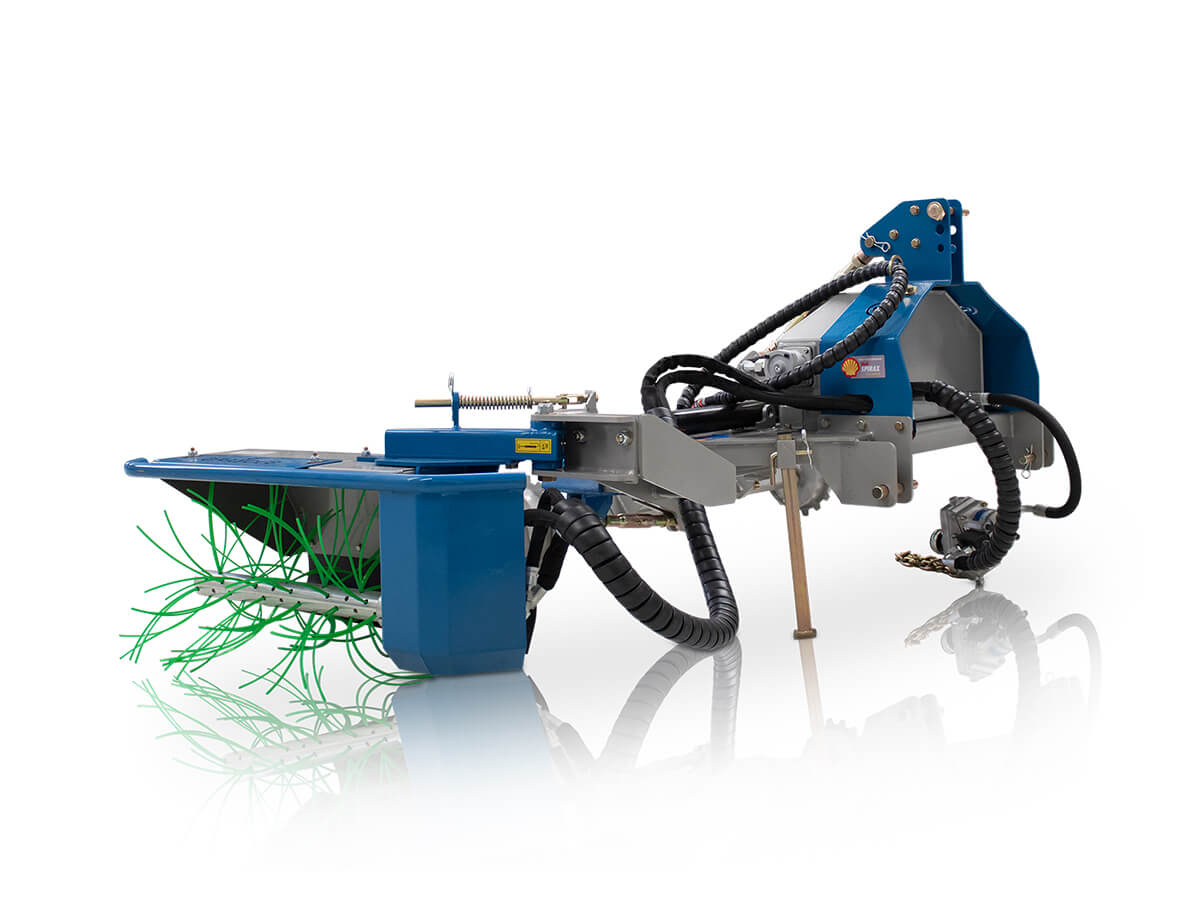

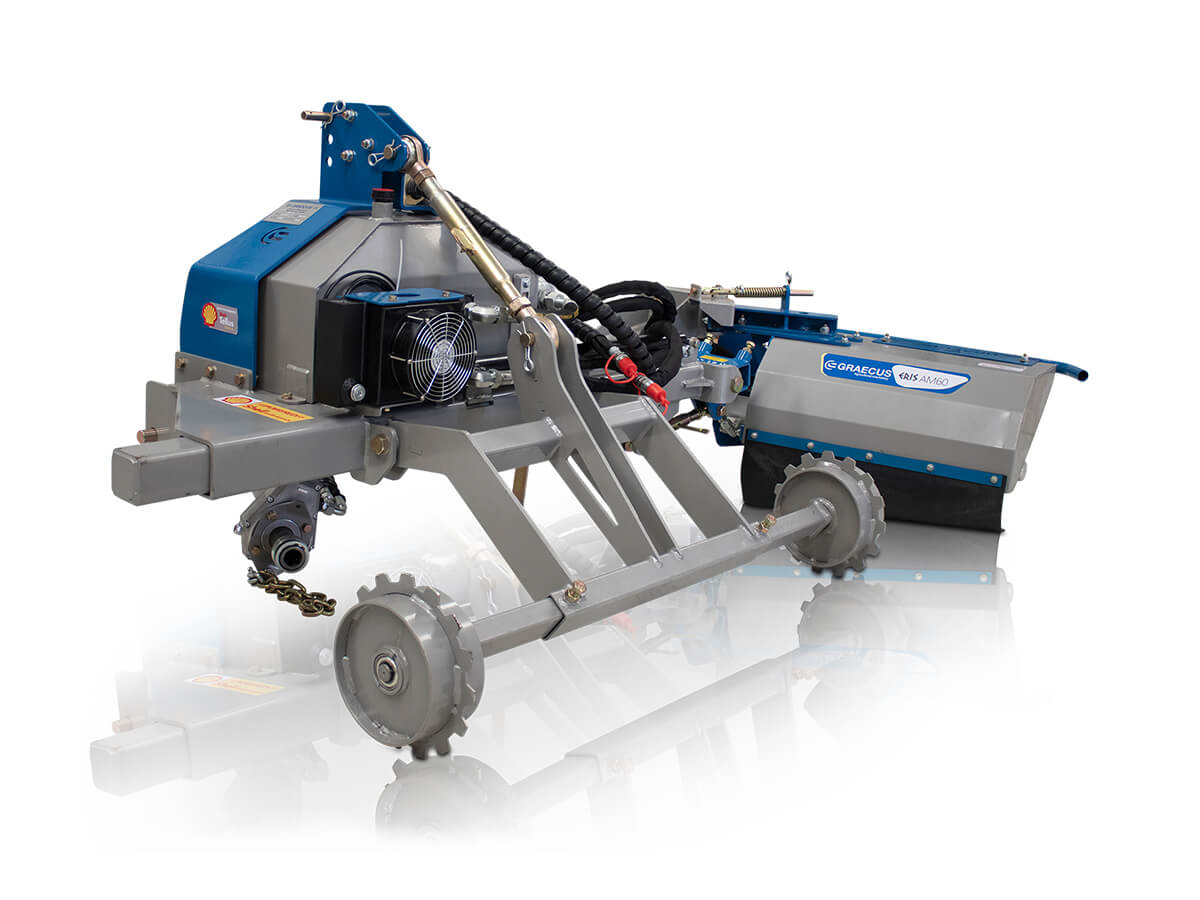

ERIS AM60 Automatic Nylon Weeding Arm

                                      Technical Specifications

Specification Value
Weight 290 kg
Tractor Power 17 – 100 HP
Oil Tank Capacity 27 L
Nylon Lines 42 pcs
Line Thickness 4×4 mm
Oil Cooling System 12 V
A (Arm Length Range) 1400 – 2700 mm
B (Height of Operation) 520 mm
C (Cleaning Width) 600 mm

Available upon order. Please contact us for pricing.
