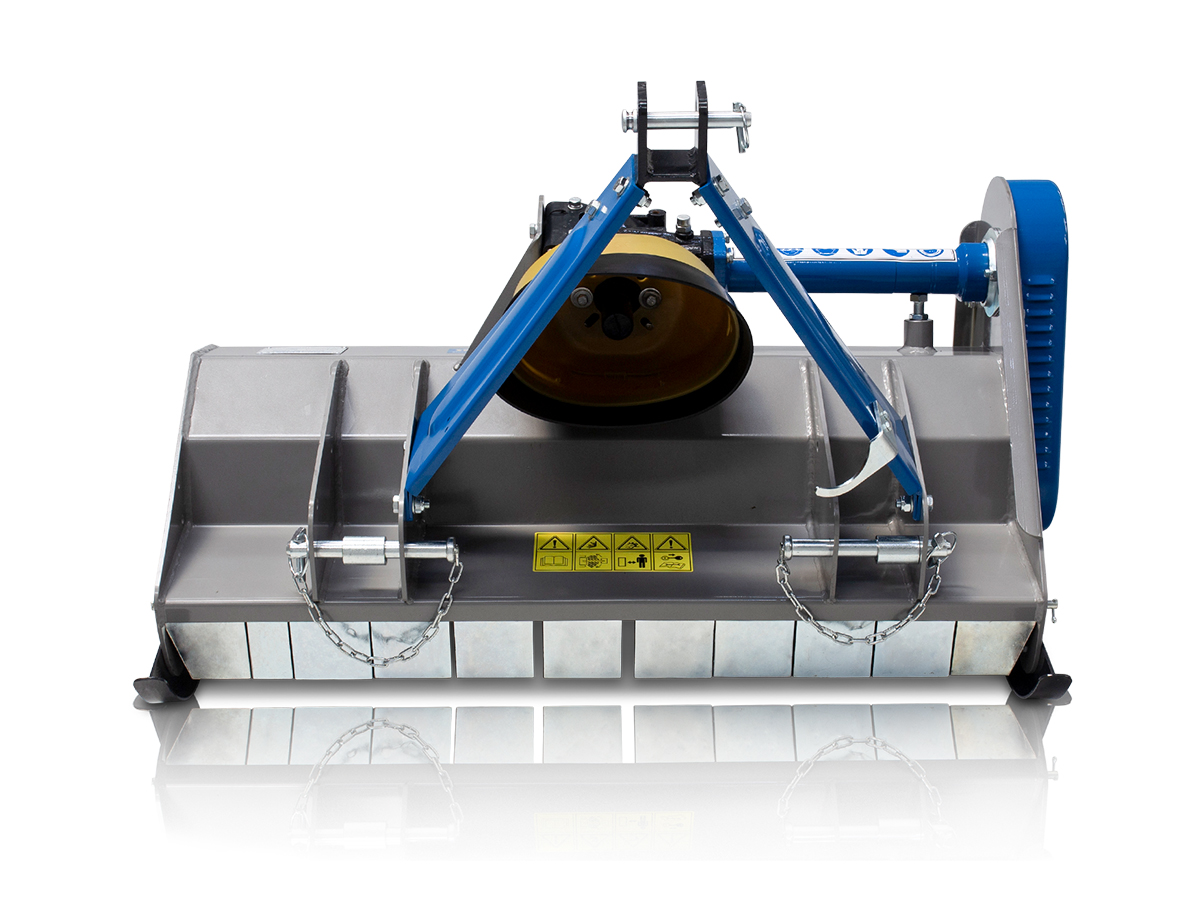

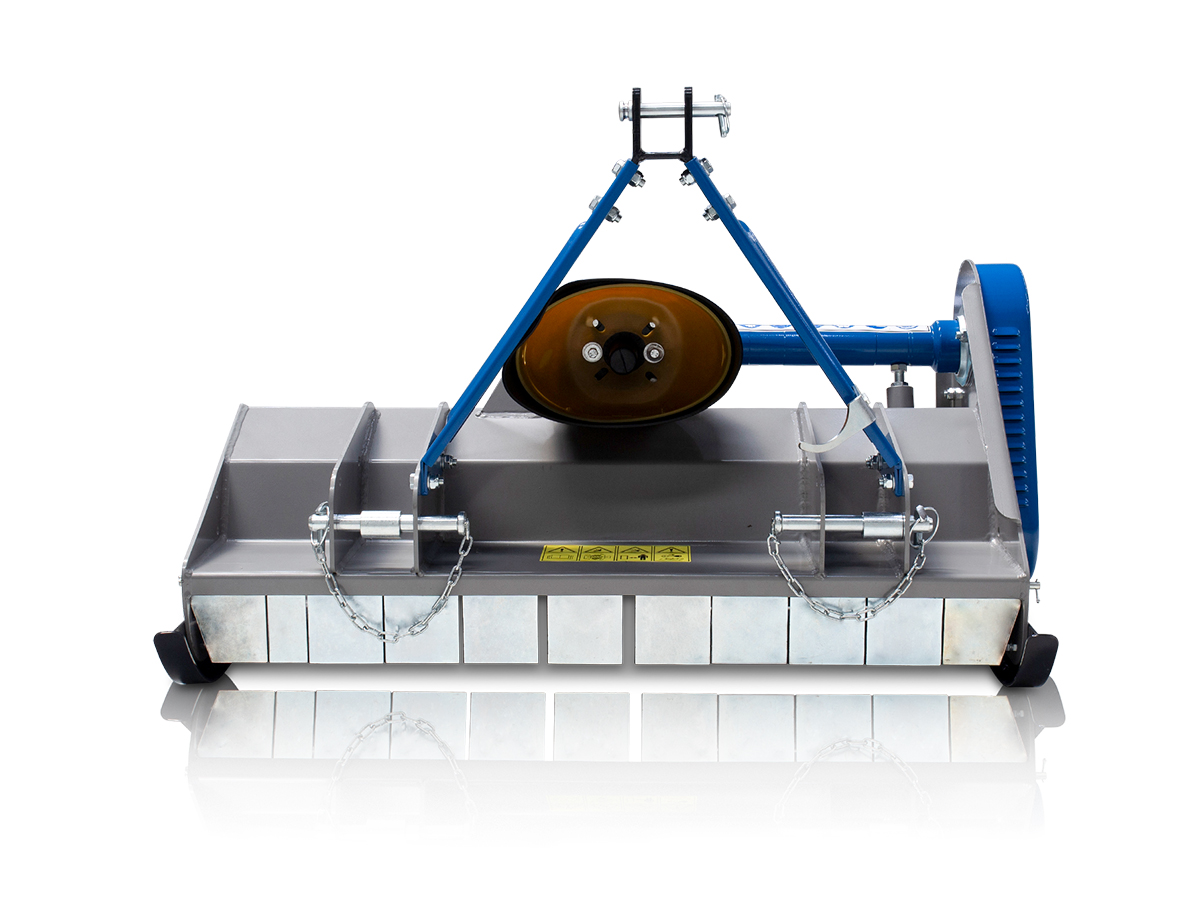

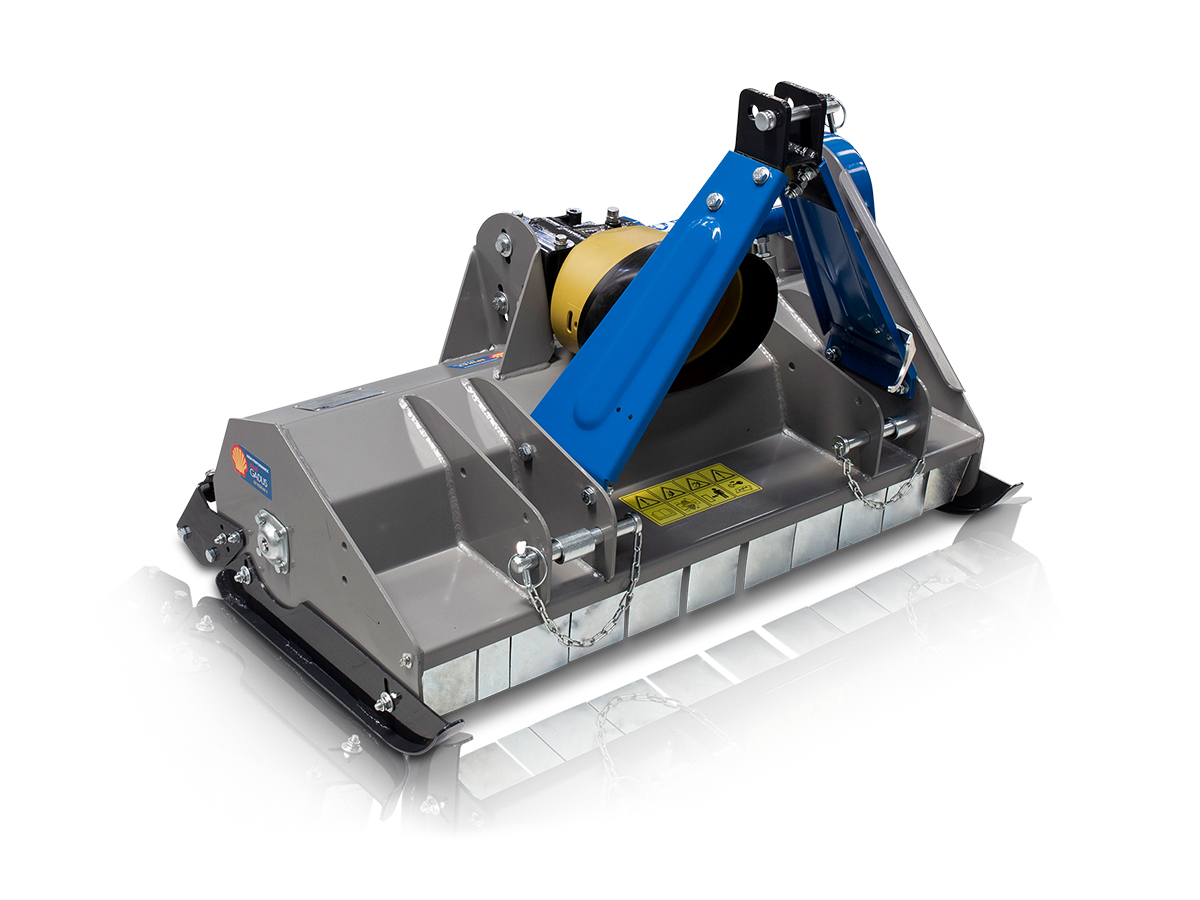

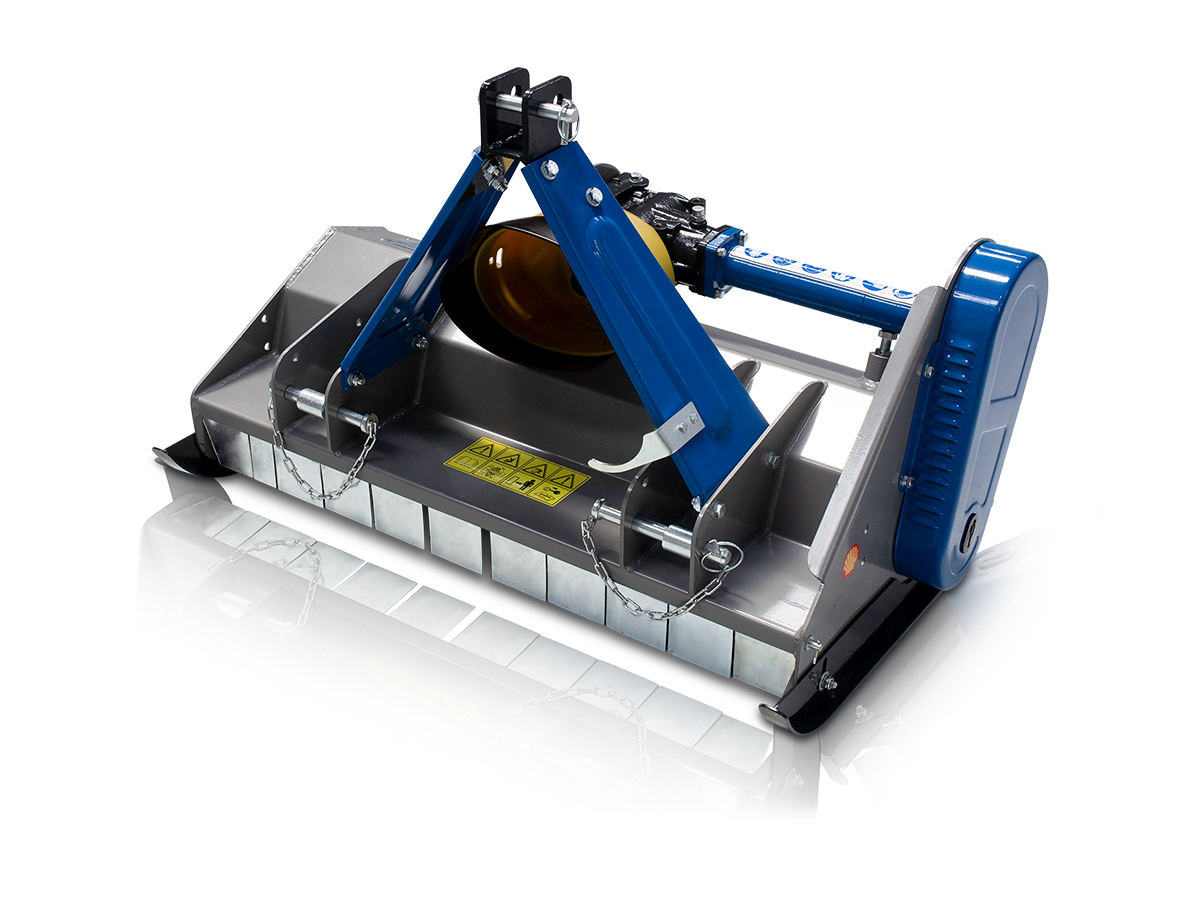

Light-Duty Flail Mower with Hydraulic Offset and Hammers (105 cm) for Small or Japanese Tractors

The EKN flail mower is specifically designed for low horsepower tractors such as Kubota, Iseki, Yanmar, Pasquali (8–30HP) and is ideal for use in gardens, orchards, and small farms.

Unlike flail mowers equipped with Y-blades, the EKN105 is fitted with 500g hardened hammers and a heavy-duty rotor shaft (Ø76mm, 10mm thick), offering high inertia and powerful cutting performance. Even tall grass, shrubs, small branches, and brambles are no challenge for this mower.

The cutting height can be easily adjusted using the rear roller and side skids.

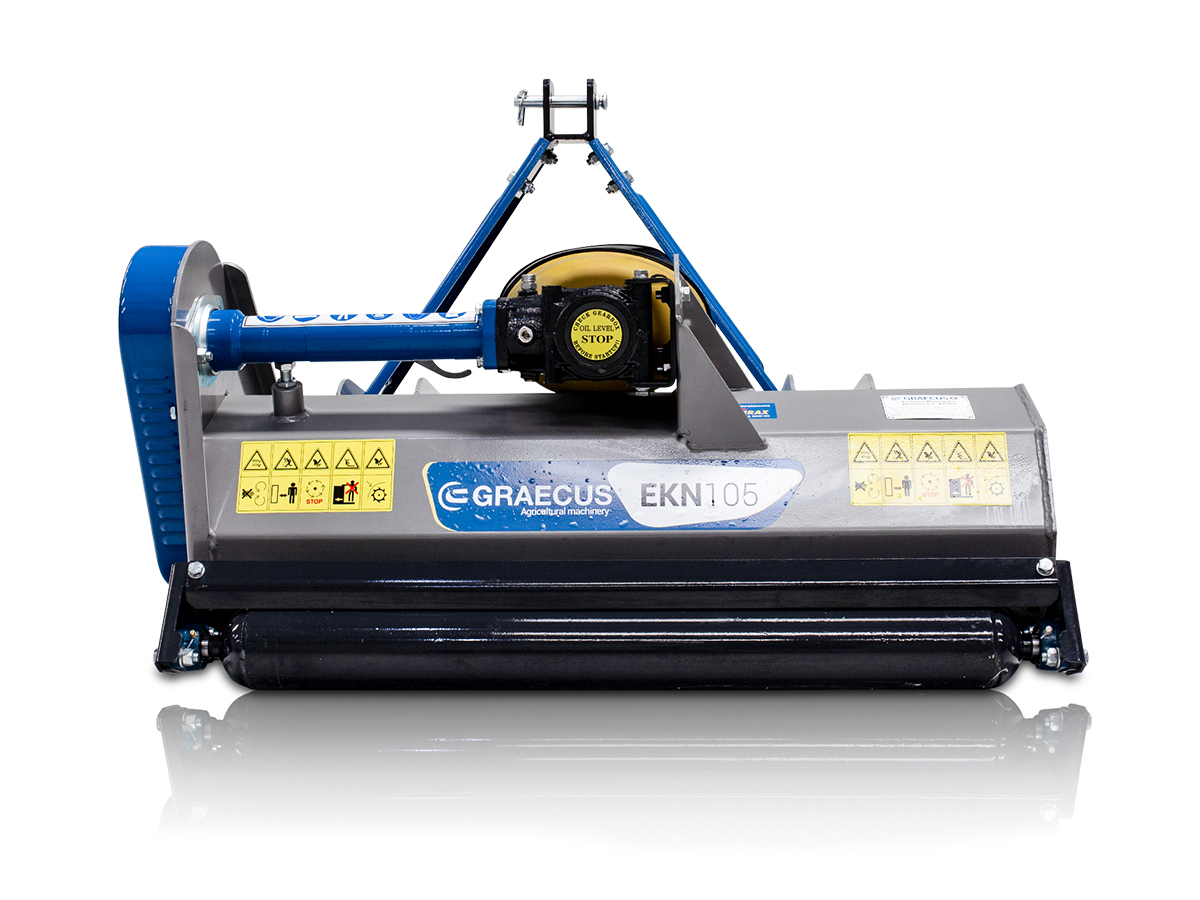

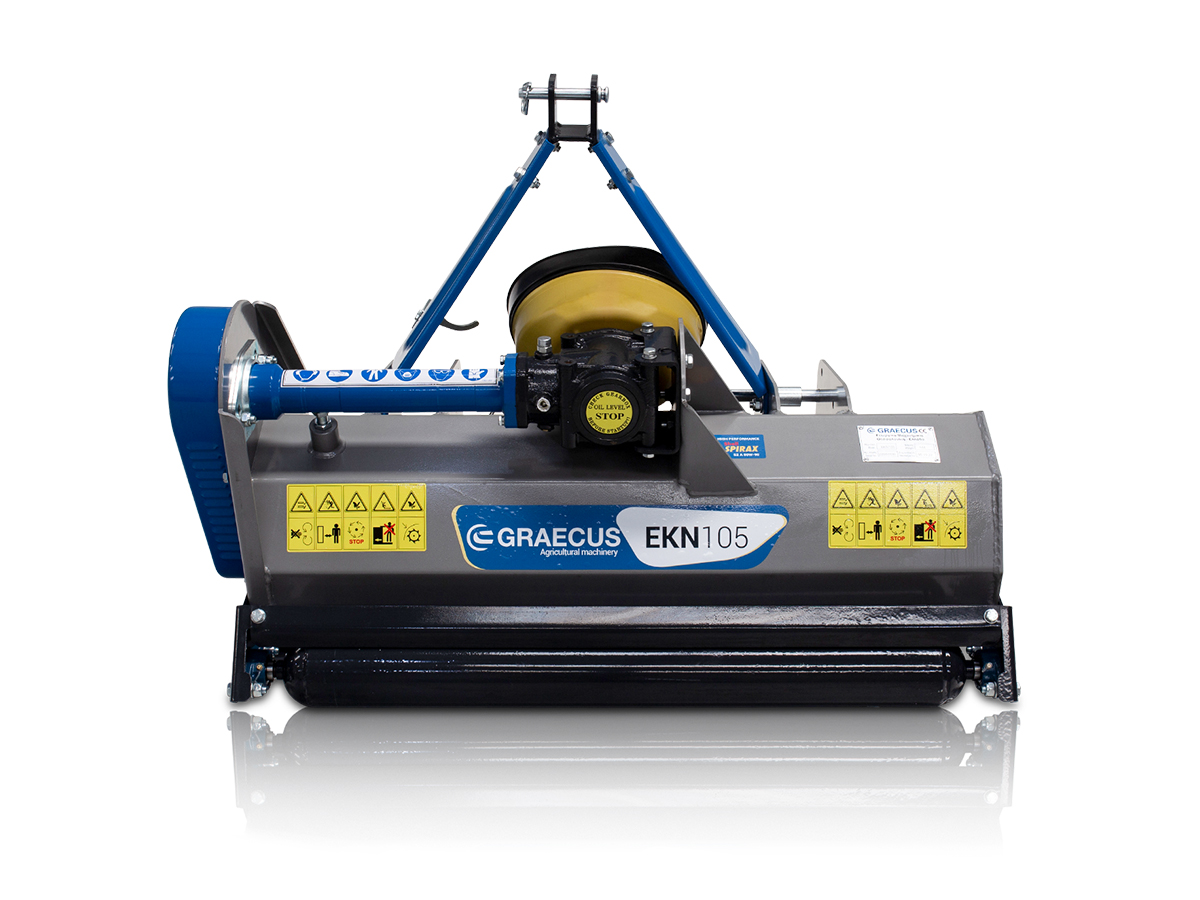

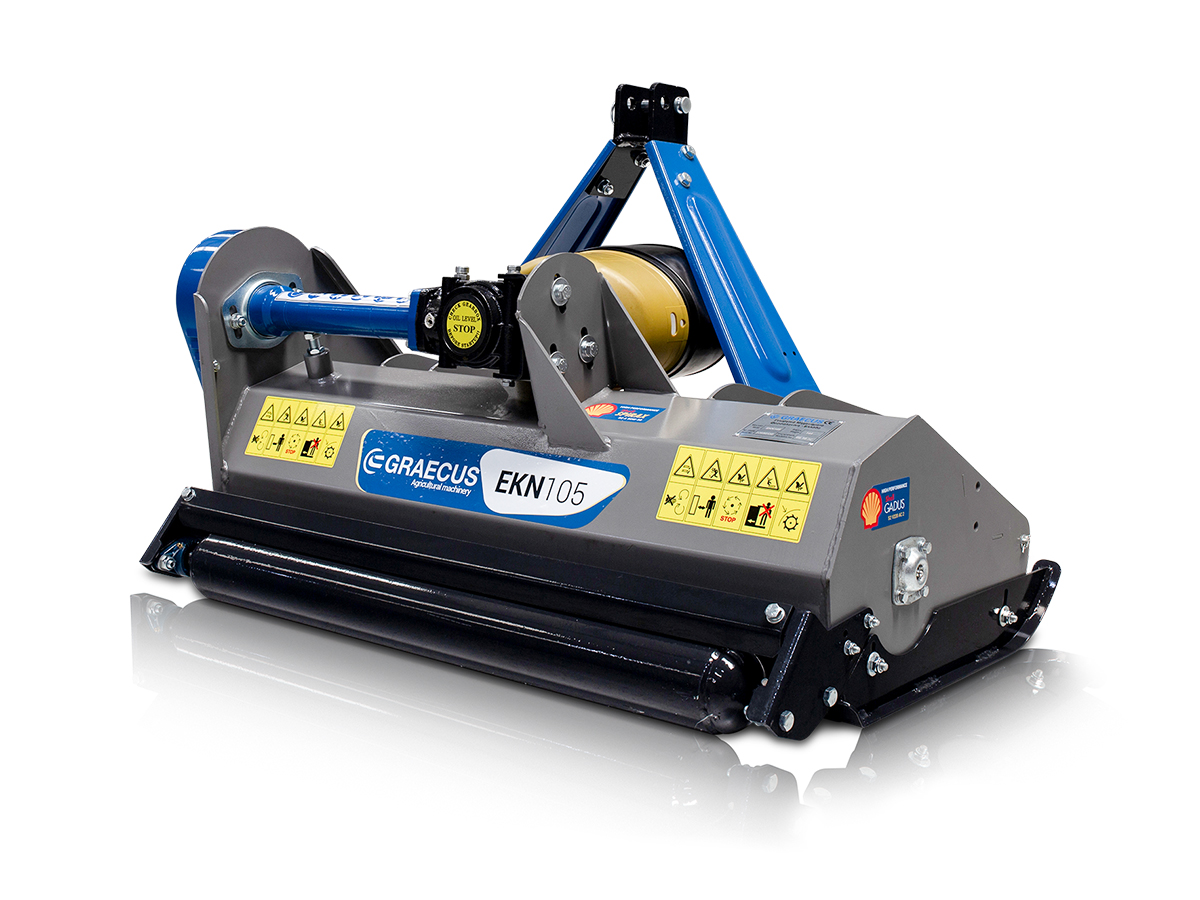

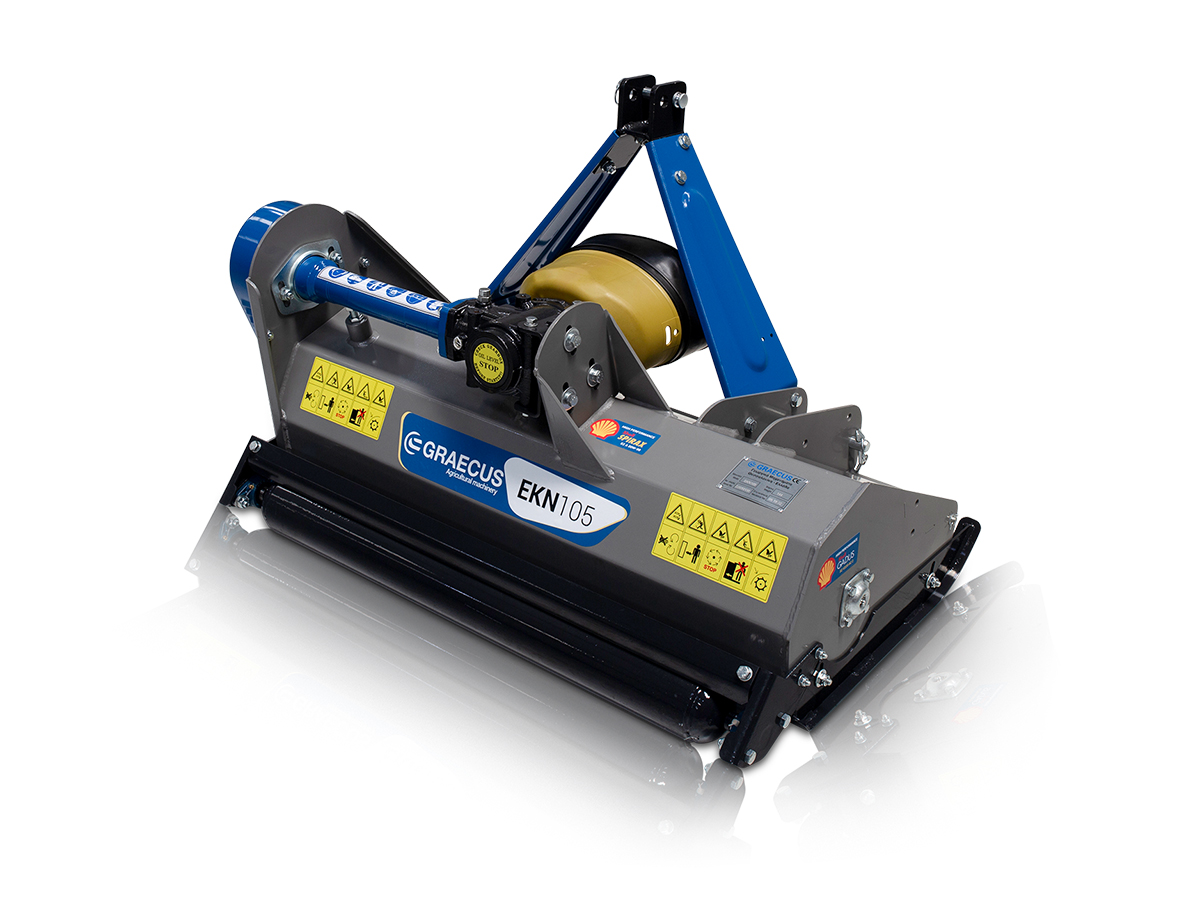

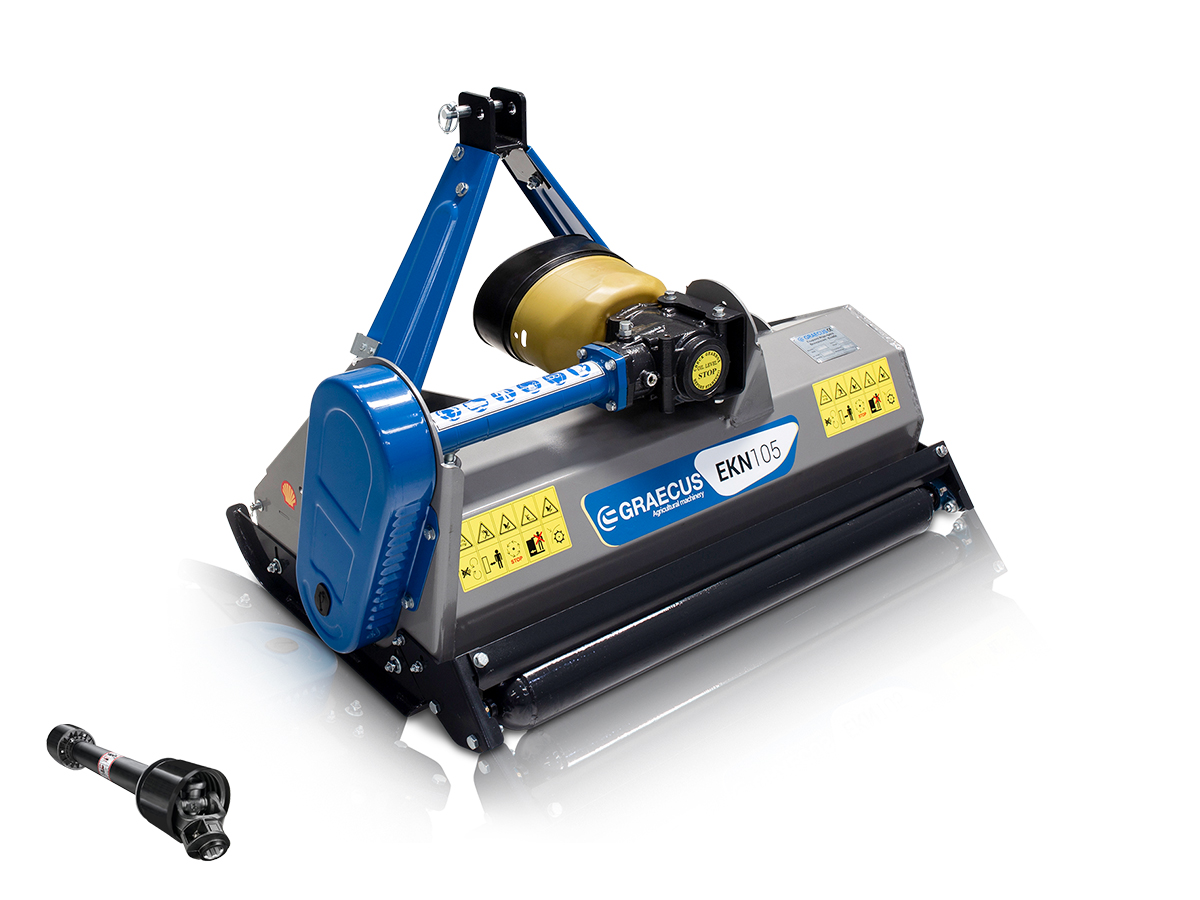

GRAECUS EKN105

Features & Advantages
  • New reinforced light-duty design with 4mm thick body, 6mm sidewalls, and a 76x10mm rotor shaft

  • 500g specially hardened hammers – suitable for grass and branches up to 3cm in diameter

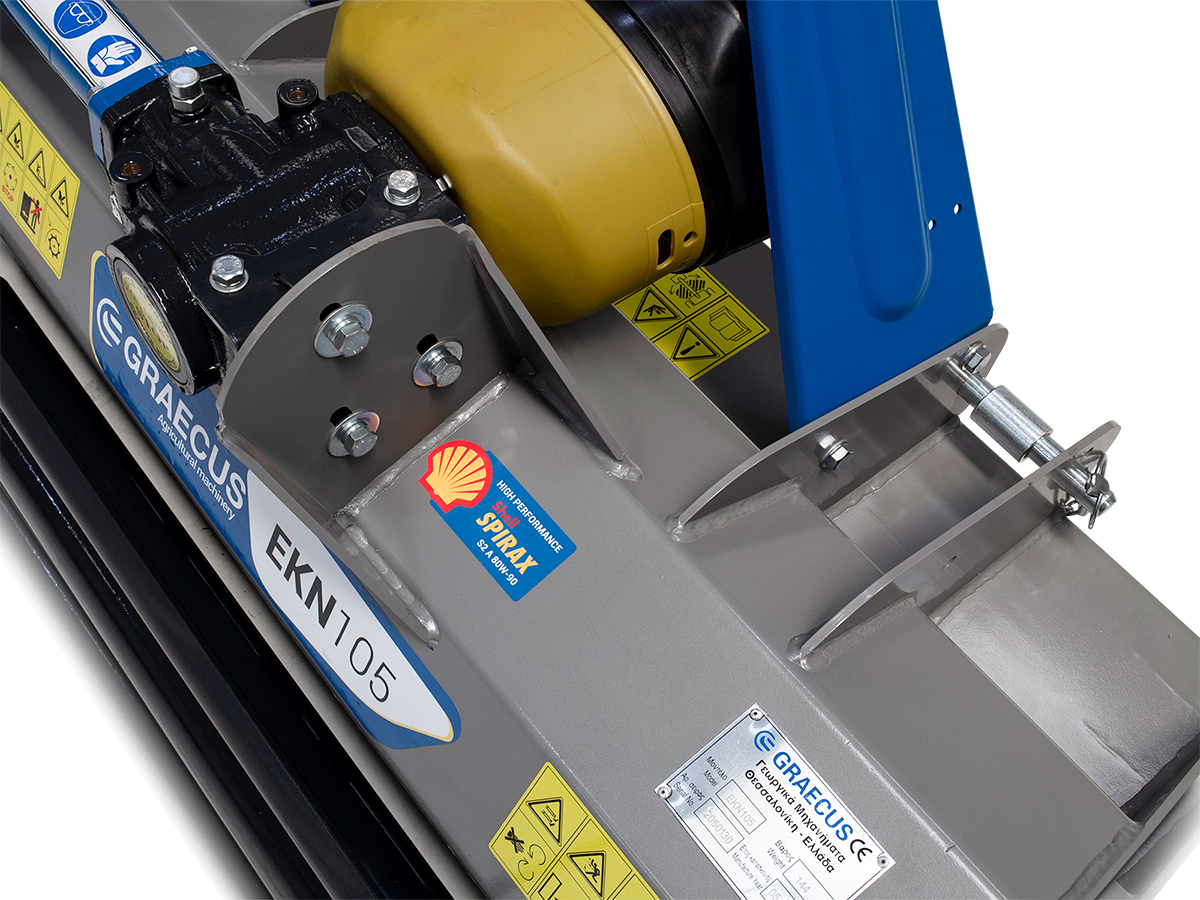

  • Cast iron gear transmission box (540 rpm) with built-in freewheel clutch

  • Long-life bearings

  • Dynamically balanced rotor with hammers or Y-blades

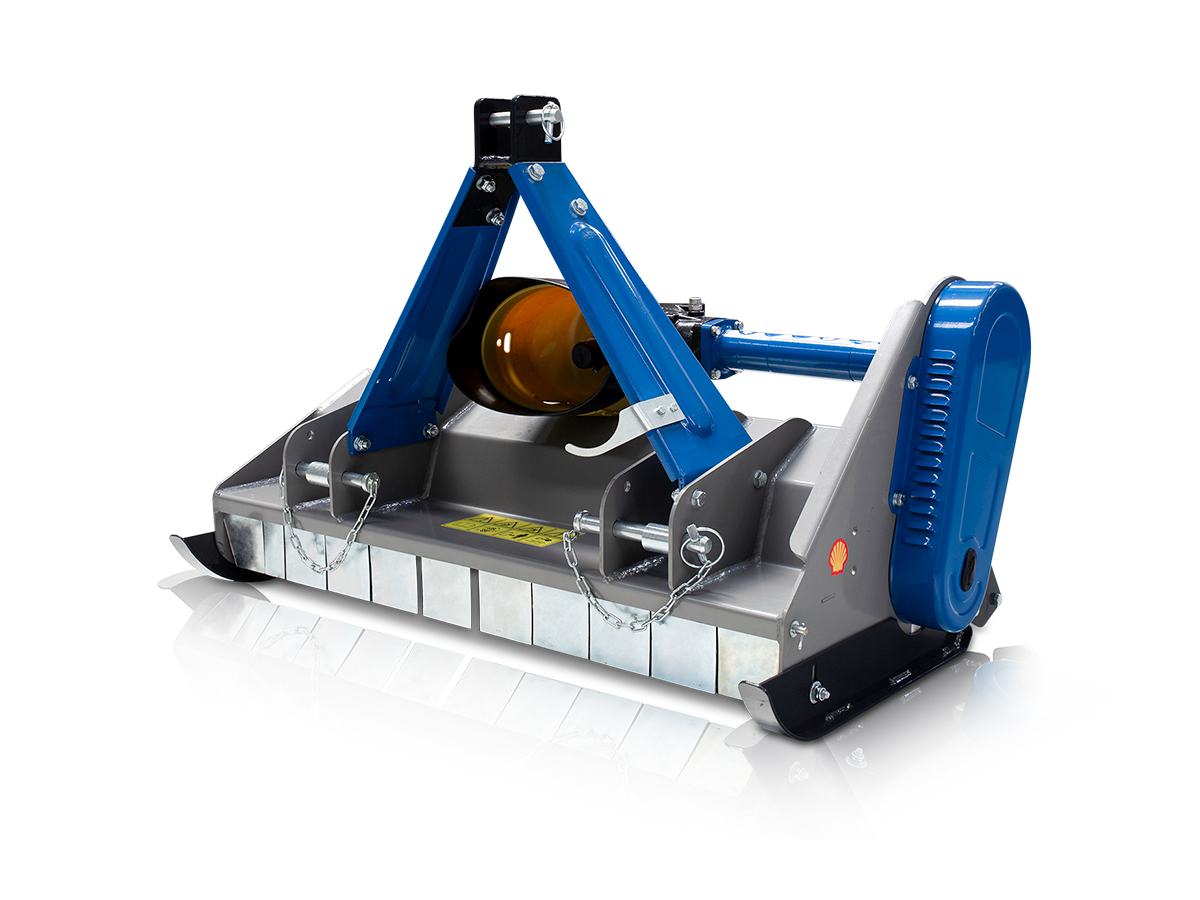

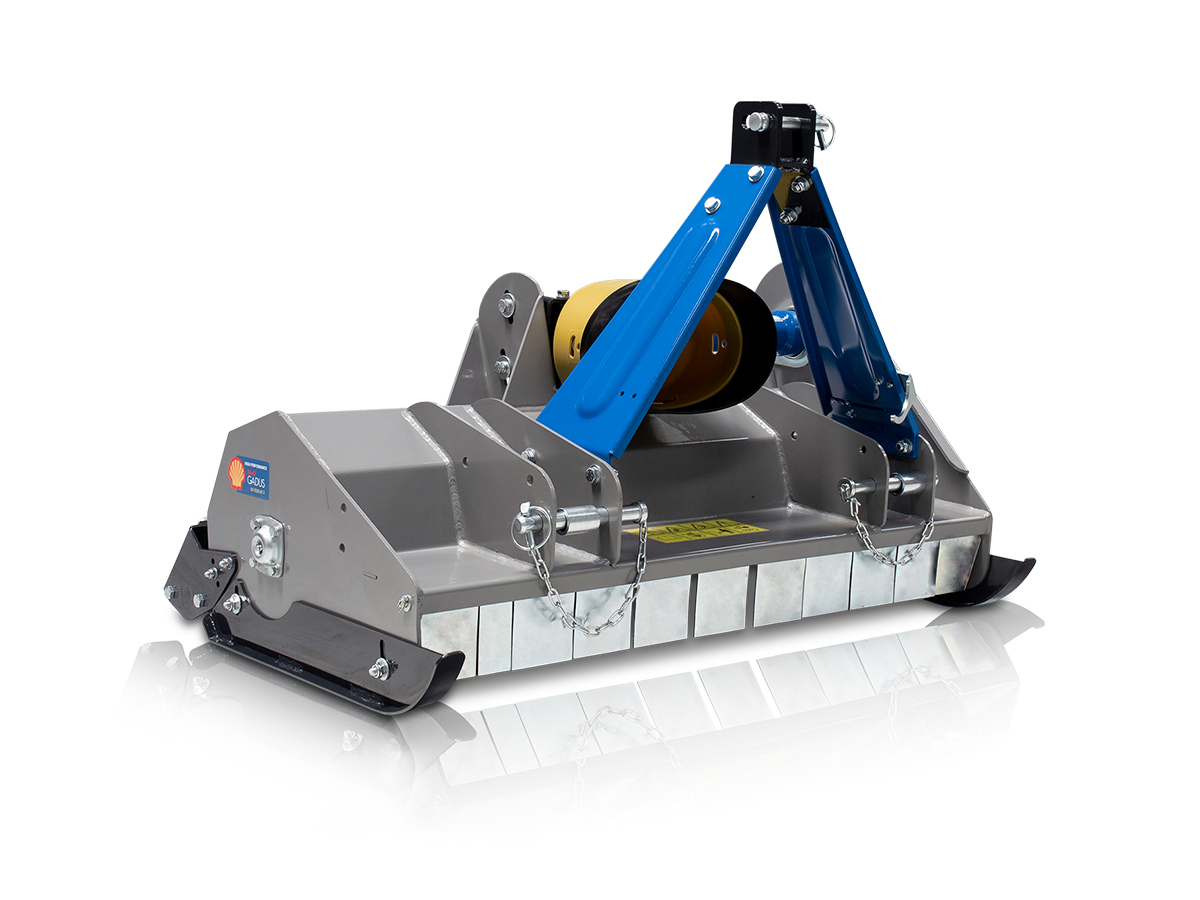

  • Front protective flaps for safety

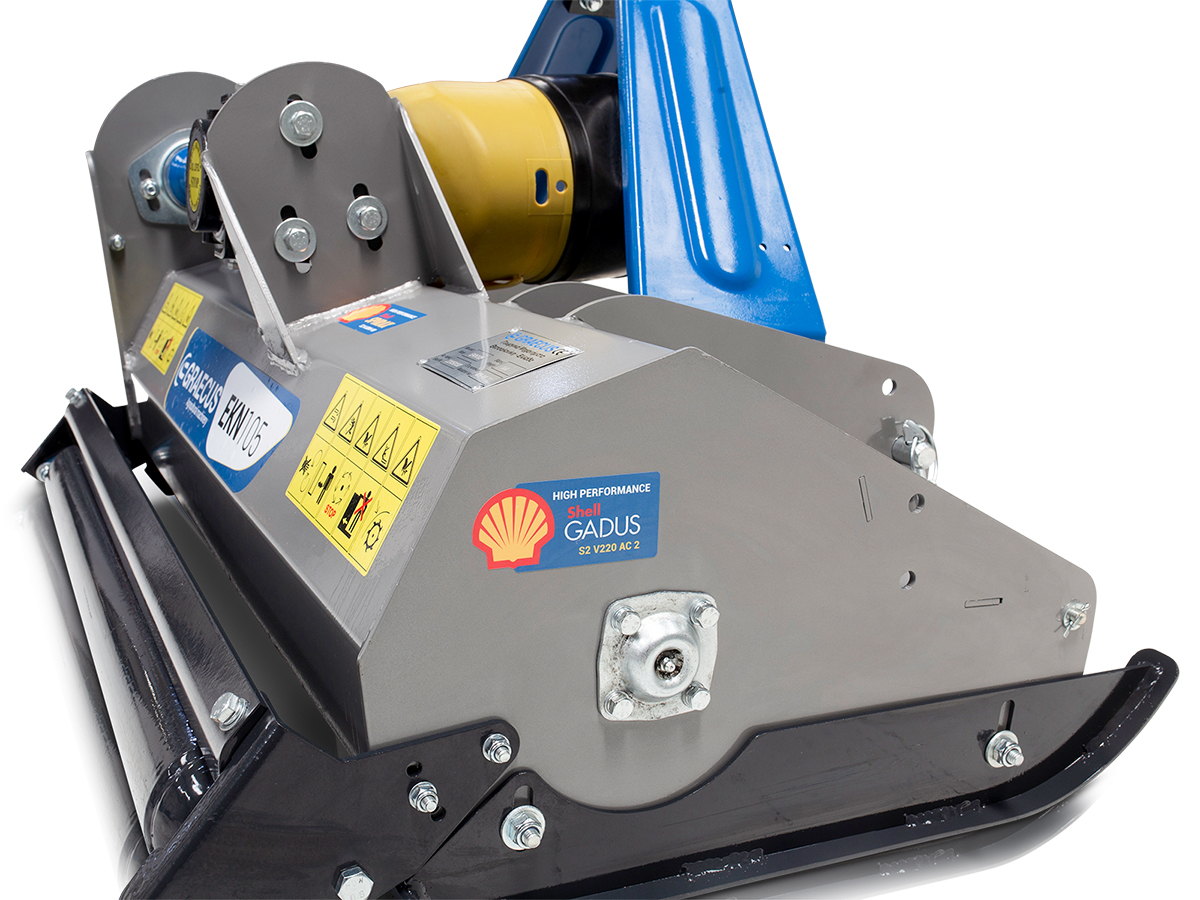

  • Adjustable working height via side skids/sliders

  • Rear roller with built-in scraper, height-adjustable

  • 3 toothed belts with external belt tensioner for transmission

  • Universal 3-point hitch, Cat. I–II (Ø 19.0–22.0mm / 28.0mm)

  • Complies with European CE Safety Certification

Specification Value
Weight 153 kg
Tractor Power 13 – 30 HP
Overall Width 1140 mm
Length 700 mm
Height 750 mm
Working Width 1050 mm
Side Shift Range ← 510/540 mm / → 410/640 mm
Number of Hammers 18 pcs
Number of Blades (optional) 36 pcs
Rotor Shaft Dimensions Ø76 x 10 mm
Transmission Belts 3 pcs

1,220.00

SKU: 007140 Categories: ,
