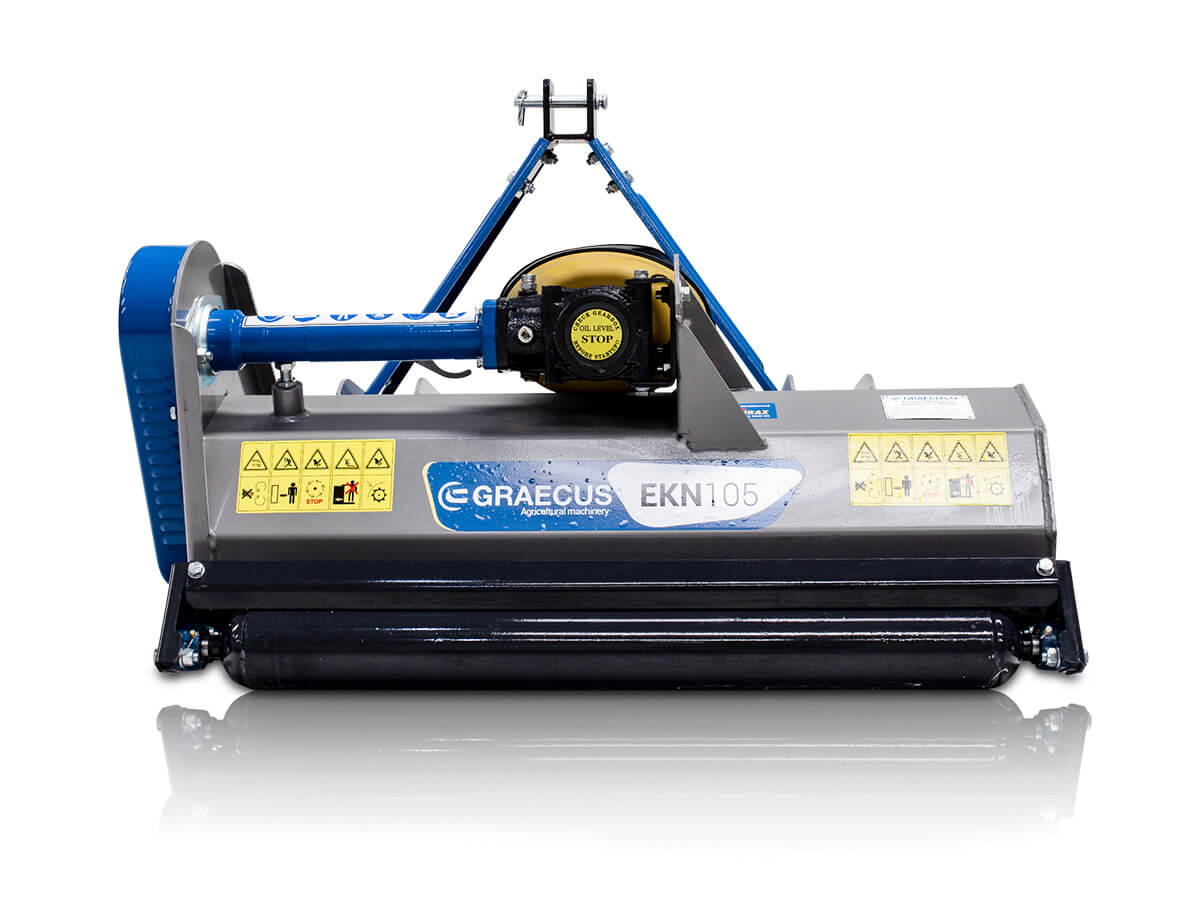

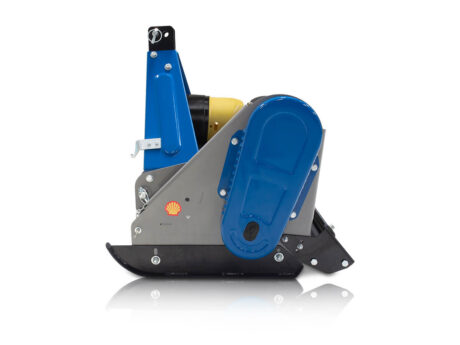

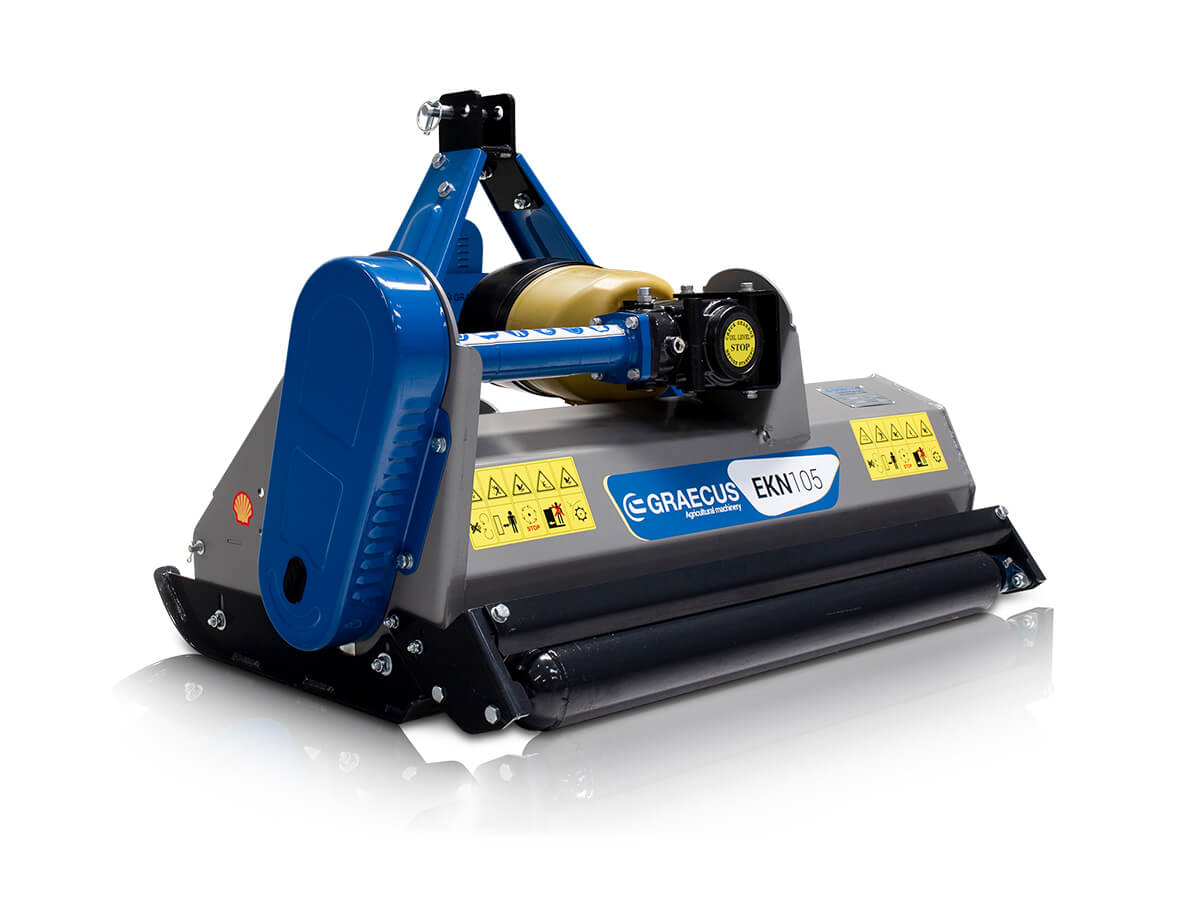

The GRAECUS EKN115 light-duty flail mower is specifically designed for low horsepower compact tractors such as Kubota, Iseki, Yanmar, Pasquali and similar models from 8–30 HP. It is an ideal solution for gardens, small farms, orchards, and property maintenance.

Unlike mowers equipped with Y-blades, the EKN series features heavy-duty 500 g hardened hammers and a reinforced Ø76 mm rotor with 10 mm thickness, creating higher inertia and improved cutting performance. This design allows the mower to easily handle tall grass, weeds, bushes, brambles, and small branches.

The cutting height can be easily adjusted using the rear roller and the side skids, allowing the operator to adapt the machine to different terrains and working conditions.

Built with a reinforced steel body, durable components, and a reliable belt transmission system, the EKN115 ensures efficient performance and long service life even in demanding environments.

The price includes the PTO shaft T4-80 with plastic safety cover.

GRAECUS EKN115

Advantages & Features

  • Reinforced light-duty flail mower with 4 mm body, 6 mm side plates, and 76 × 10 mm rotor

  • Hardened 500 g hammers suitable for grass and branches up to 3 cm diameter

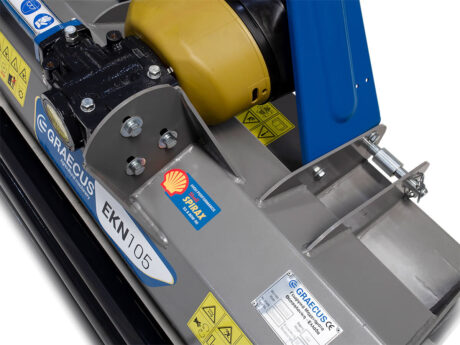

  • Cast iron 540 rpm gearbox with freewheel

  • Long-life heavy-duty bearings

  • Electronically balanced rotor with hammers or optional blades

  • Front safety protection flaps

  • Adjustable working height via side skids

  • Adjustable rear roller with scraper

  • Belt transmission with 3 toothed belts and external tensioner

  • Universal Category I–II three-point linkage

  • CE European safety certification



Specification Value
Weight 168 kg
Tractor Power 15 – 30 HP
Machine Width 1240 mm
Length 700 mm
Height 750 mm
Working Width 1150 mm
Hydraulic Side Shift 510 / 640 mm (left) – 410 / 740 mm (right)
Hammers 21 pcs
Blades (optional) 42 pcs
Rotor 76 × 10 mm
Drive Belts 3 pcs
PTO Speed 540 rpm

1.350,00
