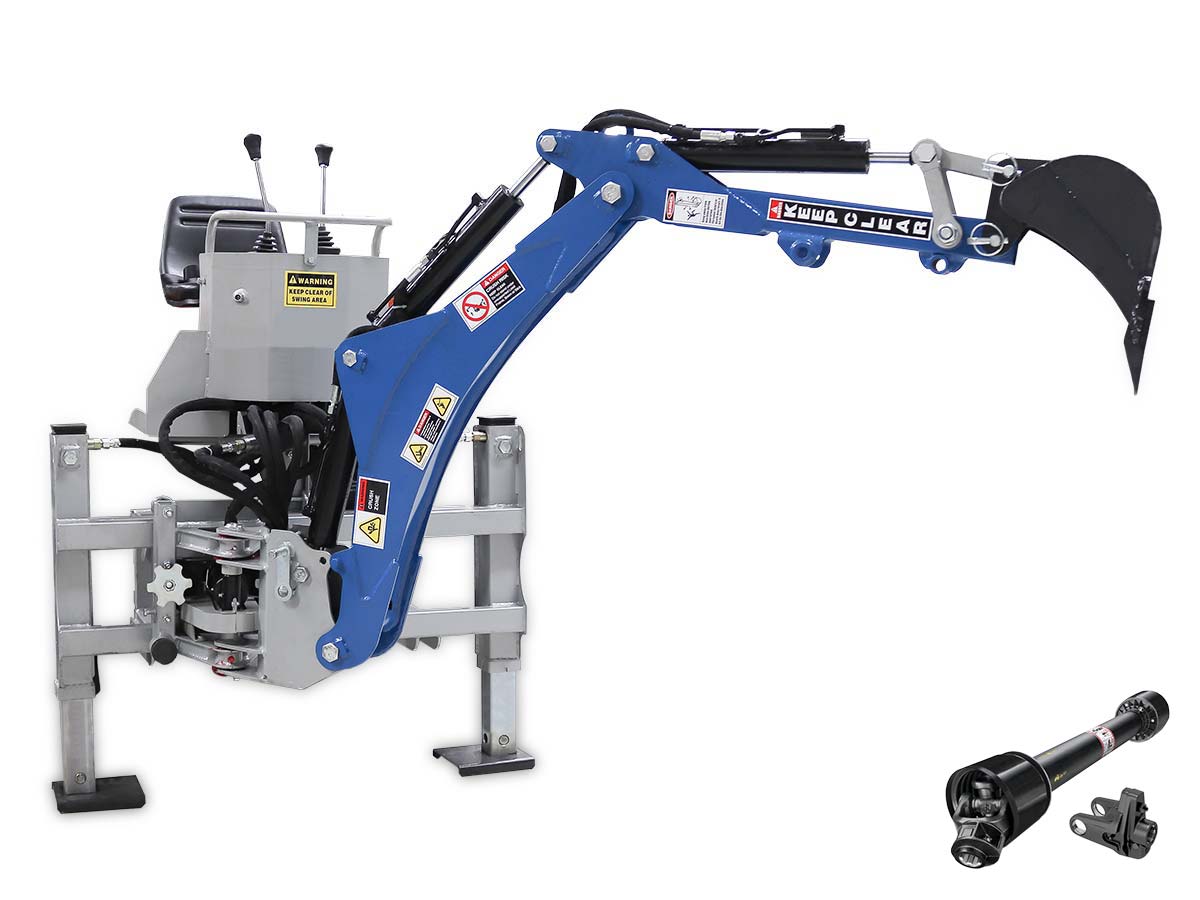

he HADES TA250 PRO is a professional tractor-mounted backhoe designed for efficient excavation and digging tasks in agricultural and construction environments. It features a robust independent hydraulic system and mechanical boom shift for improved flexibility and operating range.

The package includes a complete digging setup with an excavator bucket, making it a ready-to-use solution for demanding earthmoving applications.

PACKAGE INCLUDES
  • 1 × HADES TA250 PRO backhoe unit with independent hydraulic pump
  • 1 × BTAM30 excavation bucket
  • PTO shaft T4-60 with protective cover and safety bolt
KEY FEATURES
  • Independent hydraulic system with oil tank and pump
  • Mechanical boom shift (700 mm) with locking system
  • Two hydraulic stabiliser legs for maximum stability
  • 180° boom rotation capability
  • Bucket opening angle up to 203°
  • Heavy-duty reinforced construction at all stress points
  • High-strength hardened steel articulation joints
  • Dual-lever control system (4-direction operation)
  • Operator seat with safety belt
  • Boom lock system for safe transport
  • Compatible with Category I–II three-point linkage
  • CE certified for European safety standards

HADES TA250 PRO TRACTOR BACKHOE WITH MECHANICAL BOOM SHIFT

TECHNICAL SPECIFICATIONS
Specification Value
Product Name HADES TA250 PRO Backhoe
Weight 308 kg
Tractor Power Requirement 15 – 45 HP
Boom Rotation 180°
Bucket Opening Angle Up to 203°
Digging Force (Bucket) 312 kg
Mechanical Side Shift 700 mm
Category 3-point linkage Cat. I–II

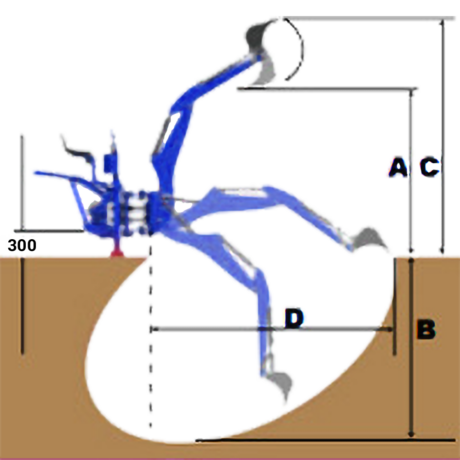

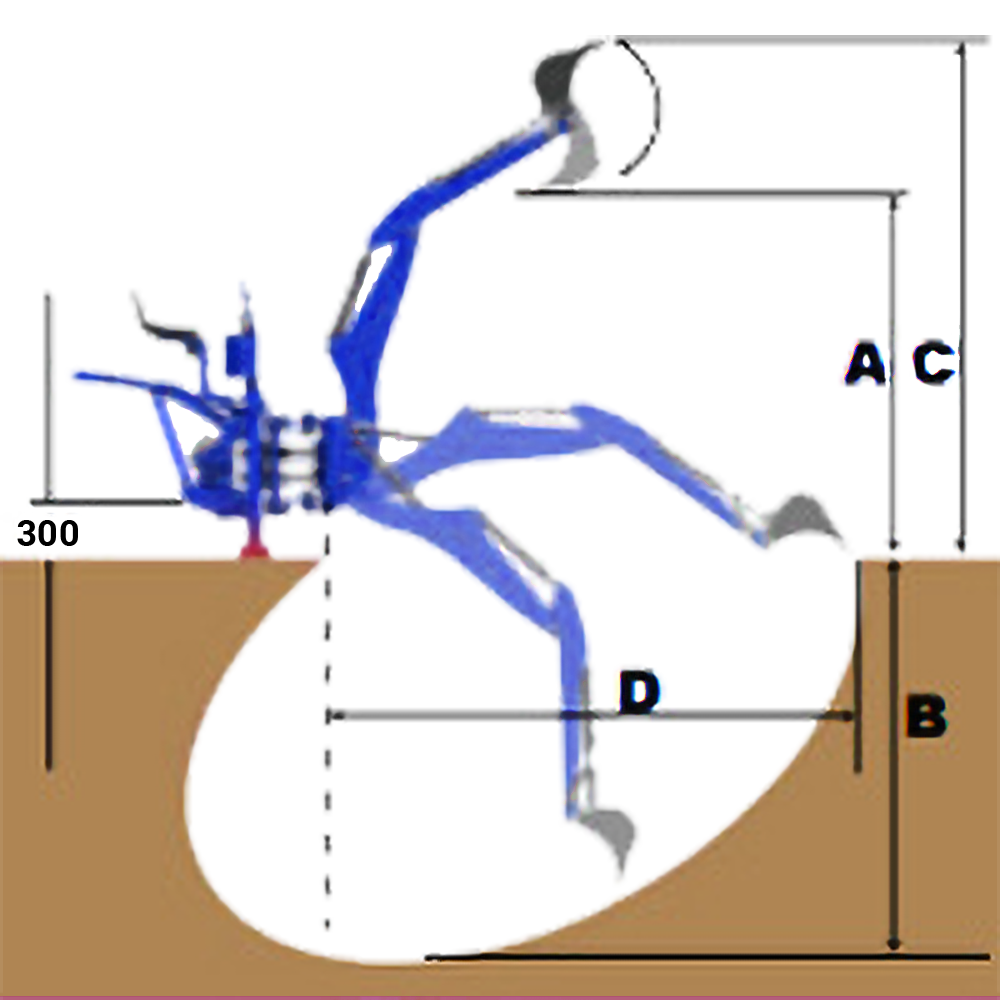

DIMENSIONS

Dimension Value
A 1690 mm
B 950 mm
C 2280 mm
D 2440 mm
APPLICATIONS

Suitable for:

  • Agricultural excavation work
  • Drainage and irrigation projects
  • Landscaping and garden construction
  • Small construction sites
  • Vineyard and orchard infrastructure work

 4.284,00
