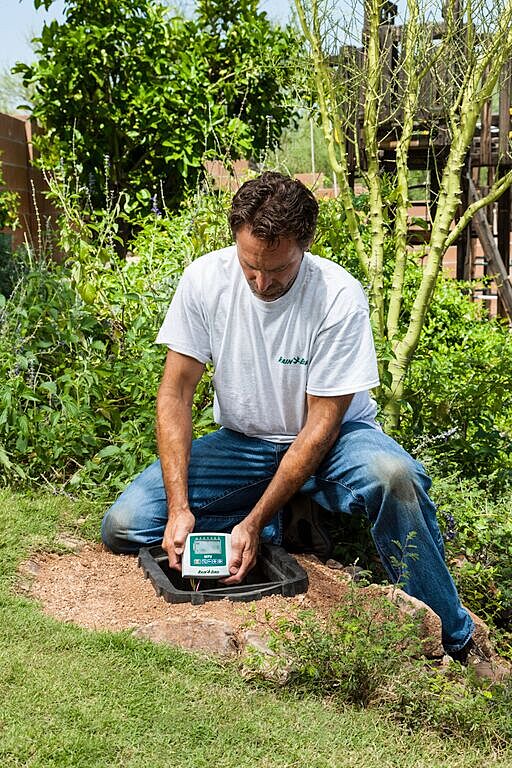

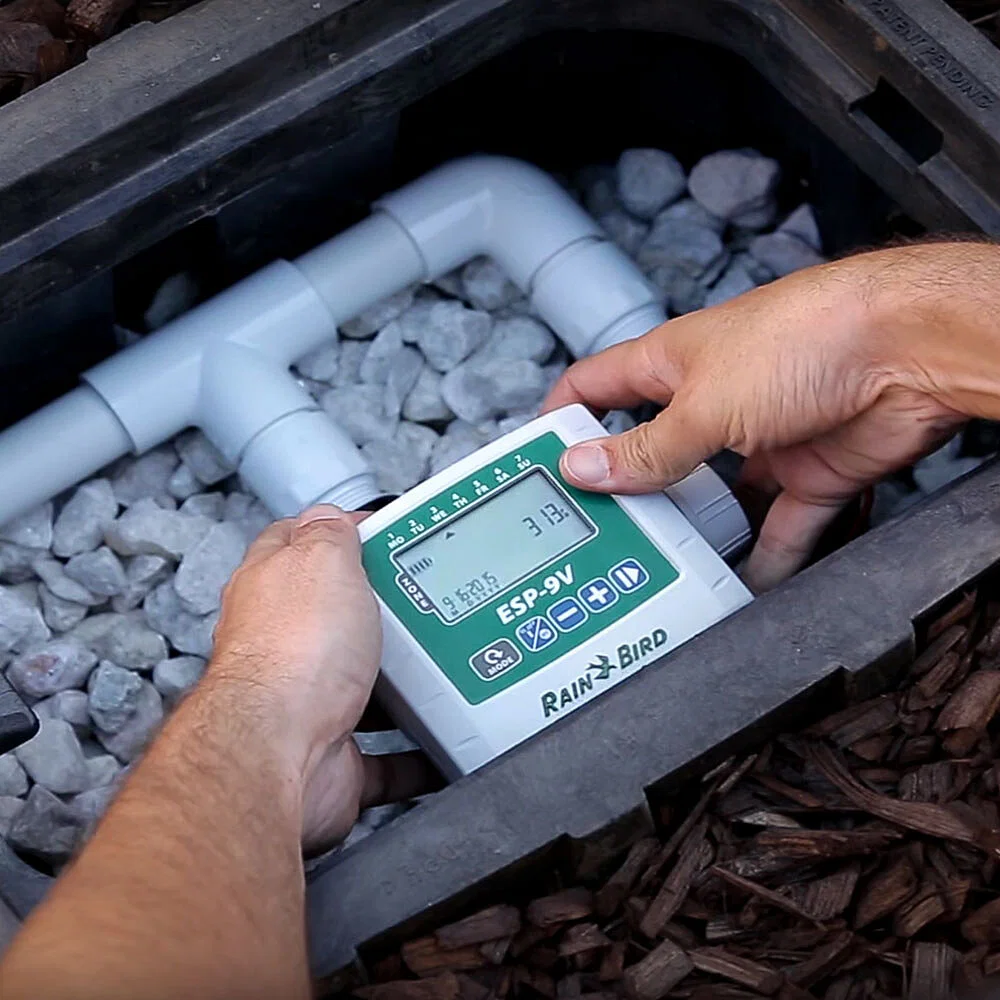

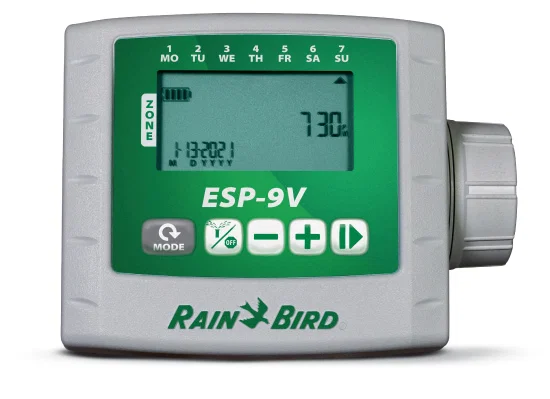

The Rain Bird ESP-9V is a rugged and fully waterproof 4-station irrigation controller, designed for reliable operation even in the most demanding outdoor conditions. Its waterproof construction makes it suitable for installation inside a valve box, providing protection against water, dust, dirt, and humidity.
The large LCD display and intuitive user interface make programming quick and easy. The controller provides 6 start times per zone, while run times, start times, and watering days can be customized independently for each zone.
The ESP-9V operates for at least two full years with two 9-volt alkaline batteries, or a minimum of one year with one 9-volt alkaline battery. Its non-volatile 100-year program memory preserves programmed schedules even when the batteries are depleted or replaced.
The Automatic Zone Stacking function ensures that only one valve operates at a time, while Contractor Rapid Programming™ allows the start times and watering days from Zone 1 to be automatically copied to all remaining zones during initial setup.
KEY FEATURES
- 4 irrigation stations / zones
- Waterproof construction suitable for installation inside a valve box.
- IP68 protection against dust and water intrusion.
- Large LCD display with an easy-to-navigate user interface.
- Operates with 2 × 9V alkaline batteries for at least 2 years.
- Can operate with 1 × 9V alkaline battery for at least 1 year.
- Non-volatile 100-year program memory.
- Sensor input with bypass override.
- Master valve / pump-start circuit for multi-zone units.
- Dedicated one-touch manual watering button.
- Automatic zone stacking, ensuring that only one valve irrigates at a time.
- If multiple zones are scheduled to operate simultaneously, the controller automatically irrigates the lower-numbered zone first.
- Contractor Rapid Programming™ for quick initial setup.
- Routine schedules can be created in 3 simple steps.
- Customizable run times, start times, and watering days for each zone.
- 6 start times per zone.
- 4 watering day options per zone:
- Custom days of the week
- Cyclic
- ODD calendar days
- EVEN calendar days
- Delay watering: 1 to 9 days.
- Durable plastic housing with excellent resistance to weather, yellowing, and aging.
- Dual-sealed battery chamber protecting against dust, dirt, and water.
